With the advent of self loading concrete mixers, the concrete production process has been greatly simplified. However, precise batching according to different construction requirements remains a critical factor in ensuring concrete quality. The SeeZol Self Loading Concrete Mixer Batching and Weighing System enables accurate measurement of various raw materials, significantly enhancing the efficiency and quality of concrete production.

Core Advantages

Intelligent Control

·Intuitive operation interface: Simply select modes on the screen, and the system responds in real time.

Precision Weighing

·Utilizes advanced algorithms combined with compensation algorithms for temperature, speed, and angle to easily handle complex environments, with errors less than 1%.

Material Management

·The system supports multiple material types (e.g., cement, sand/gravel, water) and automatically adjusts weighing algorithms for different materials.

Recipe Management

·Supports multiple batching modes and can preset various mixing ratios to adapt to diverse production needs.

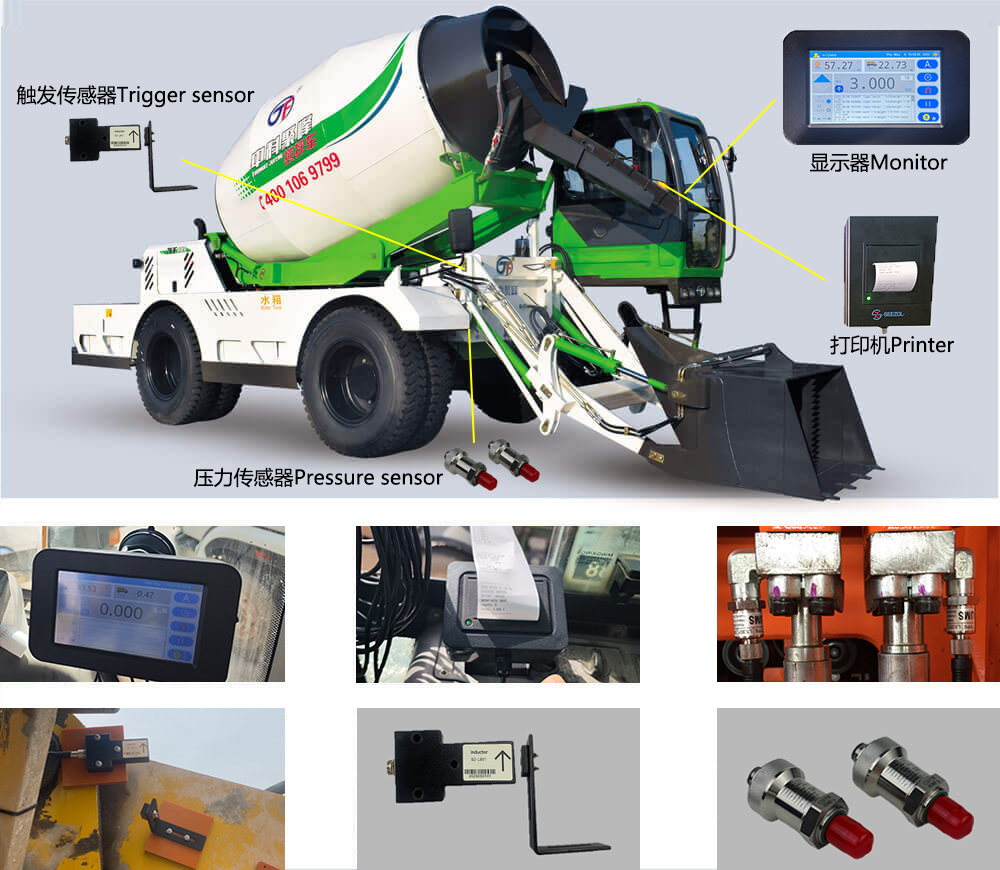

System Composition

Weighing Sensors

·SeeZol weighing sensors use hydraulic pressure sensors installed on the inlet and return oil pipes of the hopper lifting hydraulic tubing.
·Features: Wide measurement range, high precision, strong stability. Capable of handling both large quantities of sand/gravel and small doses of admixtures.
·IP67 protection rating ensures adaptability to various complex construction environments. Combined with precision algorithms, comprehensive error is controlled within 1%.

Trigger Sensors

·SeeZol trigger sensors employ magnetic proximity switches installed at the rotating fulcrum of the hopper arm.
·Features: Strong anti-interference capability, stable dynamic performance, fast response speed, and high positioning accuracy.
·Suitable for complex working environments of mixer trucks (e.g., high temperature, humidity, day/night cycles, dust). Insensitive to target object movement speed, with signal processing time typically in the microsecond-to-millisecond range and trigger position repeatability error ≤±0.1mm.

Signal Processing Module

·SeeZol’s advanced signal processing module enables human-machine interaction, allowing operators to easily input and modify batching recipes while monitoring real-time data during batching.
·Precision algorithms integrate temperature, speed, and vibration compensation to reduce the impact of environmental temperature, lifting speed, and vehicle movement/tank rotation on accuracy, with linear correction of data.

Display Terminal

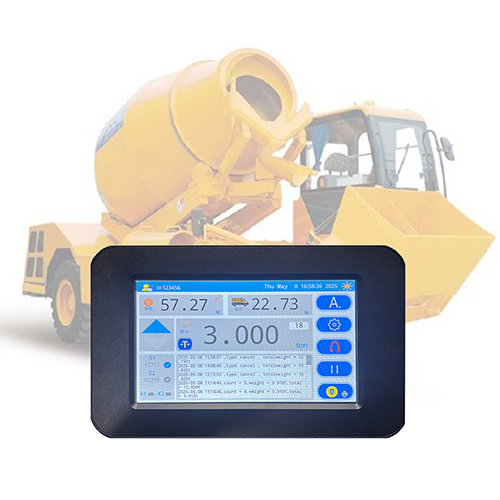

·Features a 7-inch color LCD screen for intuitive human-machine interaction.
·Operators can view real-time weights, cumulative weights, batching progress, and system status. Recipe settings and modifications can be easily completed via the terminal.
·Supports remote monitoring: Users can monitor batching status anytime, anywhere via mobile phones or computers, greatly improving production management convenience.

Working Principle

The working principle of the self loading concrete mixer batching and weighing system is based on the conversion of force to electrical signals. When materials enter the weighing hopper via the feeding device, changes in gravitational force cause corresponding changes in the electrical signals output by the sensors. These signals are amplified and transmitted to the controller.

The controller pre-stores concrete batching recipes set by users, specifying the mixing ratios and target weights for various materials. Upon receiving signals from the weighing sensors, the controller compares real-time material weights with preset target weights. When the material weight approaches or reaches the target weight, the controller alerts and stops feeding to ensure the added quantity precisely matches the preset value.

During the entire batching process, the system sequentially weighs and batches each material. It also automatically records relevant data (e.g., actual usage of each material, batching time) for subsequent query and quality traceability.

System Parameters

·Power Supply: 12–36V
·Measurement Range: Covers the maximum hopper capacity
·Accuracy: Static error ≤±0.5%, dynamic error ≤±1%
·Protection Rating: IP67
·Response Time: ≤50ms
·Compatibility: Supports multiple signal outputs (e.g., 4–20mA, RS485, CAN bus)
