SZ-FW01 Forklift On-Board Weighing System
Product Overview
The SeeZol Forklift On-Board Weighing System, also called a forklift electronic scale, is an electronic device installed on the forklift to calculate the weight of handled material. It provides various loading information—such as the single-lift value and cumulative value of the weighed material—and displays it, printing a list while loading and dynamically, synchronously reflecting the loading volume.
It helps customers complete weighing operations quickly and at low cost, accurately loading and unloading, preventing overloading, and improving work efficiency. Widely used in factories, mines, railways, ports, and other bulk-cargo handling operations, it turns any standard forklift into a mobile weighing station.
Applicable Models
Compatible with counterbalance forklifts with a rated lifting capacity of 1-10 tons, and compatible with fully free mast and two-stage/three-stage mast structures.
Key Features
- Single-lift net weight measurement
- Cumulative weight & total lift count
- Real-time overload warning
- On-board ticket / receipt printing
- Dynamic weighing—no need to stop or stabilize
System Parameters
- Range: 0 ~ 10 t (custom above 10 t)
- System error: ±1%
- Display error: ±3%
- Mode: Dynamic weighing
- Protection level: IP65
- Working temperature: -20℃ ~ +70℃
- Working voltage: DC 9–36V

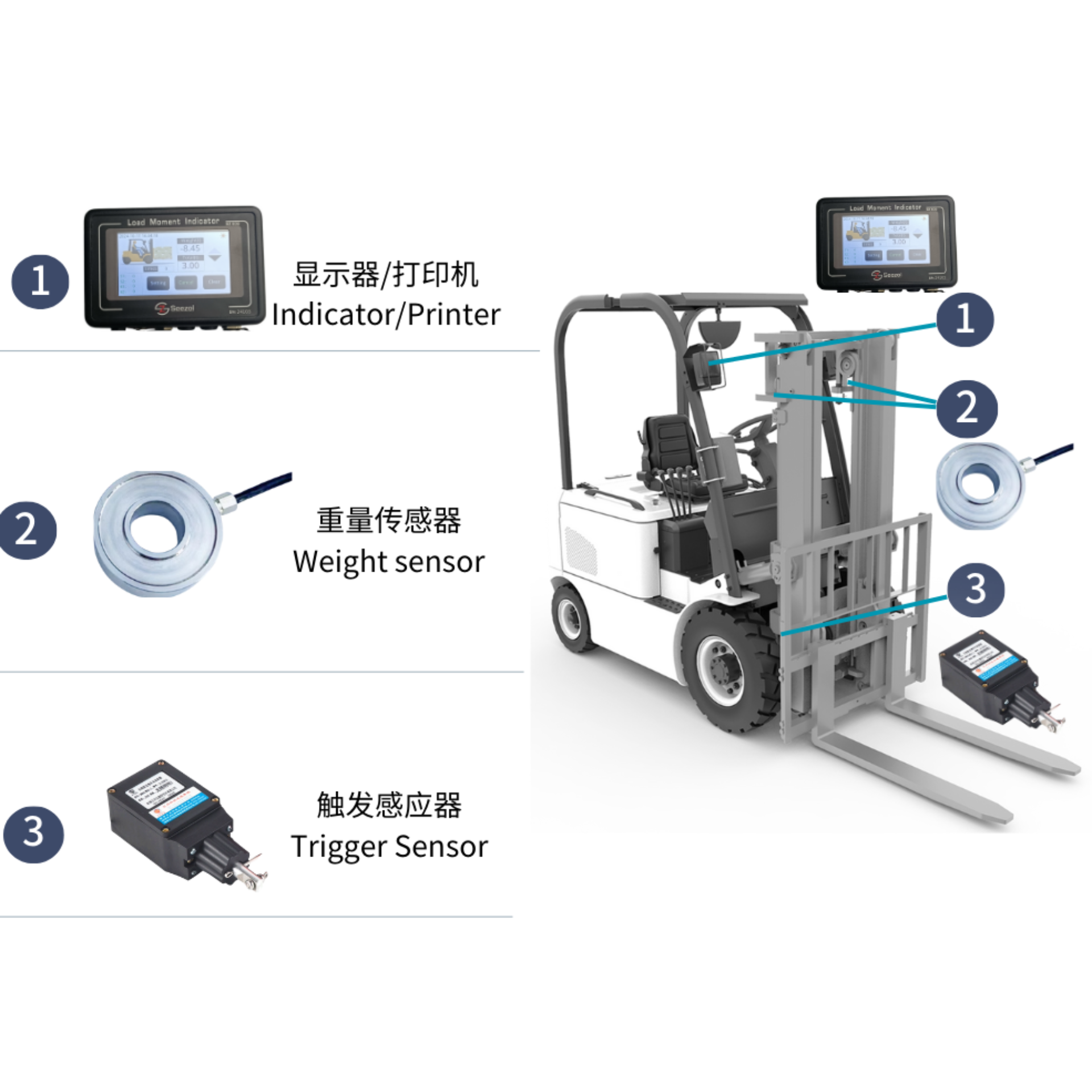

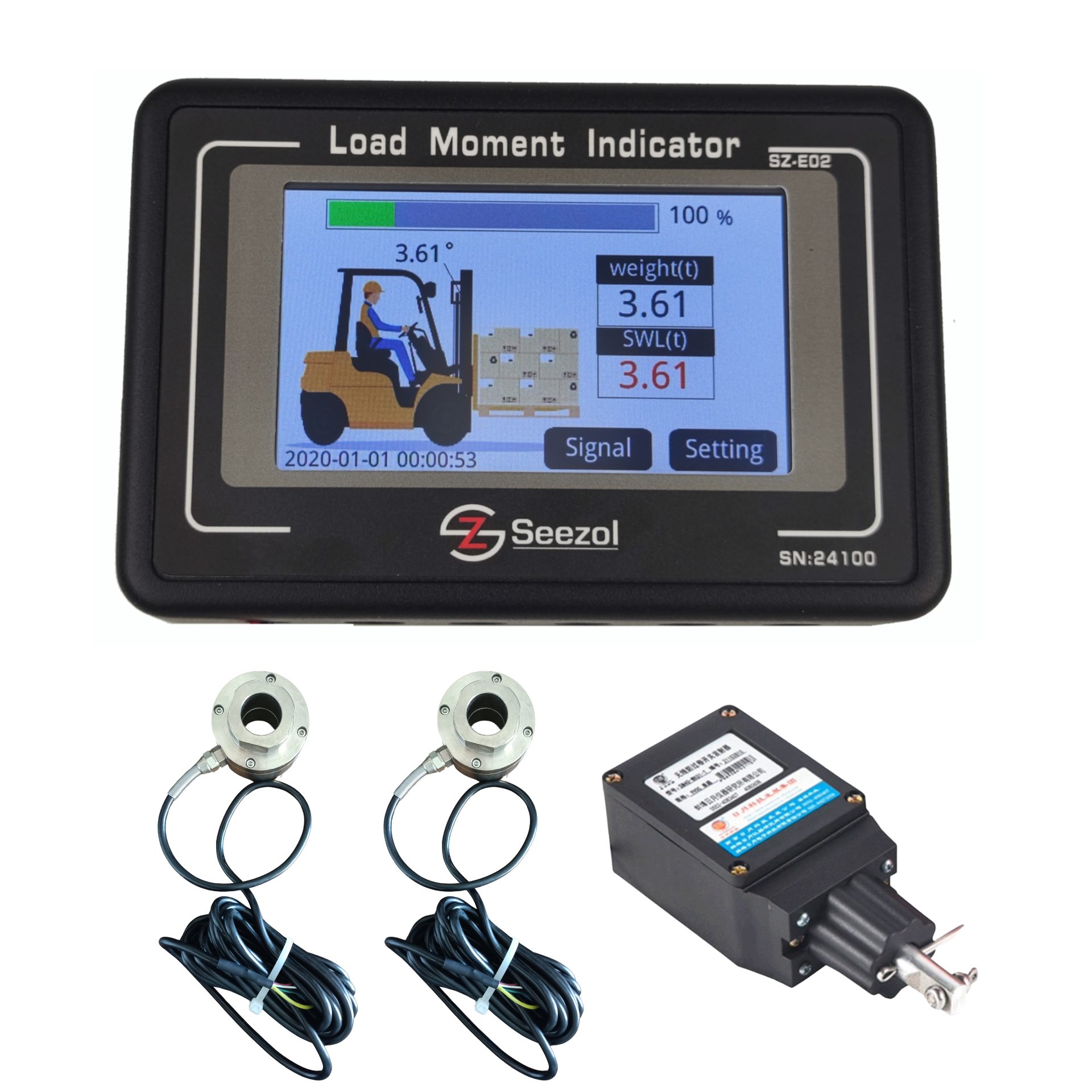

Main Components
- Cabin display / printer unit

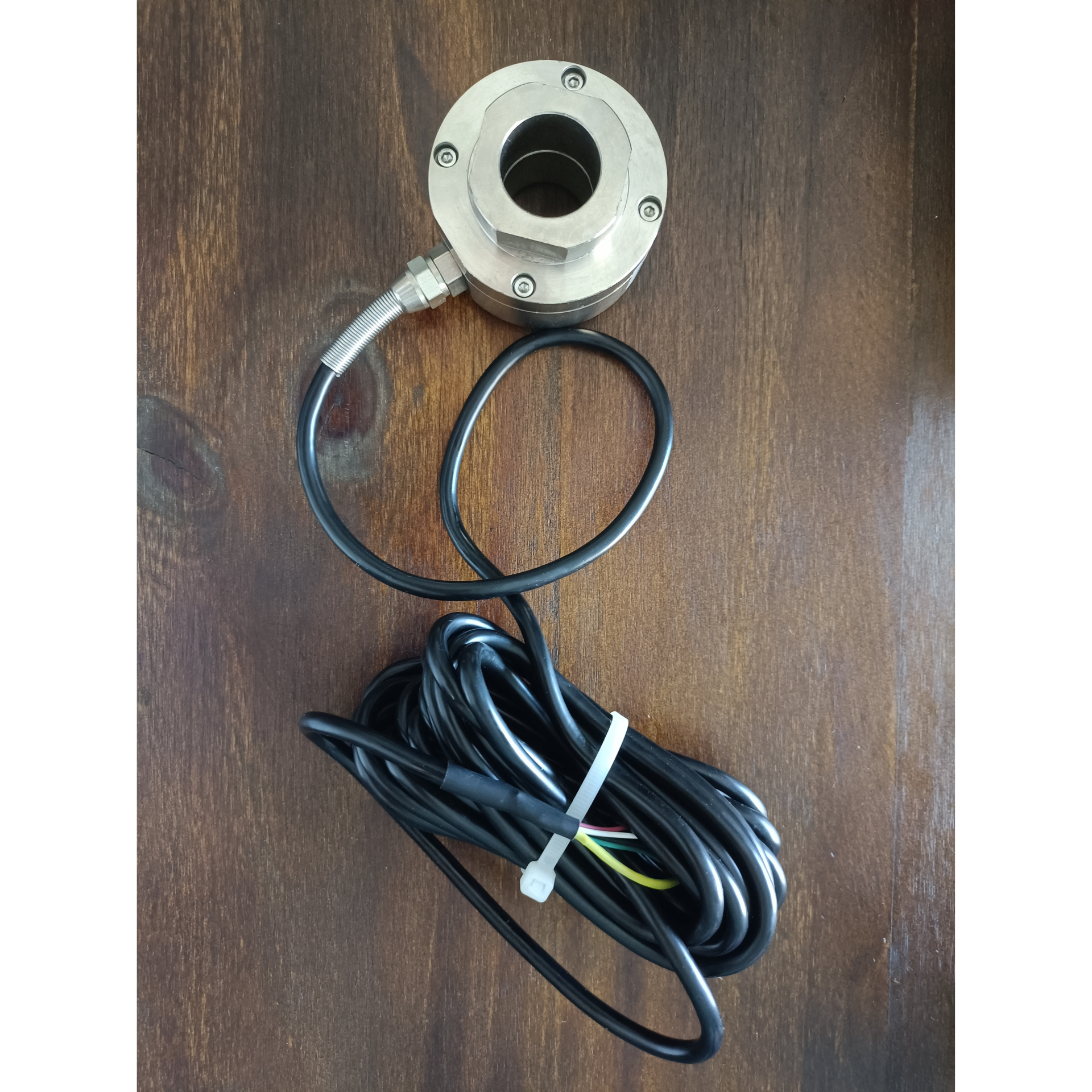

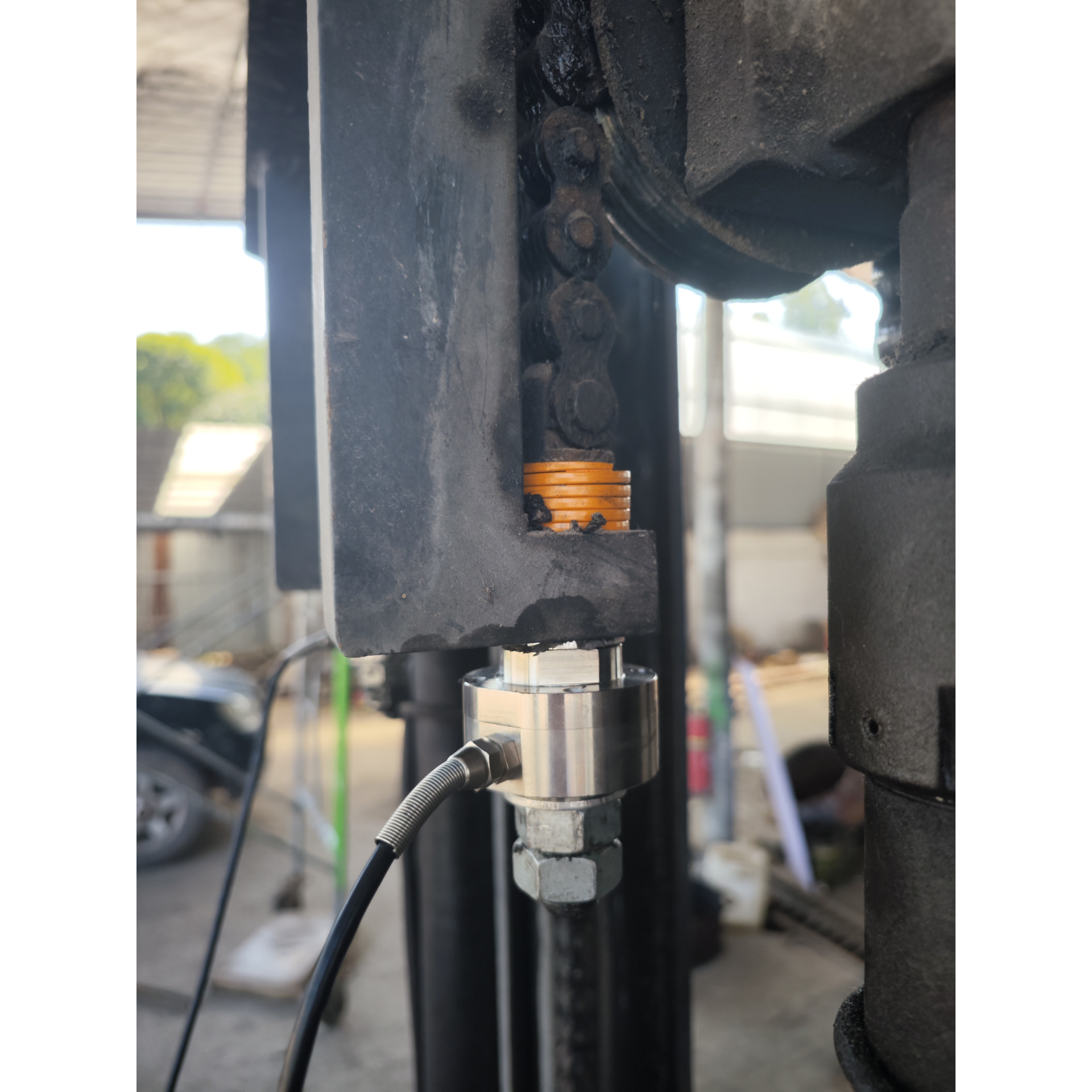

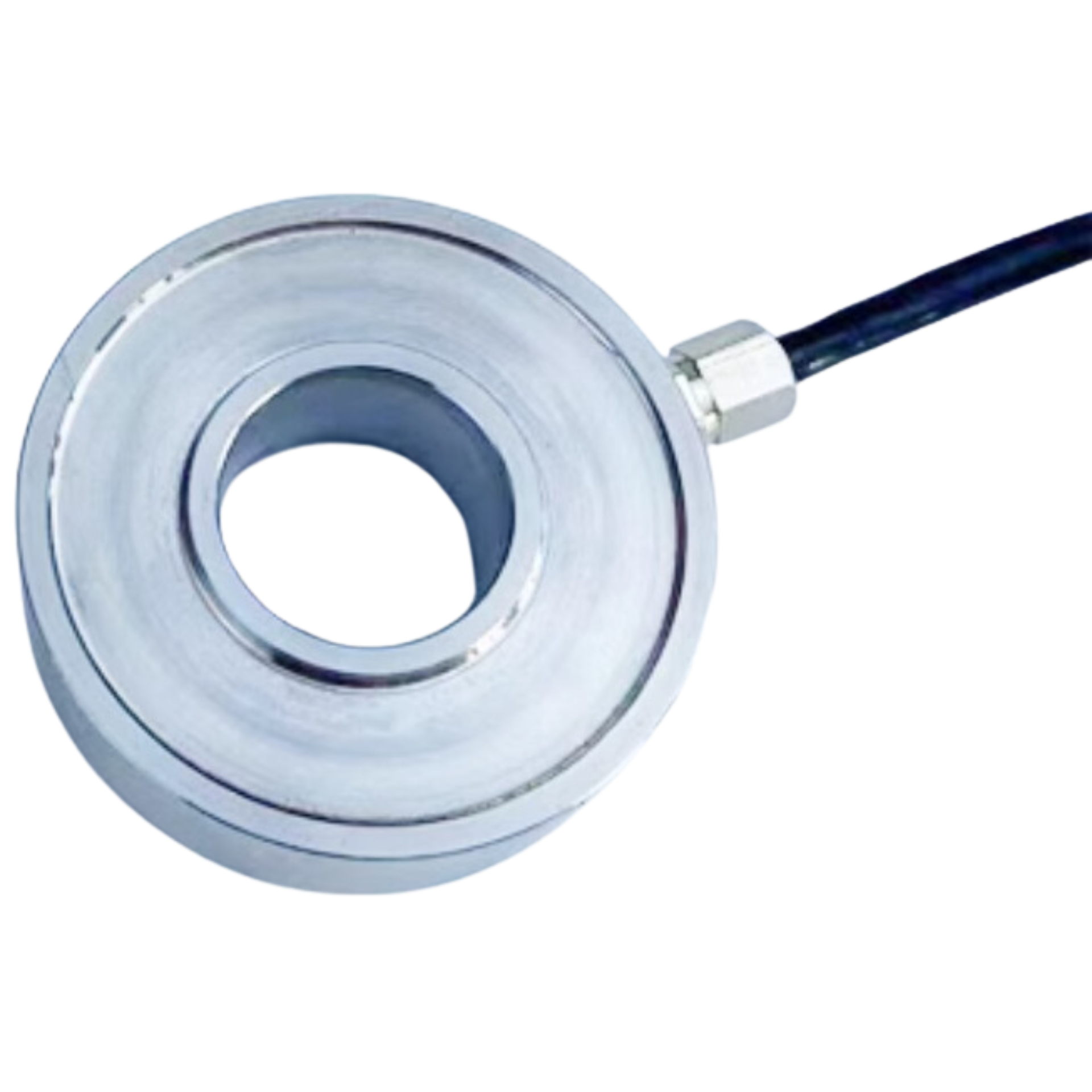

- Load cells (weight sensors)

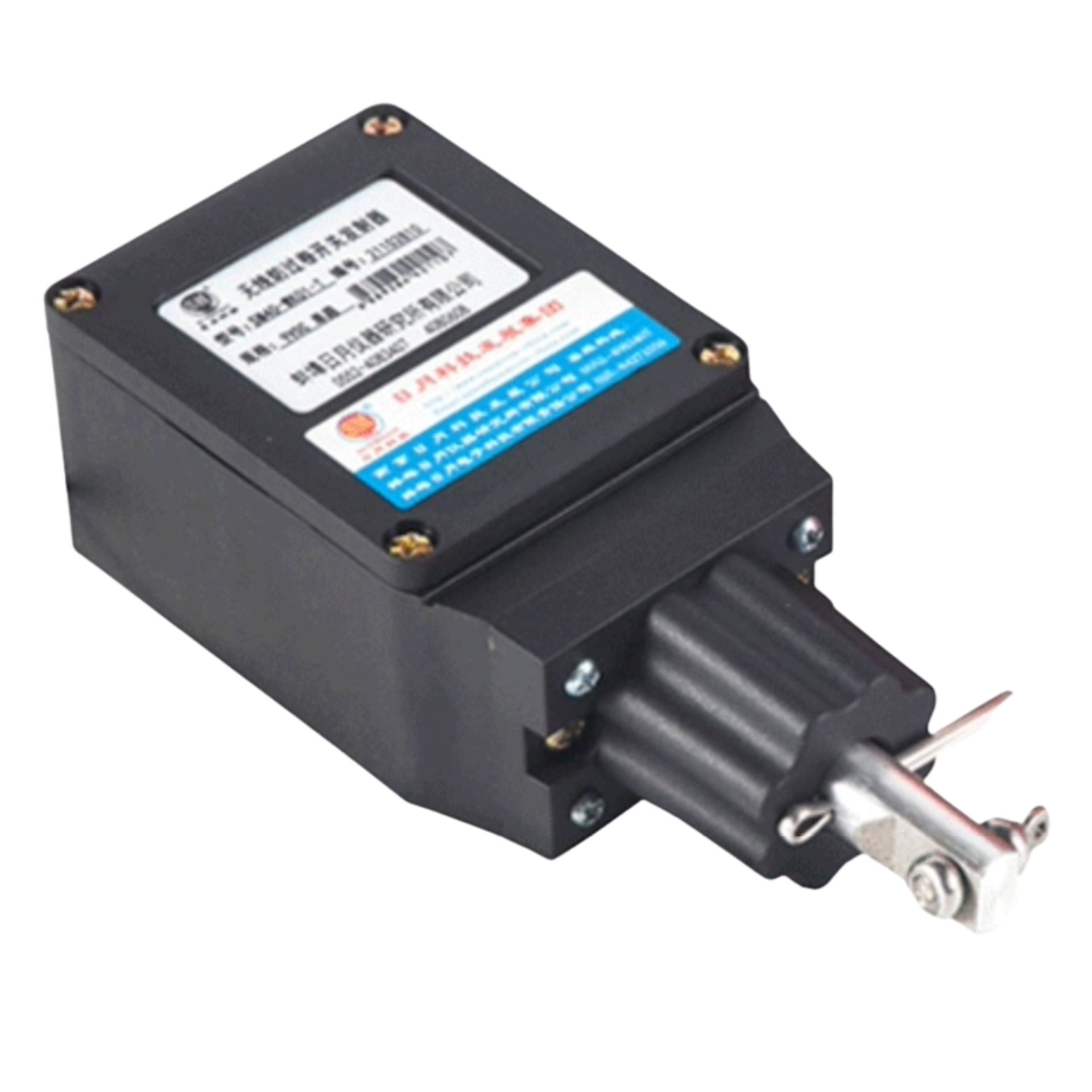

- Trigger / position sensor
Application Case
A logistics distribution center installed SeeZol forklift scales on its electric forklift fleet. Outbound pallets are weighed at the pick face, so shipping documents carry verified weights and overload on mezzanine floors is prevented without a separate scale station.
