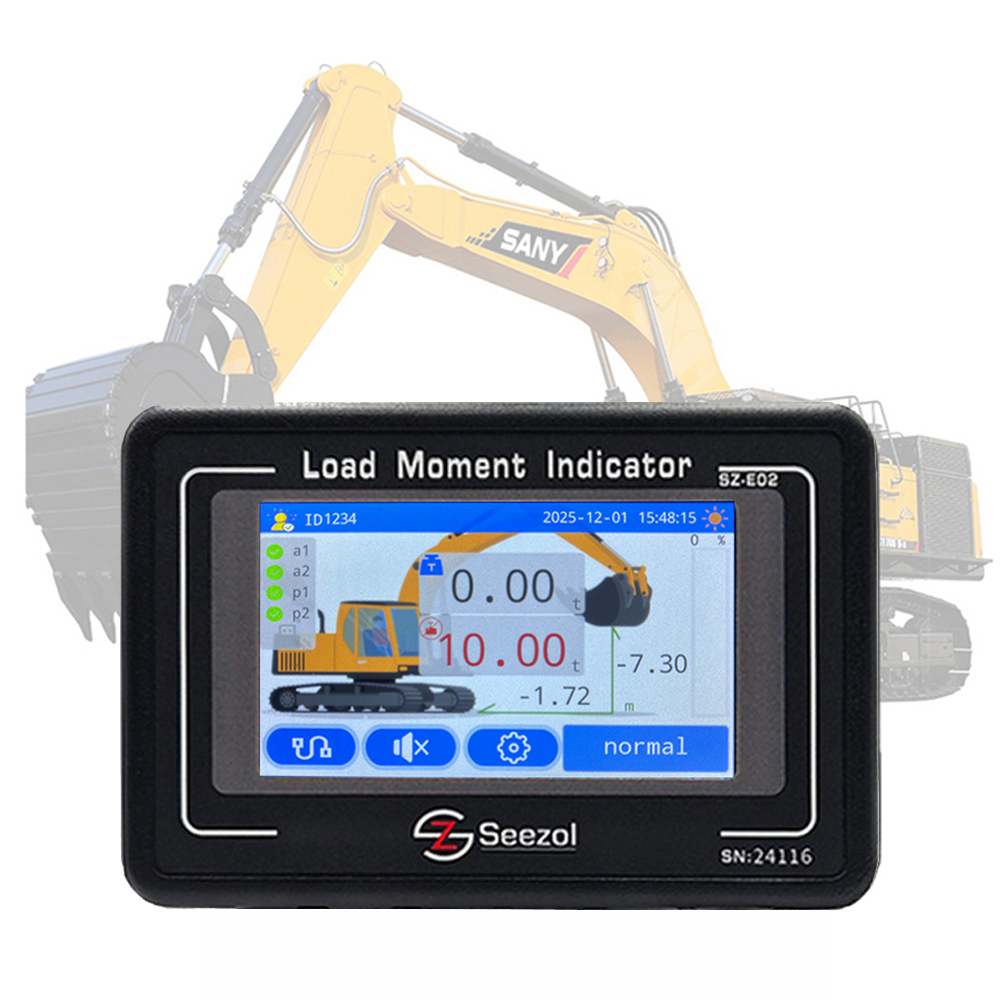

SZ-E02 Excavator load indicator
Product Overview
The SeeZol Excavator Load Indicator, also known as Load Moment Indicator (LMI) or Safe Load Indicator (SLI), is a real-time safety solution for excavators used for lifting, demolition, and material-handling duties. Through a human-machine interface and various sensors, it reflects boom height, angle, lifting weight, and overload status directly on the monitor, allowing the operator to keep the machine within a safe operating range at all times.
When the excavator approaches or exceeds the allowable safety threshold, the system triggers instant audible and visual alarms—minimizing accidents, equipment damage, and structural failures. Its rugged design ensures durability in harsh environments, and broad compatibility across major equipment brands makes it a versatile addition to any construction or industrial fleet.
Applicable Models
Crawler and wheel excavators, grabbers, and loaders used for lifting duties.
Key Features
- Real-time weight, radius, and height display
- Boom angle and overload warning
- Overload data record and historical log
- Audible alarm on threshold breach
- Easy retrofit, minimal hydraulic modification
- Compatible across major excavator brands
System Parameters
- Working voltage: DC 9–36V
- Working temperature: -20℃ ~ +70℃
- Storage temperature: -20℃ ~ +70℃
- System error: ±3%
- Display error: ±5%
- Relay contact capacity: AC220V 3A
- Protection level: IP65

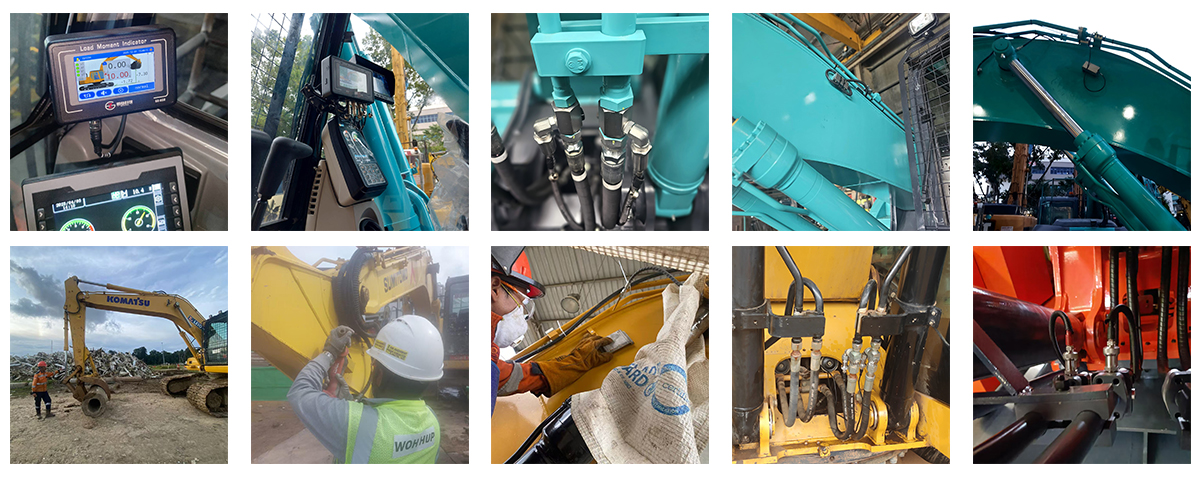

Main Components
- Boom / arm angle sensor (inclinometer)
- Hydraulic cylinder pressure sensor
- Cabin display (HMI)
- Data acquisition & control unit
Application Case
A demolition contractor uses SeeZol excavator LMIs when lifting broken concrete with slings, keeping operators within the machine’s rated lift chart and avoiding forward-tip incidents on unstable debris piles.
