SZ-FL01 Forklift Load Limiter

Product Overview

The SeeZol Forklift  Load Limiter, also professionally named Forklift Load Moment Indicator (LMI) or Safety Load Indicator (SLI), is an essential safety retrofit system for material-handling machinery. Integrated with high-sensitivity pressure and tilt sensors, it collects real-time operating data—lifting weight, load angle, and boom position—without interfering with the original forklift hydraulic circuits.

All core data are synchronously presented on an intuitive waterproof HMI touchscreen for operators to check at a glance. Once the load exceeds rated capacity or the tilting angle crosses the safety threshold, the system instantly activates dual audible and visual alarms to prevent rollover and cargo dropping. Featuring plug-and-play installation and a dustproof, shockproof design, it fits most internal-combustion and electric forklifts for warehouse, port, and construction-site use.

Applicable Models

Compatible with counterbalance forklifts with a rated lifting capacity of 1-10 tons, and compatible with fully free mast and two-stage/three-stage mast structures.

Key Features

• Real-time weight and alarm-weight display

• Overload warning with audible alarm

• Overload data record and historical log

• Integrated pressure & tilt sensing (no hydraulic modification)

• Plug-and-play, dustproof and shockproof design

System Parameters

• Working voltage: DC 12–36V

• Working temperature: -20℃ ~ +70℃

• Storage temperature: -20℃ ~ +70℃

• System error: ±3%

• Display error: ±5%

• Relay contact capacity: AC220V 3A

• Protection level: IP65

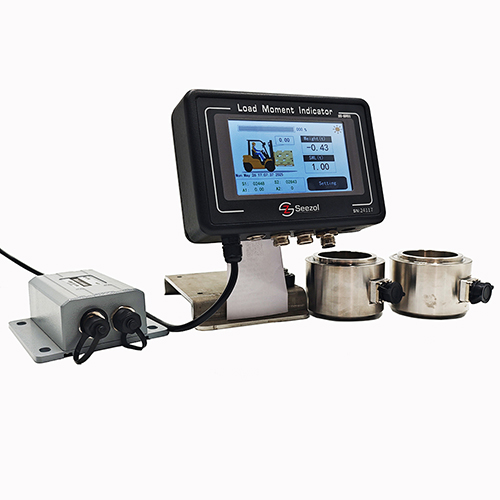

Main Components

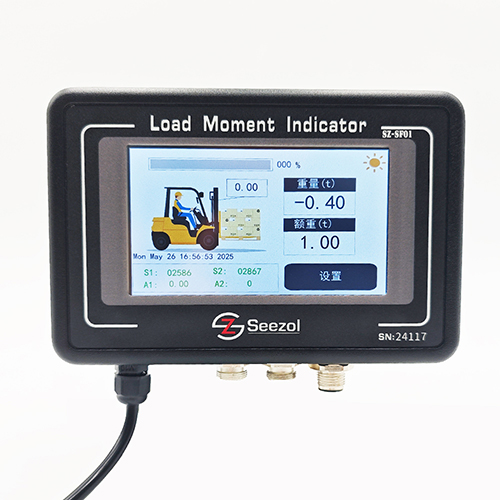

• Waterproof HMI touchscreen (display)

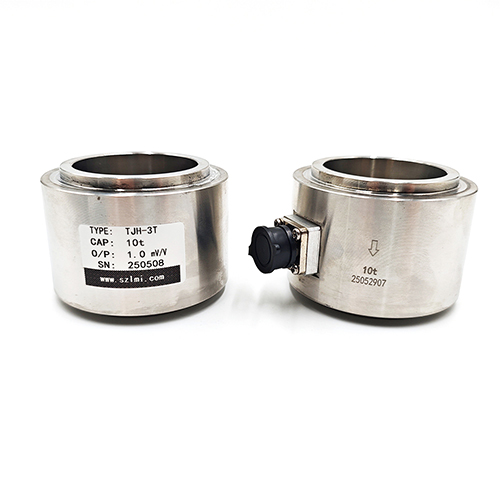

• Load sensors

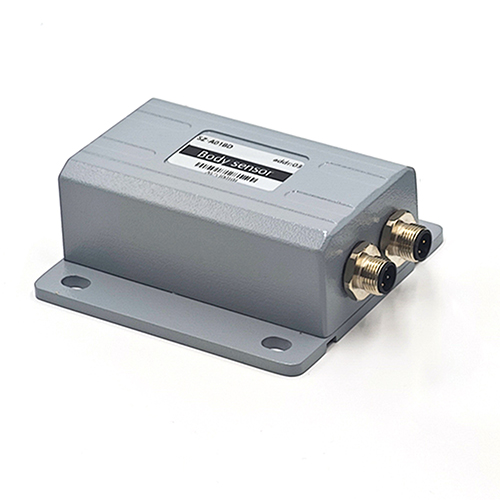

• Tilt / angle sensor

• Data acquisition & control unit

Application Case

A 3PL warehouse fitted SeeZol forklift SLI units to its counterbalance fleet, cutting overload-related damage to racking and improving operator compliance with rated-capacity rules.
