SZ-CM100 Self Loading Concrete Mixer Weighing System

Product Overview

The SeeZol Self-Loading Concrete Mixer Batching Weighing System, also referred to as an automatic concrete batching proportion system, is a dedicated integrated weighing solution tailored for self-loading concrete mixer trucks. Equipped with anti-vibration high-precision load sensors optimized for bumpy construction roads, it captures real-time weight data of sand, cement, aggregate, and water during feeding.

The system dynamically calibrates weighing data amid mixing vibration to eliminate measurement errors, supporting one-click preset and customized batching ratios for varied concrete strength standards. It synchronizes weight records to the onboard HMI, avoids truck overloading and unqualified concrete proportioning. Built with a dust- and splash-proof structure, it adapts to harsh outdoor construction sites, cutting manual material-checking labor and shortening on-site batching cycles.

Applicable Models

Self-loading concrete mixer trucks (all loading-hopper capacities).

Key Features

• Intelligent control: one-button start, intuitive interface, single-operator operation

• Precision weighing: advanced algorithm, error margin below 1%

• User-friendly: 7-inch HD touchscreen, smartphone-like responsiveness

• Recipe management: multiple batching modes for diverse production needs

• Auto stop / alarm when preset weight is reached

System Parameters

• Power Supply: 12–36V DC

• Measurement Range: fully covers the maximum capacity of the loading hopper

• Accuracy: Static error ≤ ±0.5%, Dynamic error ≤ ±1%

• Protection Class: IP67 (dust-tight and waterproof)

• Response Time: ≤ 50 ms

• Compatibility: supports multiple signal outputs (4–20mA, RS485, CAN Bus)

Main Components

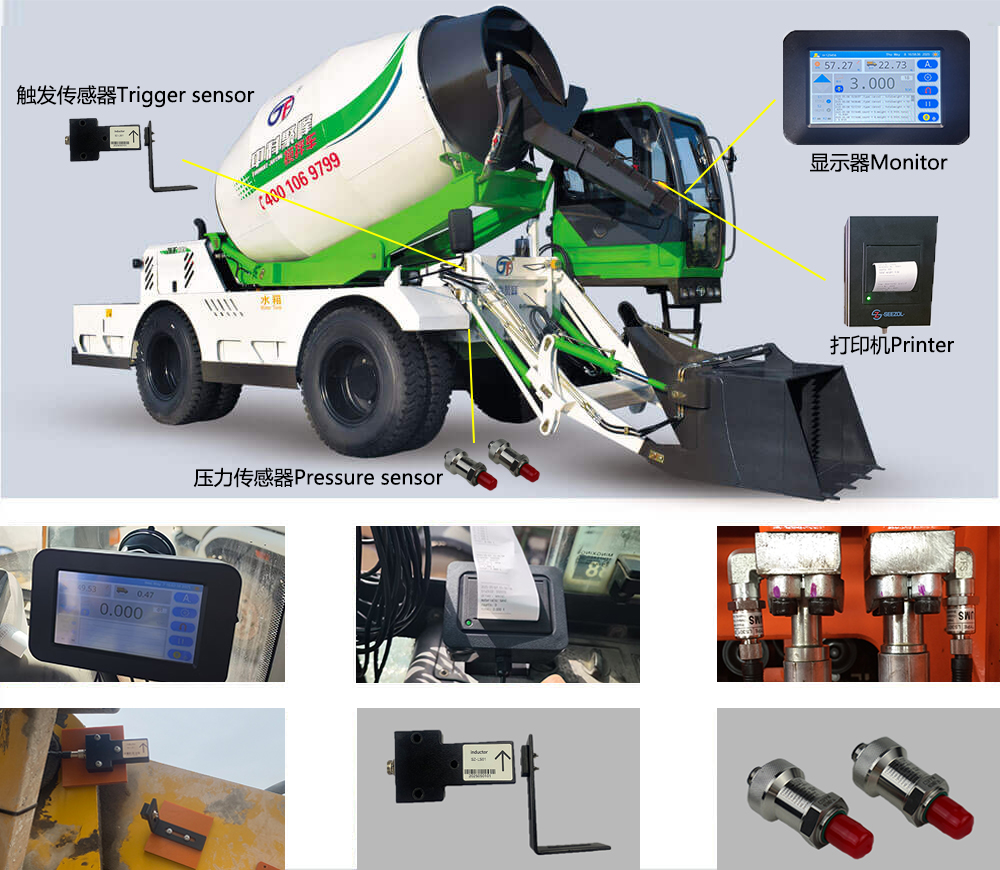

• Load Sensors: detect weight changes in the hopper, convert to electrical signals (pressure sensors on hydraulic lifting pipes)

• Trigger Sensors: magnetic proximity switches on hopper arm / pivot points, trigger weight recording by lift position

• Signal Processing Module: amplify/filter sensor signals, temperature/speed/vibration compensation, AD conversion

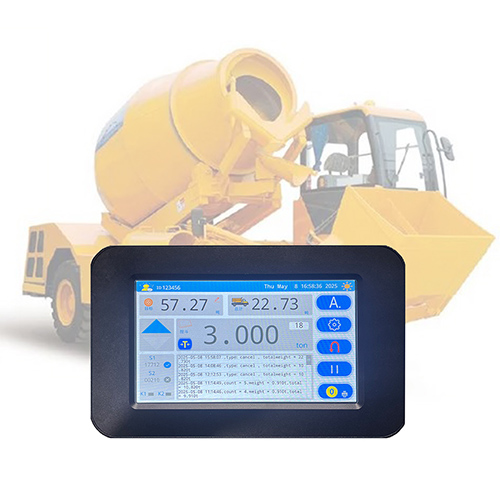

• Display Terminal: in-vehicle 7-inch display + smart terminal (Bluetooth/Wi-Fi) for remote monitoring and export

Application Case

A ready-mix contractor uses SeeZol mixer batching scales to preset per-truck concrete recipes onsite, hitting target strength without lab sampling and cutting batching cycle time.
