Reachstackers load indicator
Picture description
Introduction
The reach stacker load indicator,Also as reachstackers Prevents eccentricity system， provides the operator with effective operation information, so that the crane can be used effectively within its design parameters. With the help of a variety of signal sensors, the force limiter can provide the operator with information about boom length, boom angle, working height, working range, rated lifting weight and actual lifting weight in real time.

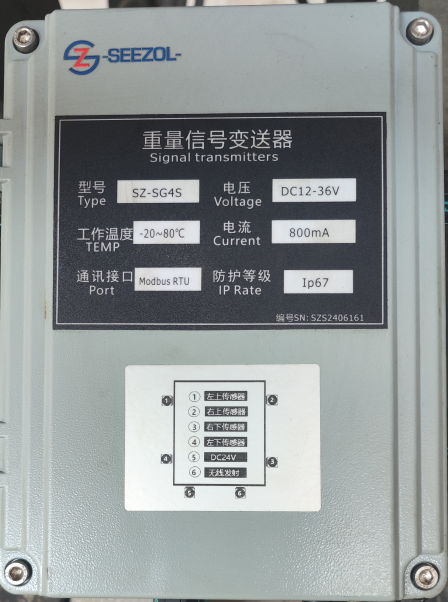

Parts
Features

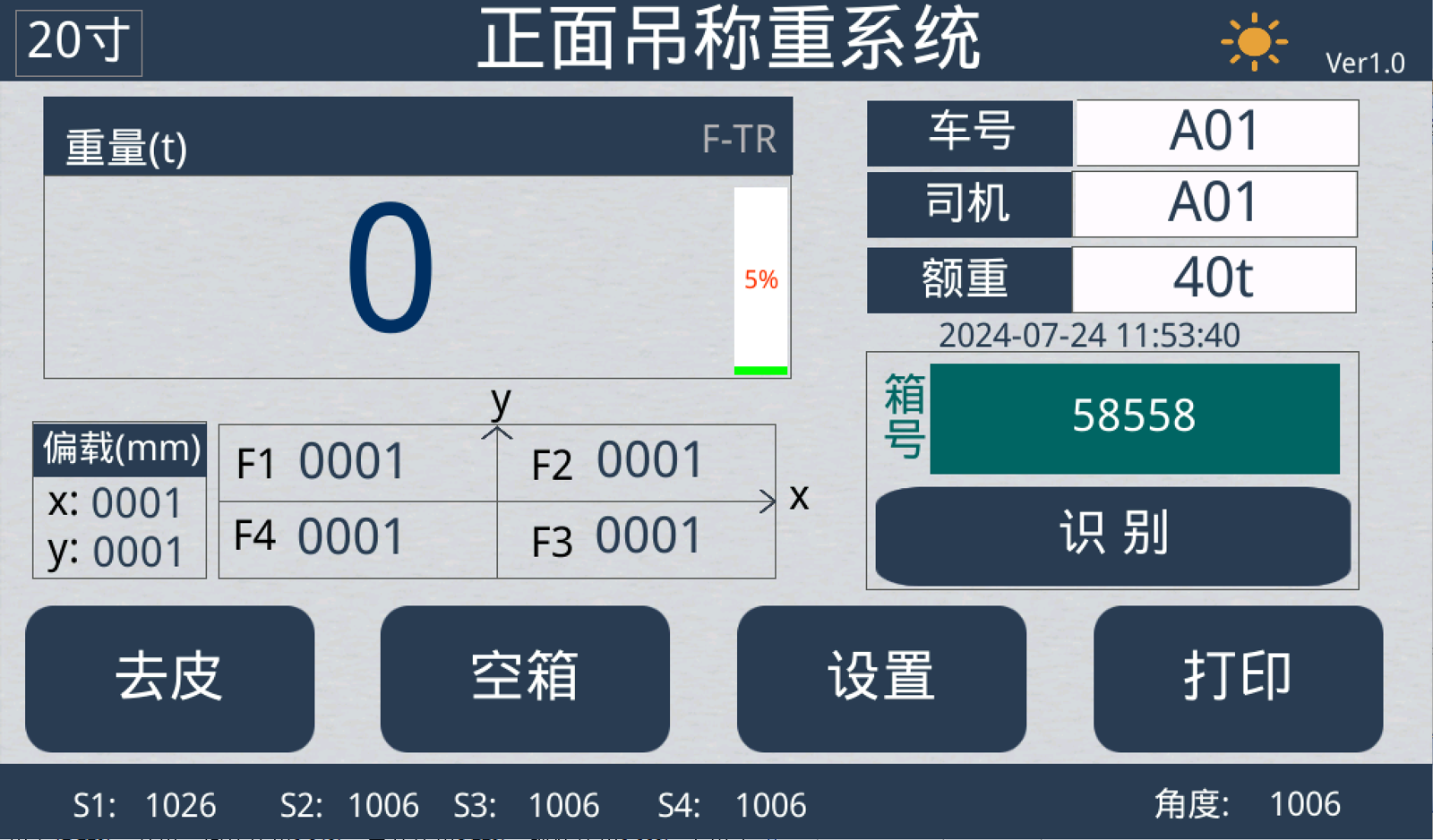

- Real-time weight display
- Prevents eccentricity
- radius display
- height display
- height warning
- weight warning
- overload data record
System parameters
- Working voltage: DC9-36v;
- Working temperature: -20℃～+70℃;
- Storage temperature: -20℃～+70℃;
- System error: ±3%,
- display error: ±5%
- Relay contact capacity: AC220V 3A;
- Protection level: IP65 ;

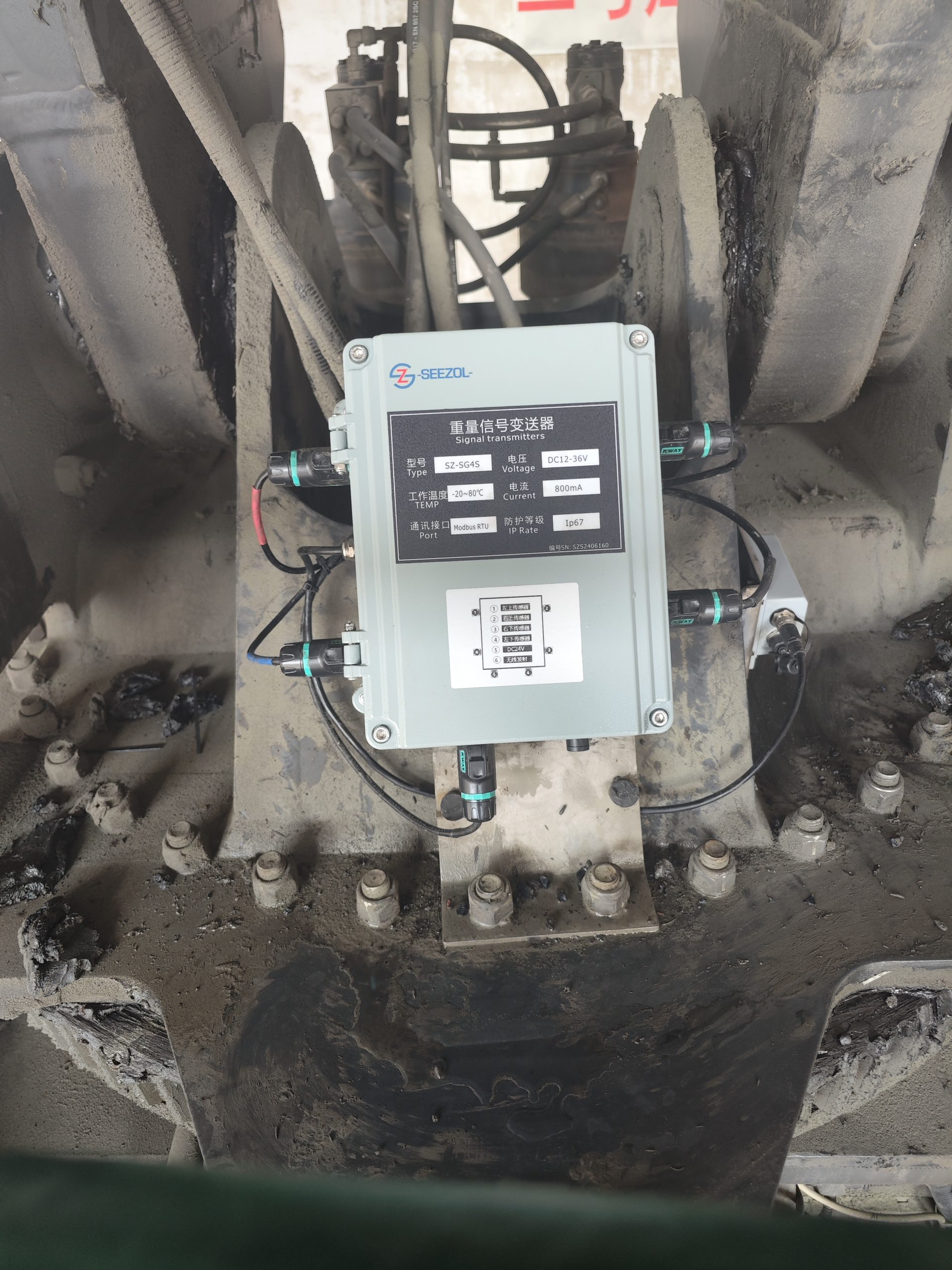

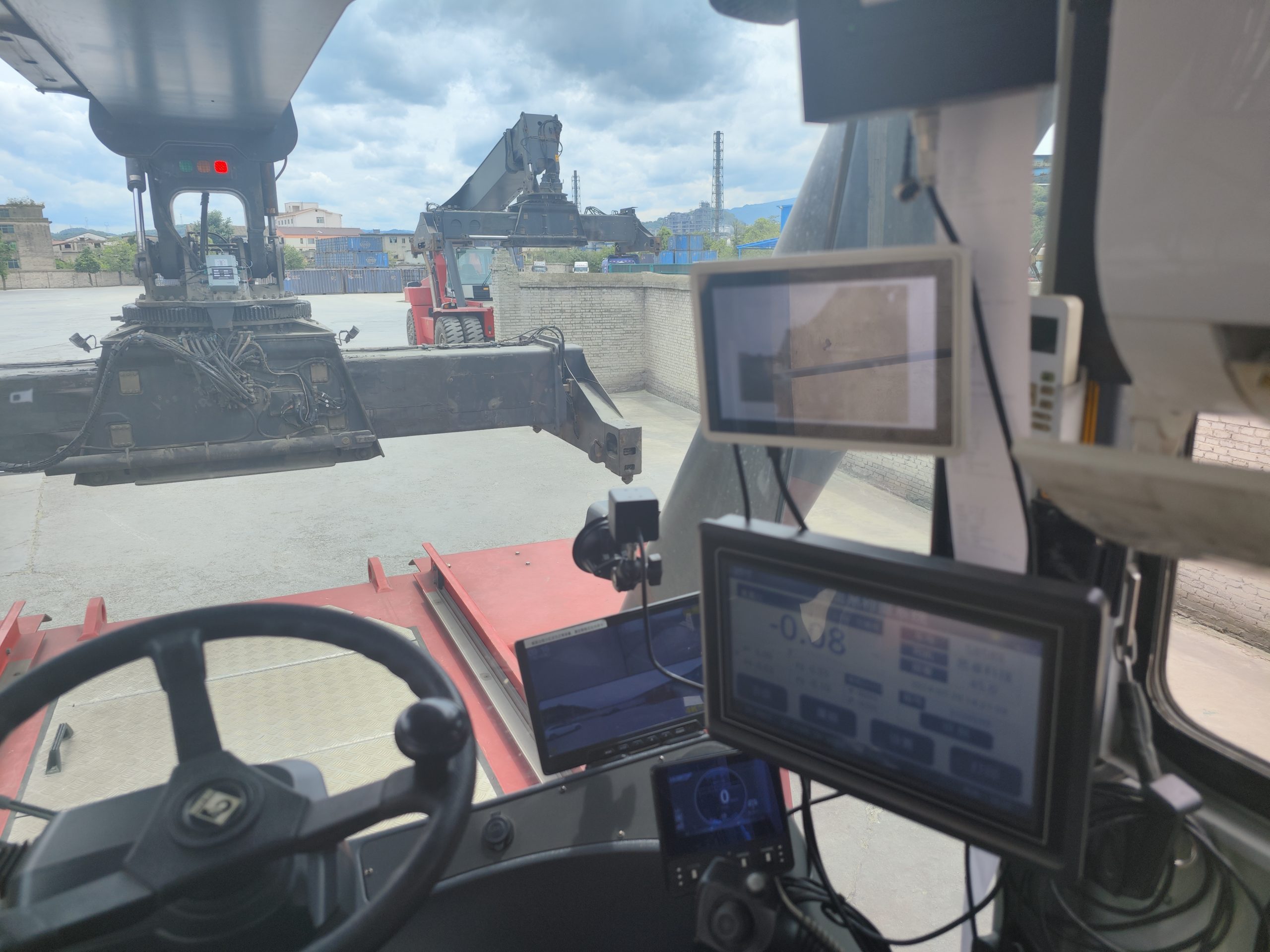

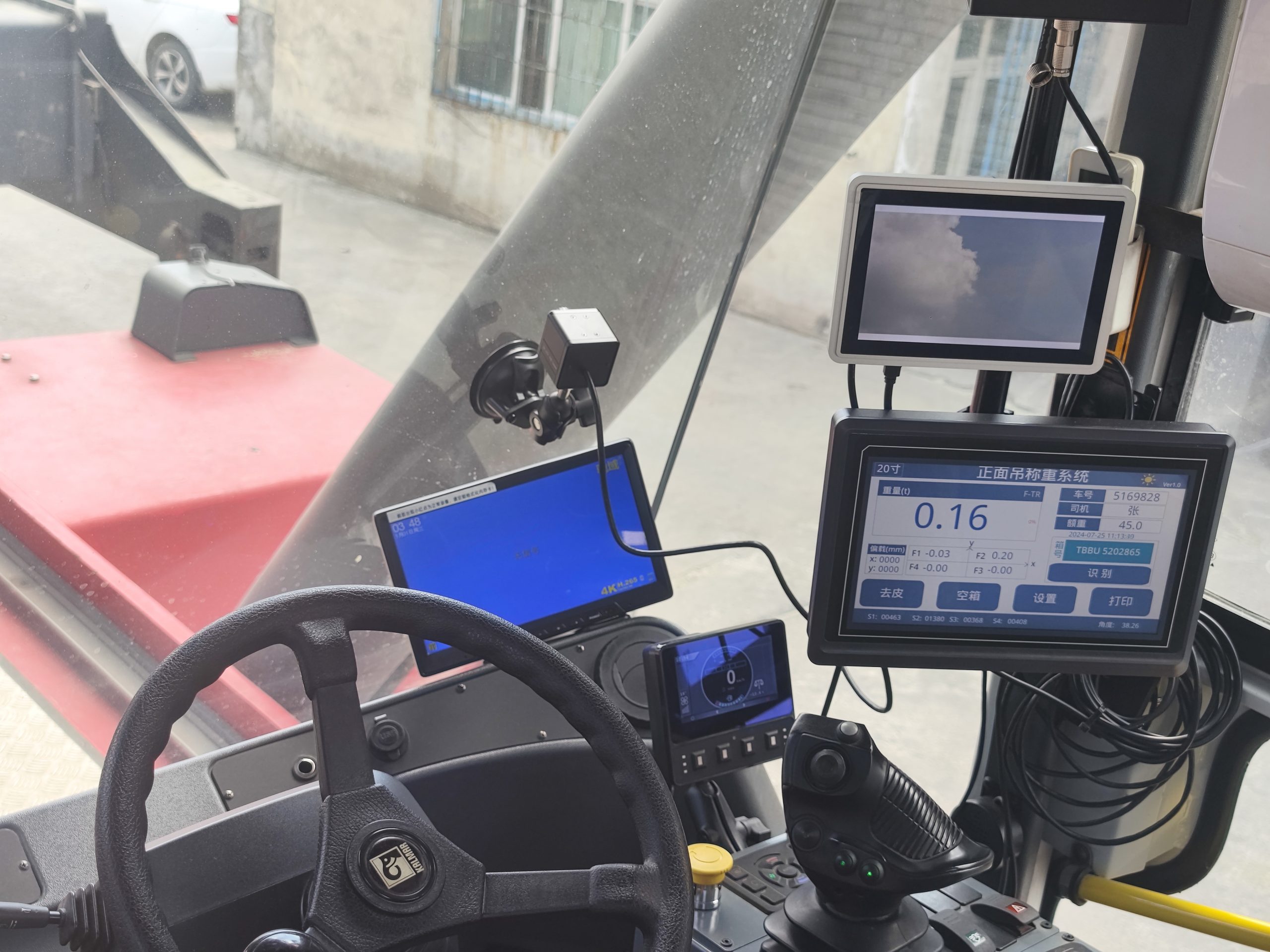

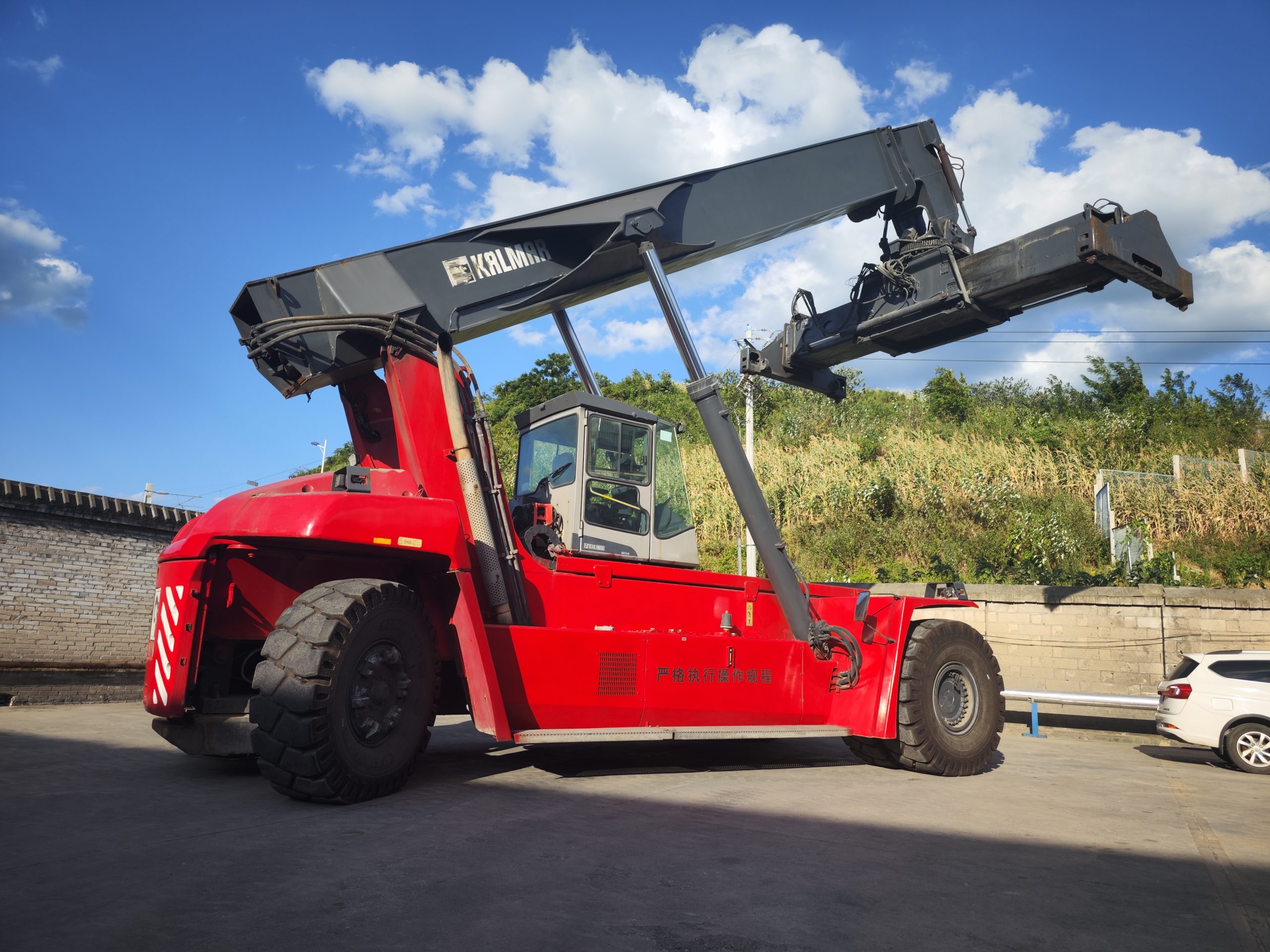

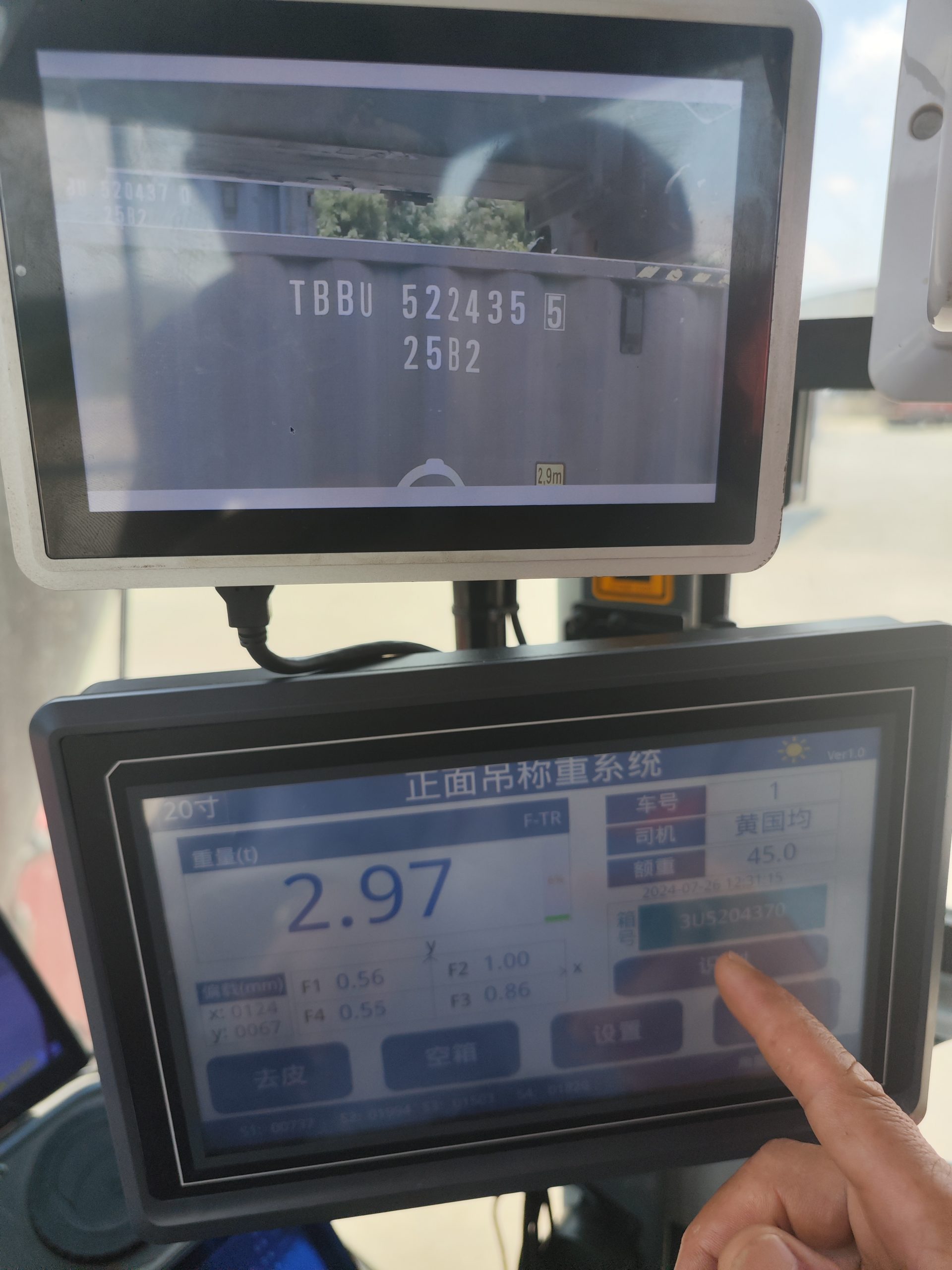

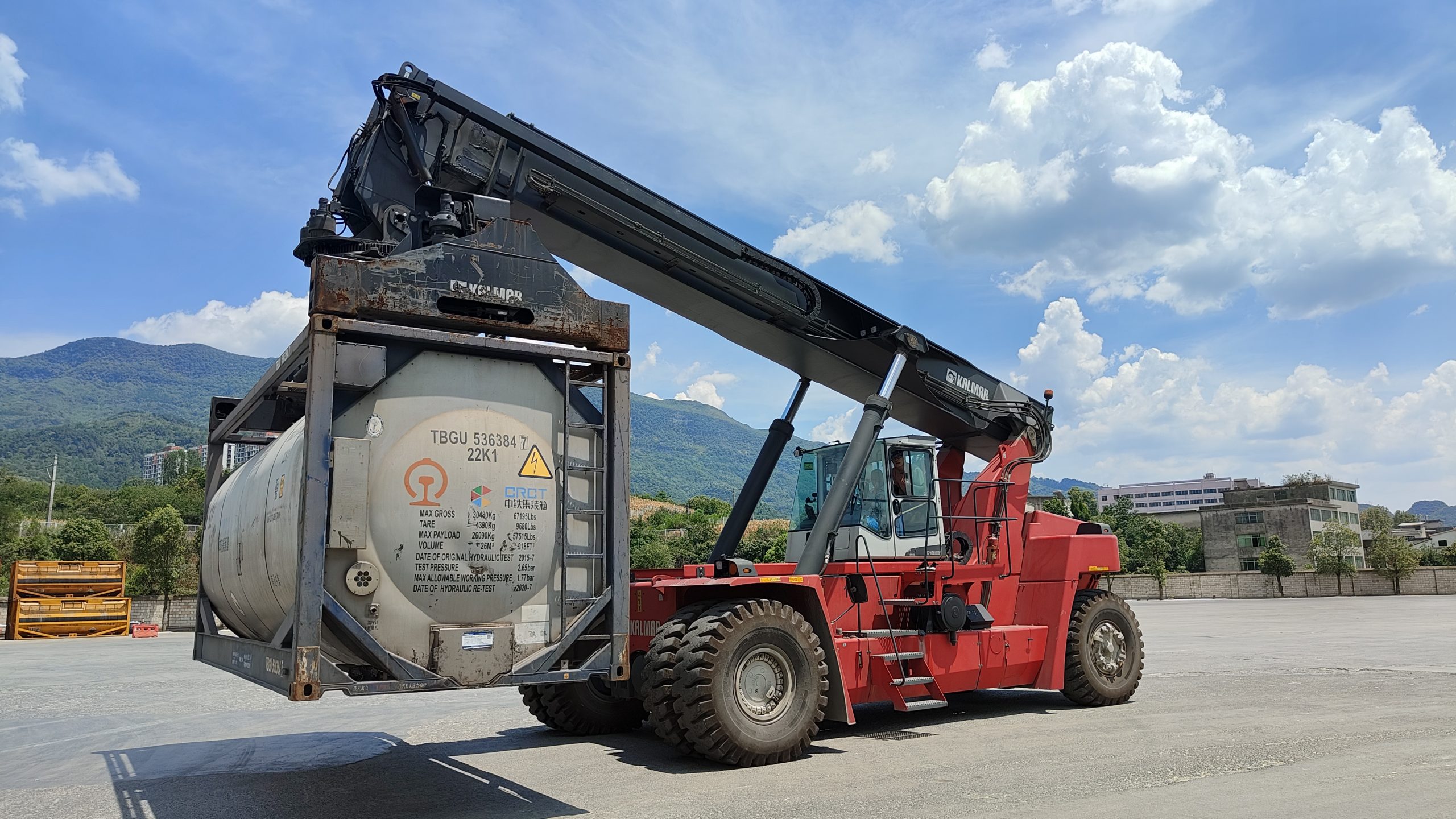

case
