SZ-RS01 Reachstackers LMI
Visão geral do produto
The SeeZol Reachstacker Load Indicator, also functioning as a reachstacker eccentricity-prevention system, provides the operator with effective operation information so the crane can be used effectively within its design parameters. With the help of various signal sensors, the force limiter provides real-time information on boom length, boom angle, working height, working range, rated lifting weight, and actual lifting weight.

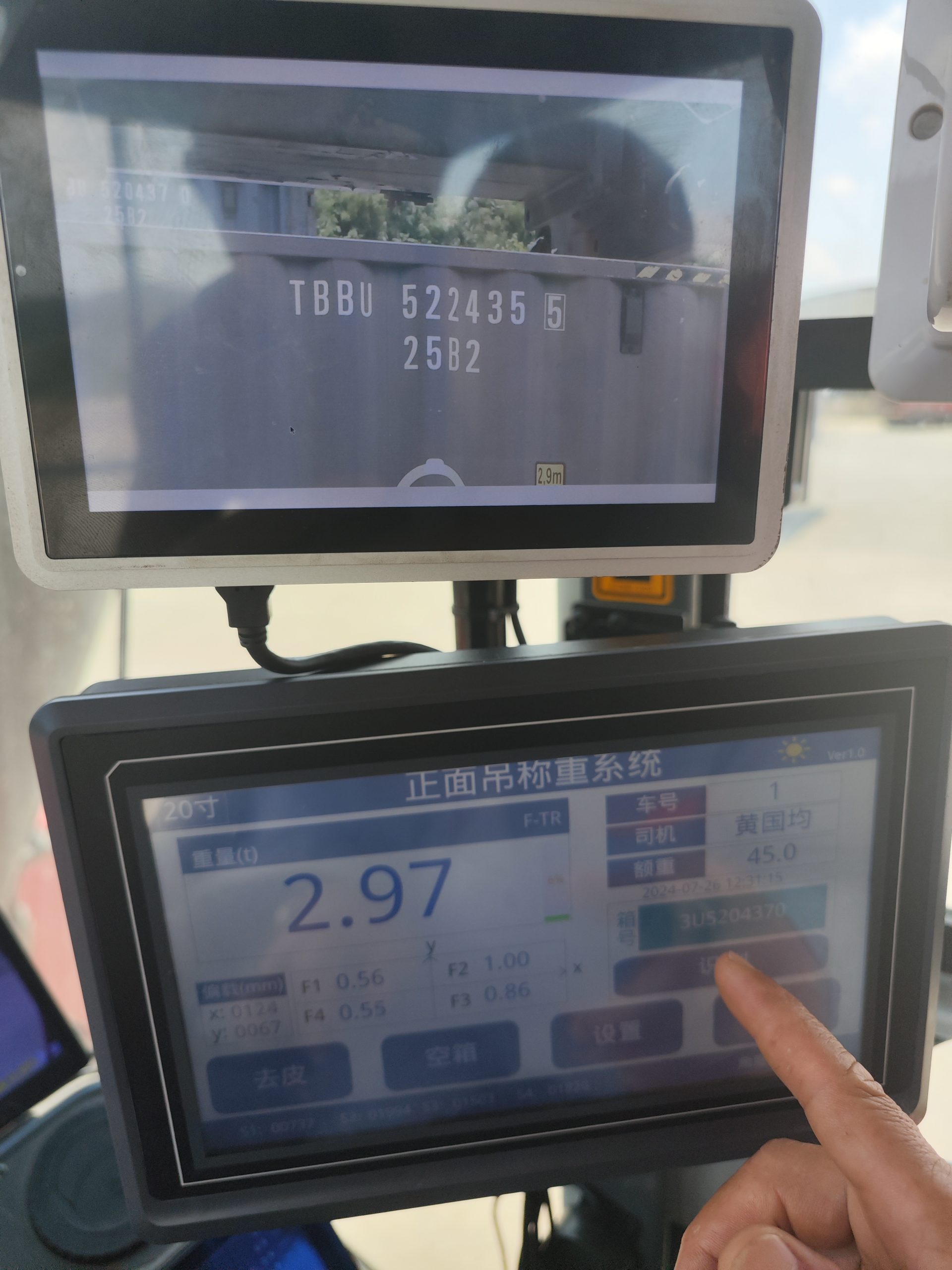

It also issues an alarm and outputs a control signal when preset thresholds are reached—including eccentric-load detection that warns before an unstable or off-center container lift can occur. Combined with optional container-number recognition and weight logging, it supports safer, smarter yard operation for terminals handling mixed and unbalanced loads.
Modelos compatíveis

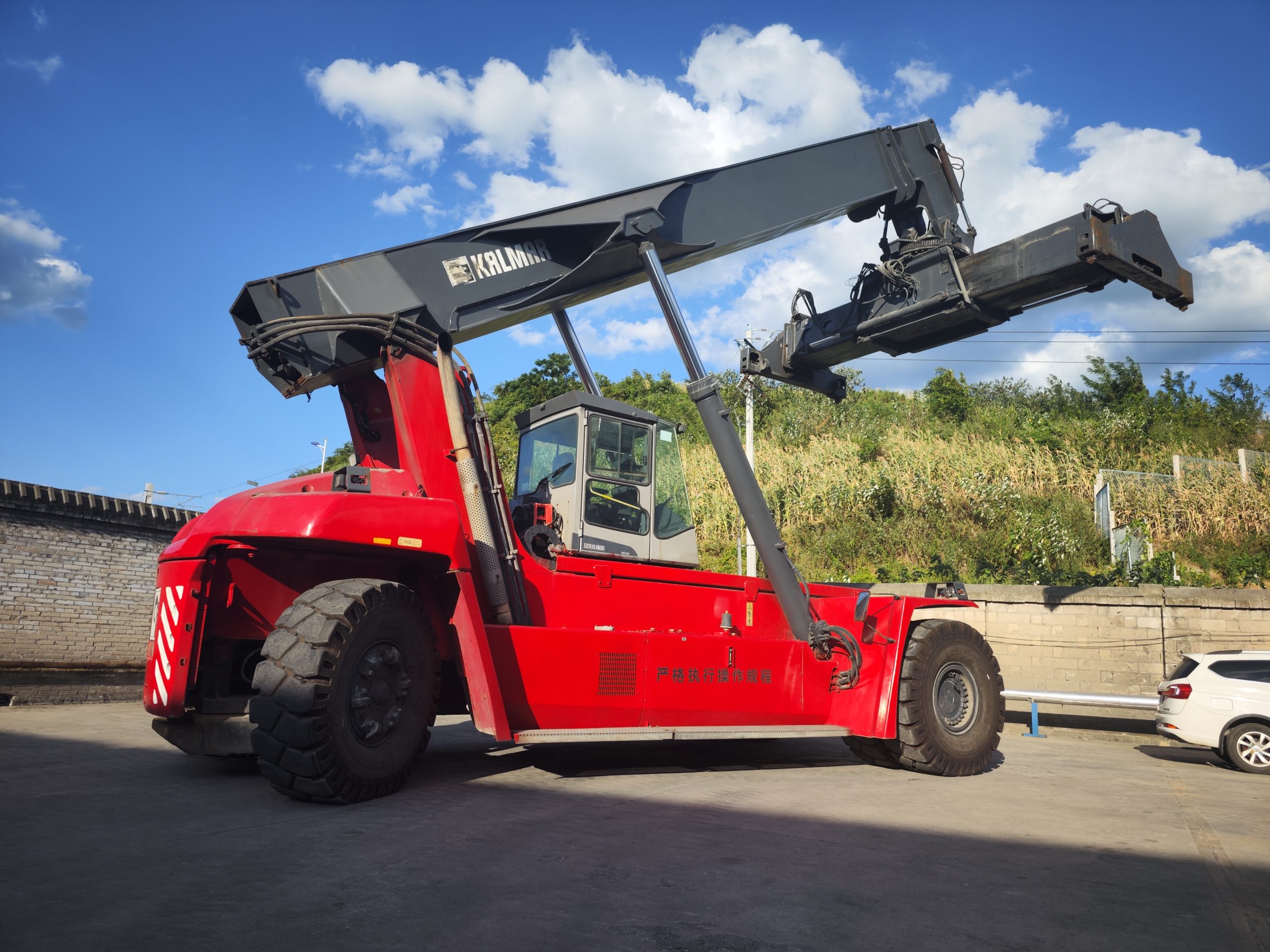

Container reach stackers and empty-container handlers with spreader lifting.
Principais características
- Exibição de peso em tempo real
- Eccentric / bias-load prevention
- Radius and height display
- Aviso sobre altura e peso
- Overload data record and control output
Parâmetros do sistema
- Tensão de funcionamento: 12–36 V CC
- Temperatura de funcionamento: -20 ℃ a +70 ℃
- Temperatura de armazenamento: -20 ℃ a +70 ℃
- Erro do sistema: ±3%
- Erro de visualização: ±5%
- Capacidade do contacto do relé: 220 V CA, 3 A
- Nível de proteção: IP65

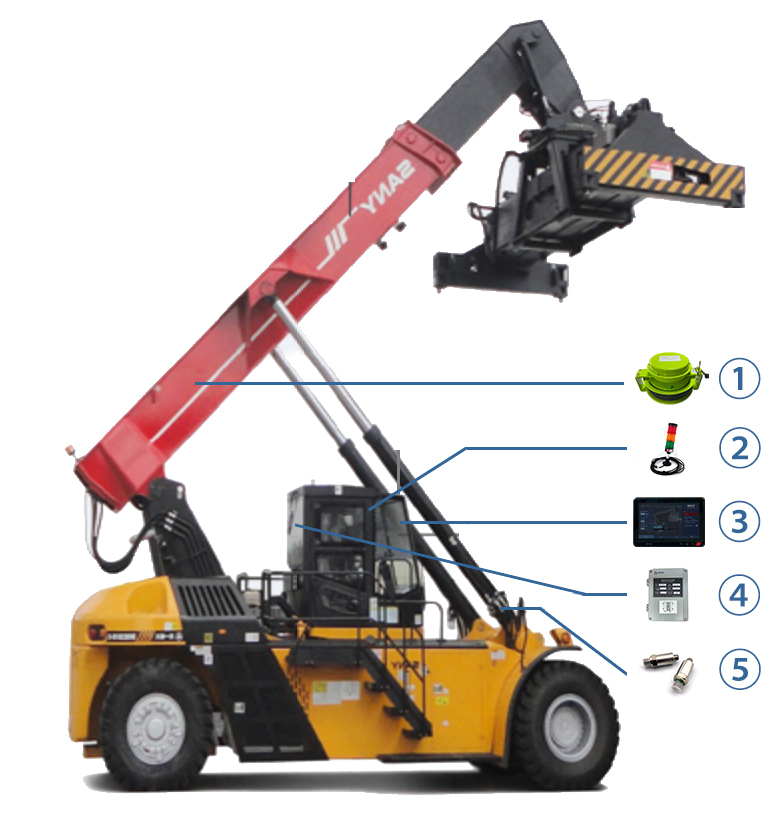

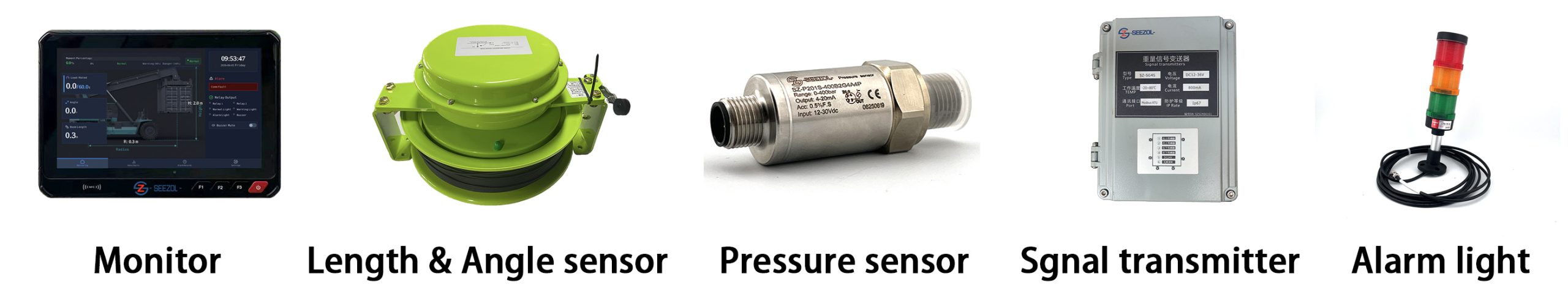

Componentes principais
- Length & angle sensor
- Alarm light

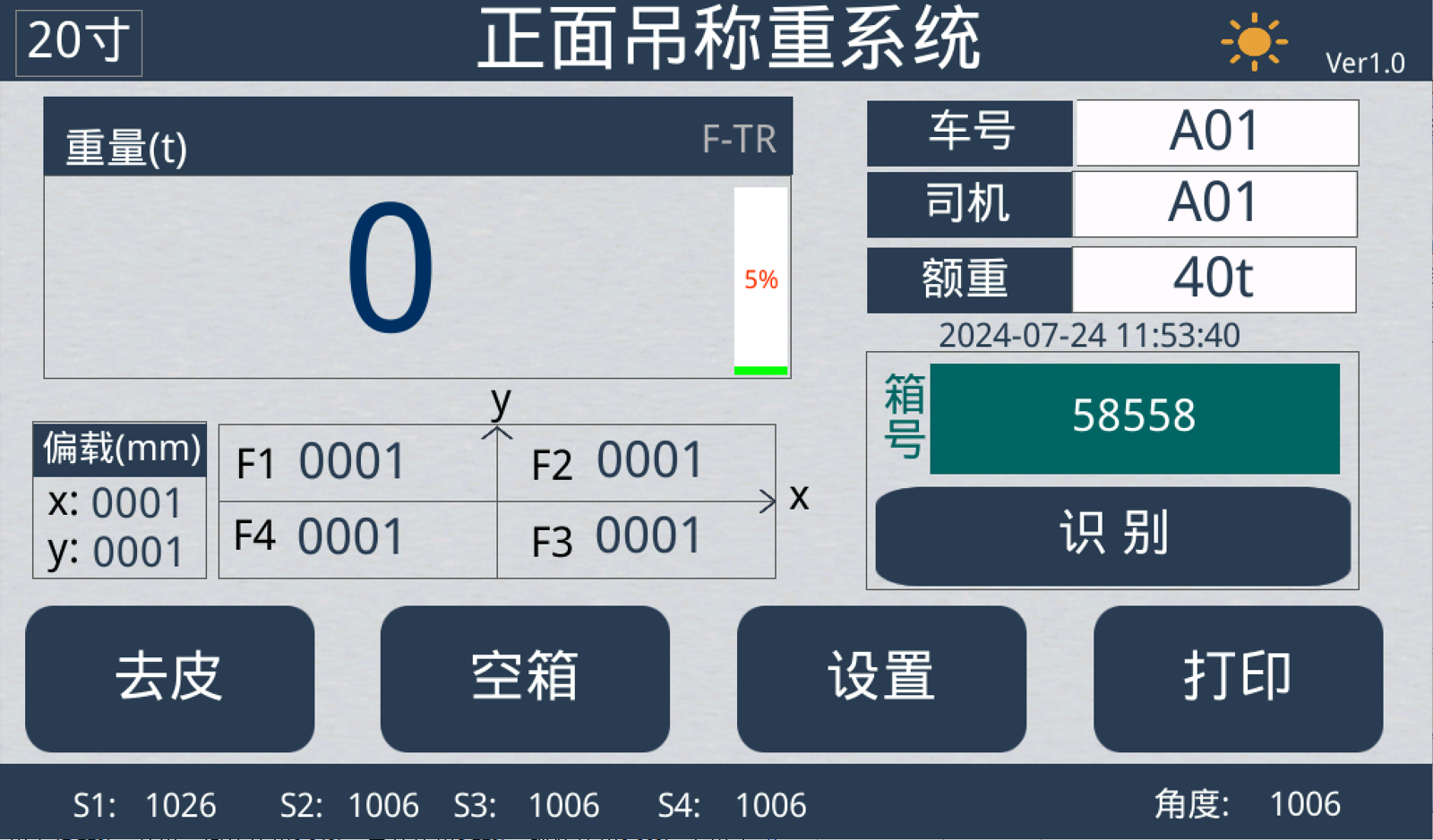

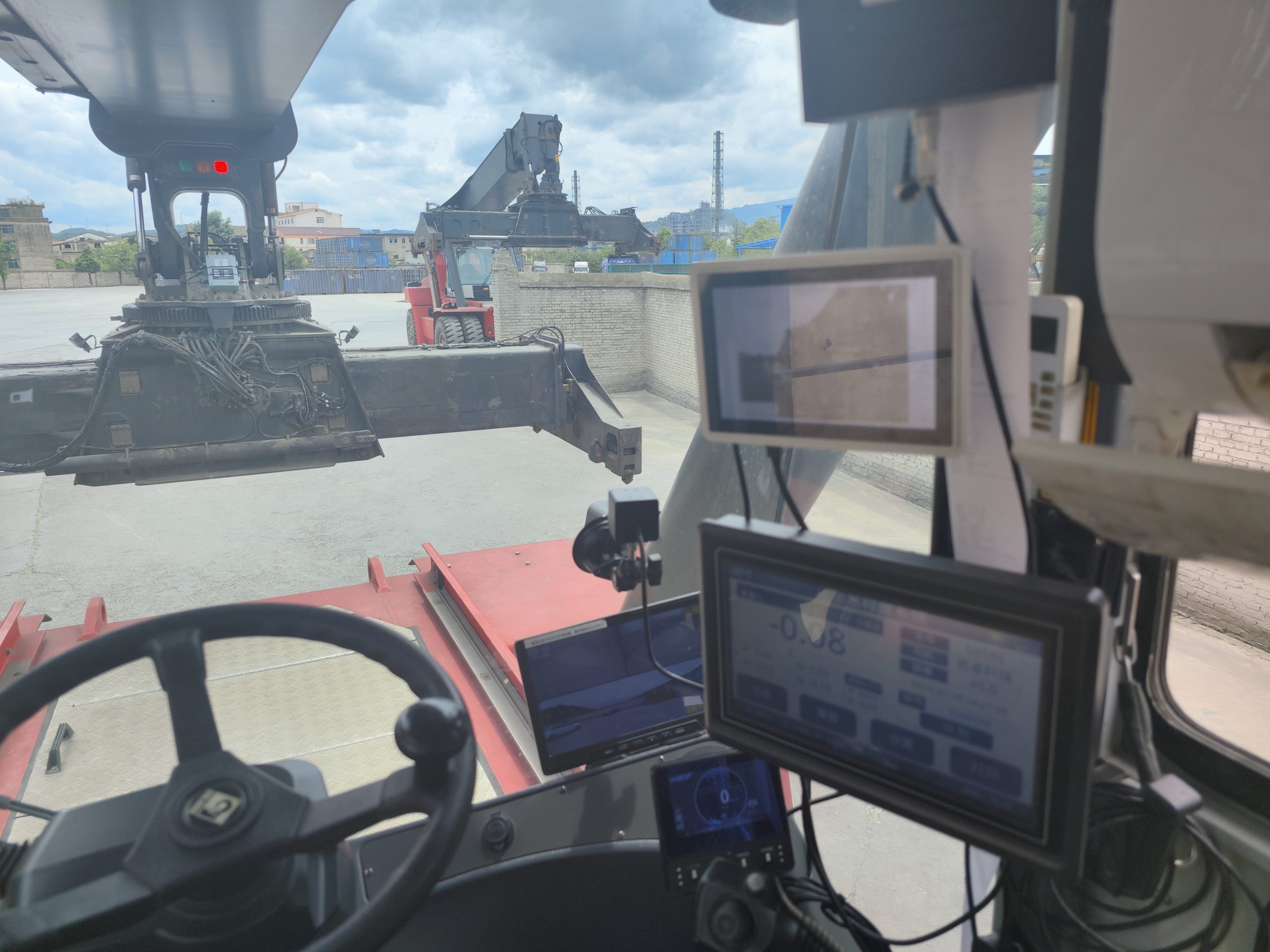

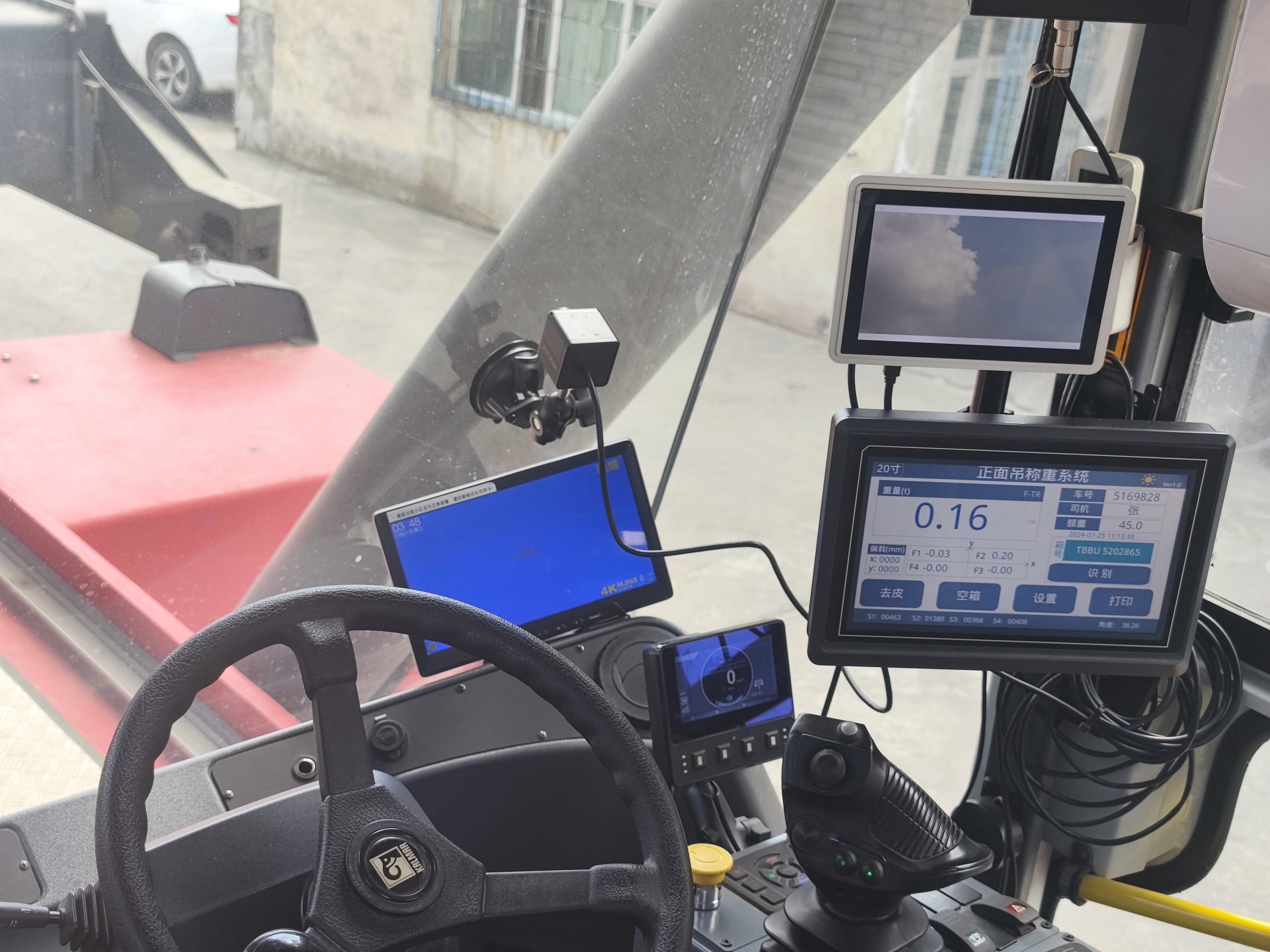

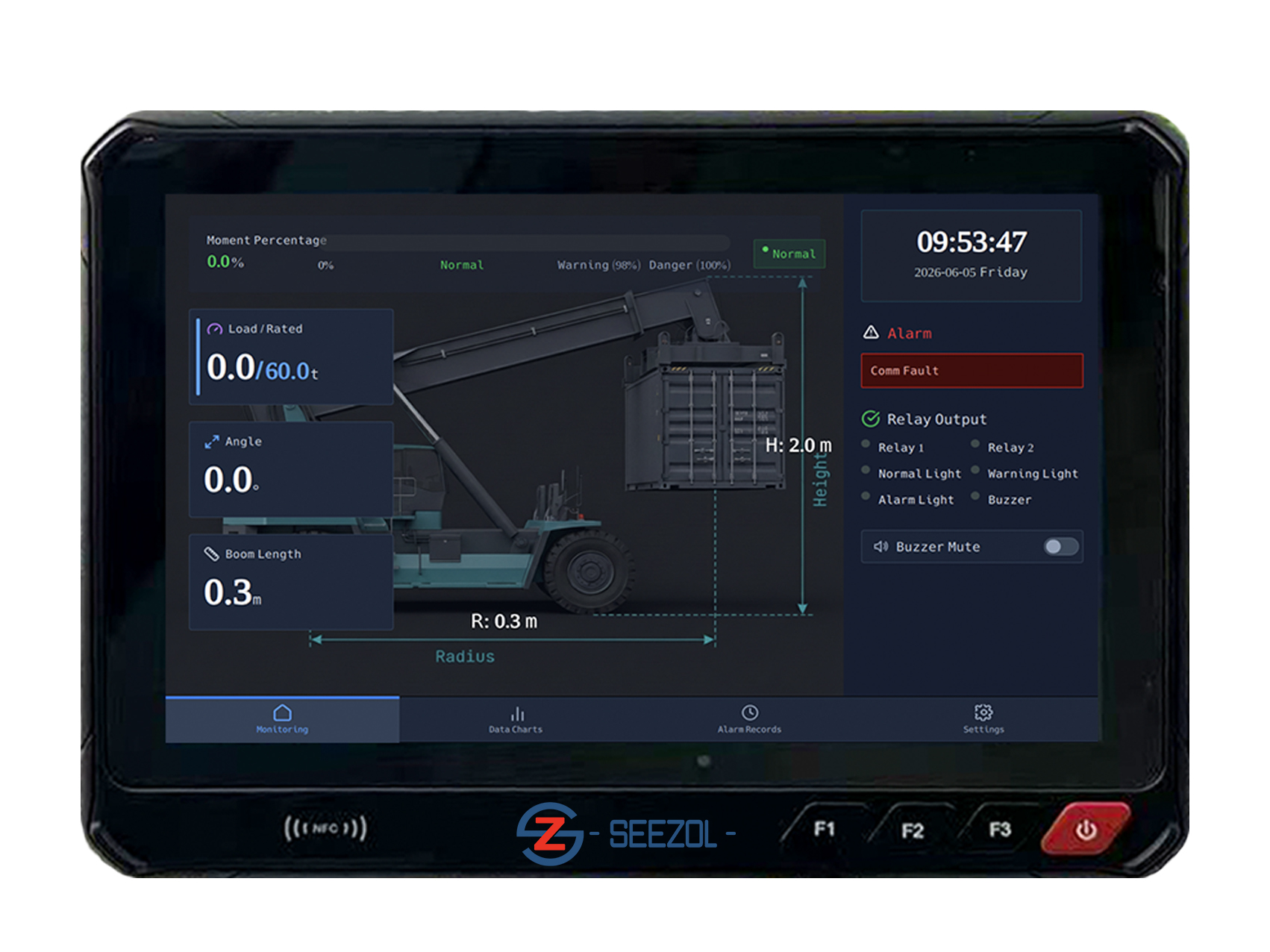

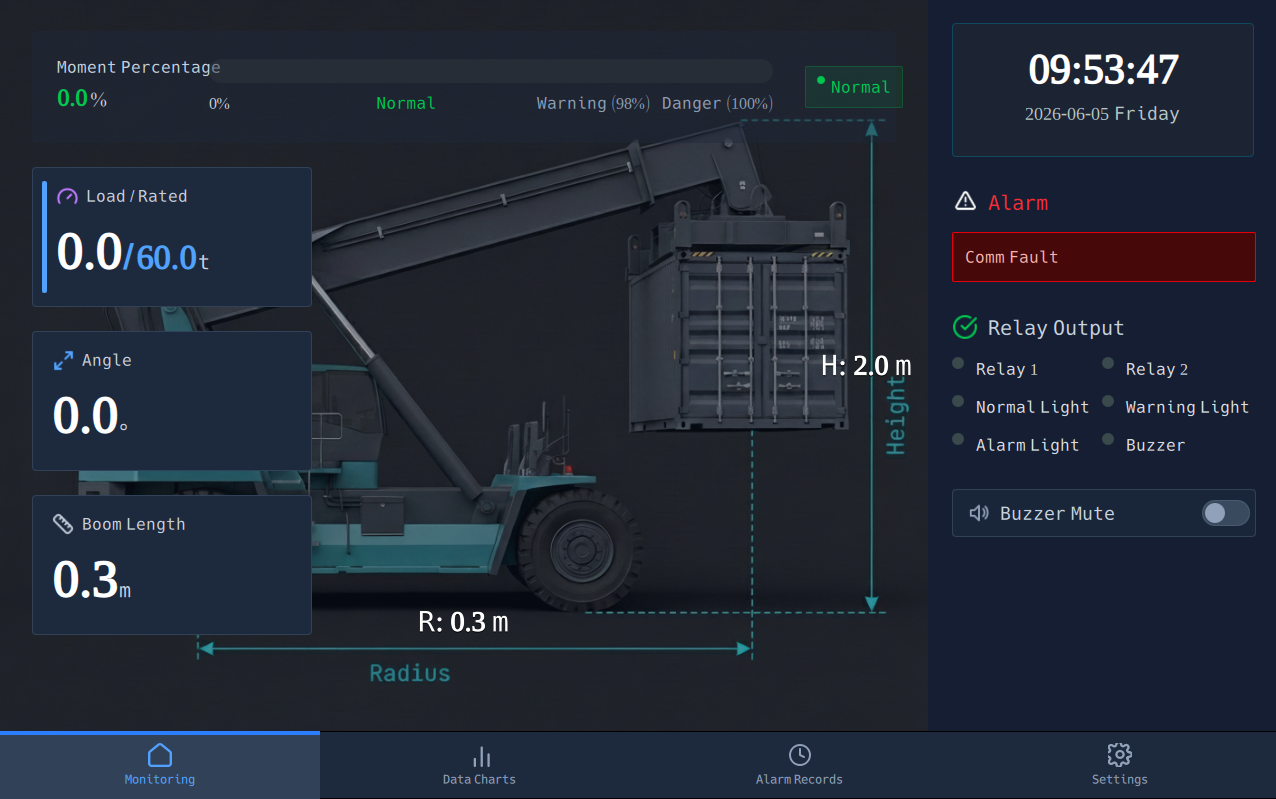

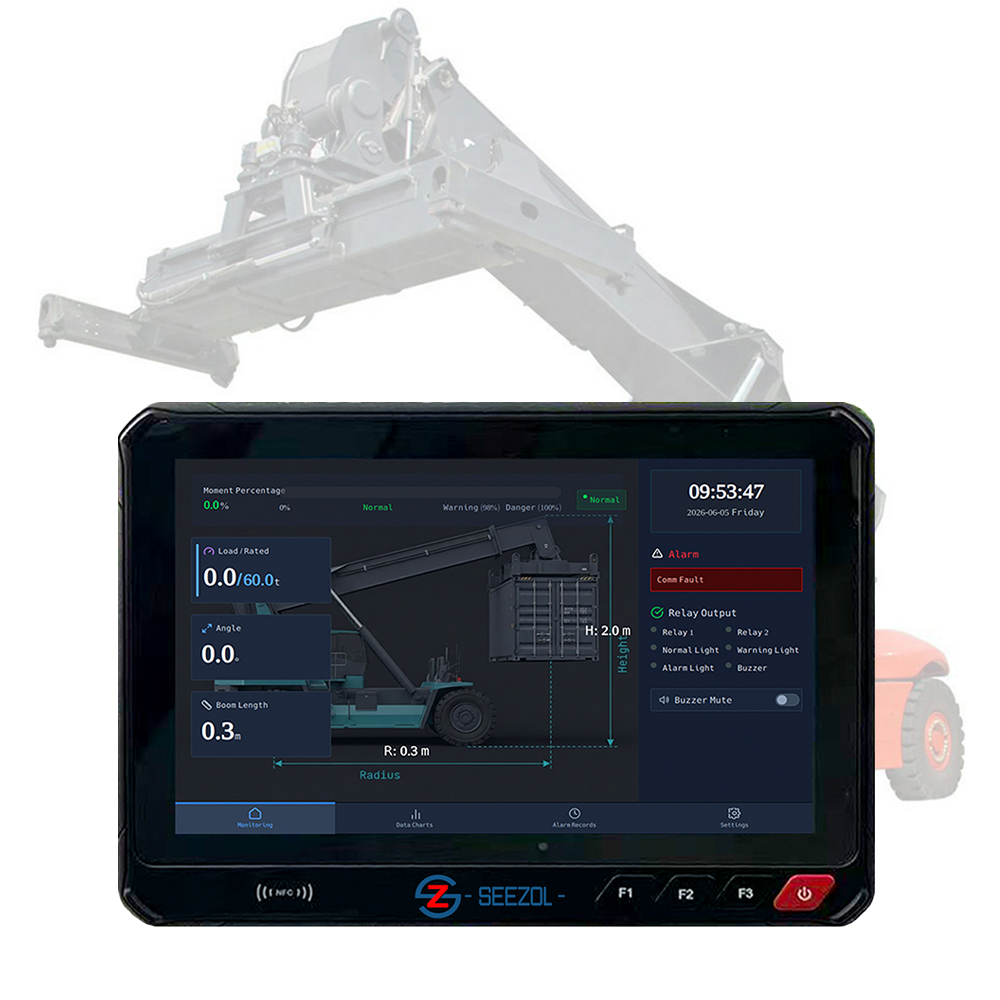

- Monitor (cabin display)

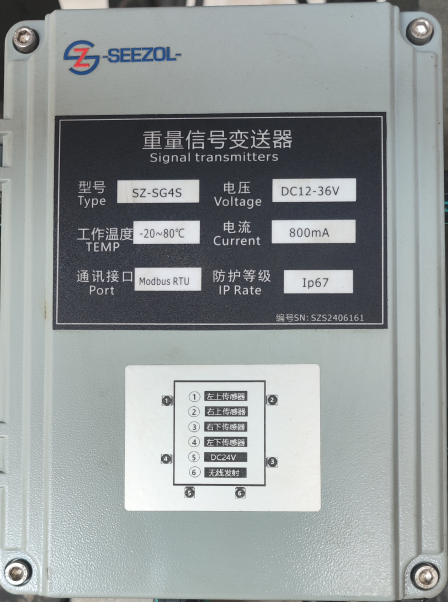

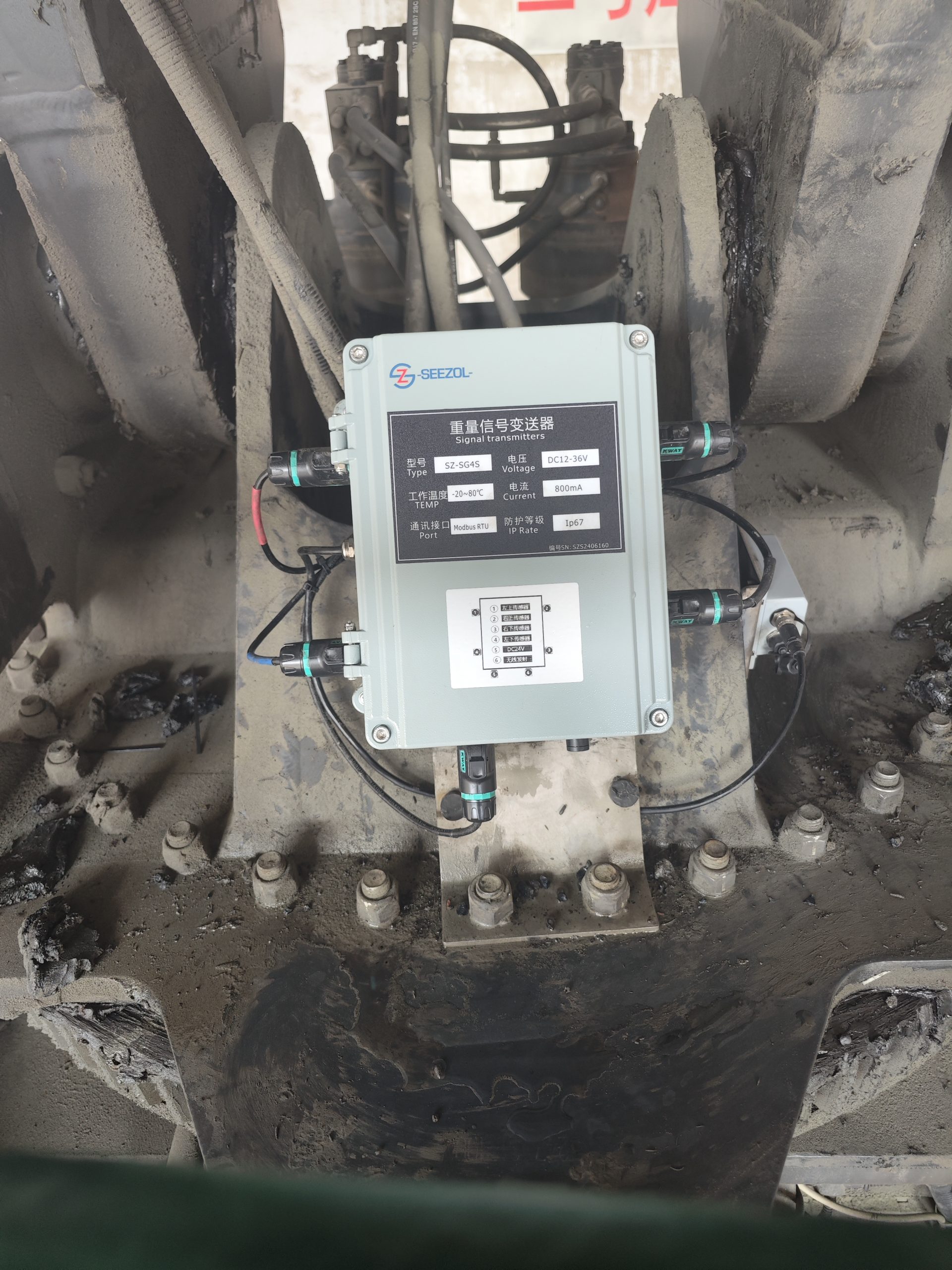

- Transmissor de sinal
- Sensor de pressão
Caso de aplicação

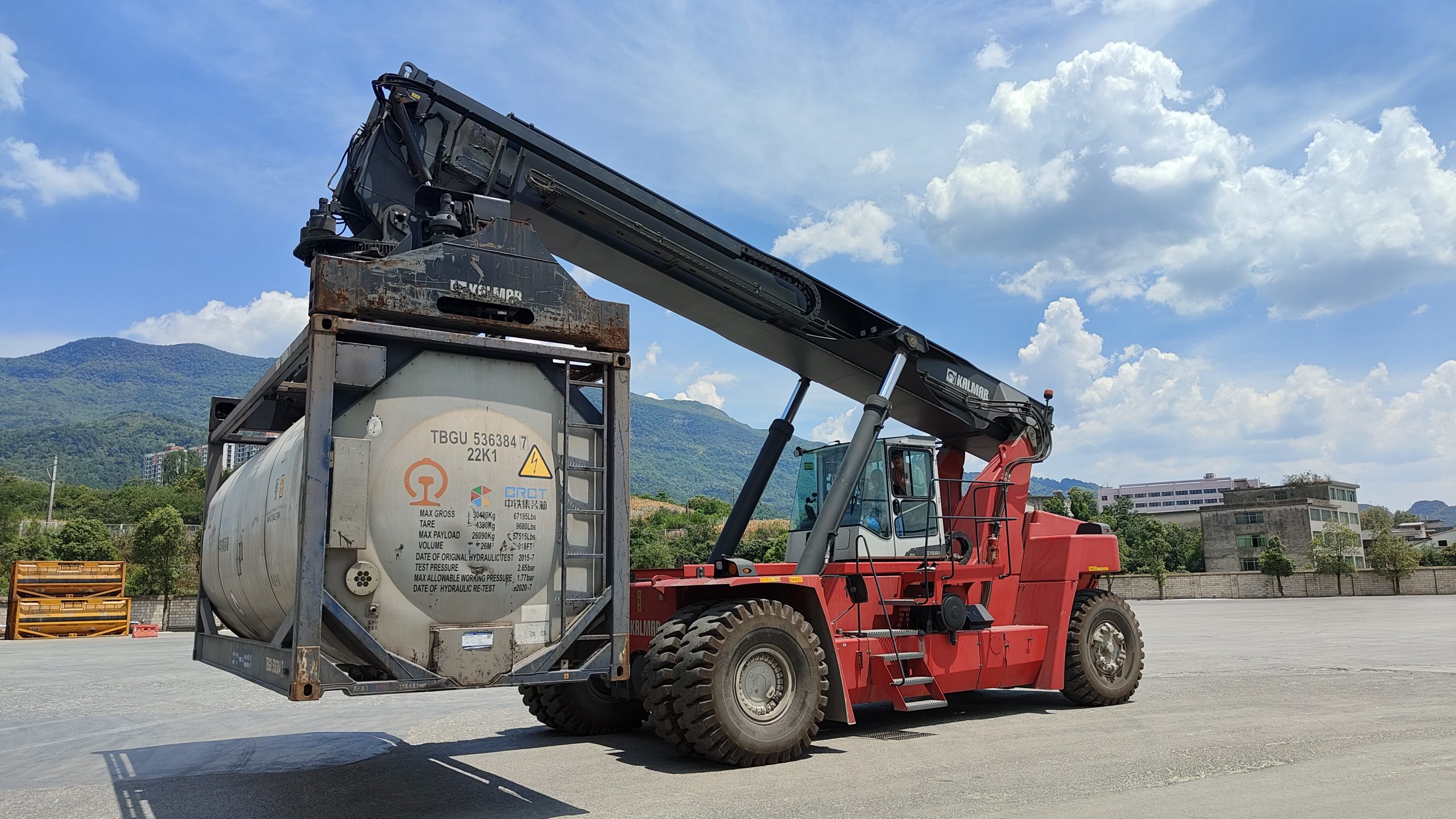

A mixed-cargo terminal adopted the SeeZol reachstacker indicator to flag off-center containers at the lift point, reducing spreader stress incidents and improving stack stability during high-density storage.
