SZ-RS01 Reachstackers LMI
Présentation du produit
The SeeZol Reachstacker Load Indicator, also functioning as a reachstacker eccentricity-prevention system, provides the operator with effective operation information so the crane can be used effectively within its design parameters. With the help of various signal sensors, the force limiter provides real-time information on boom length, boom angle, working height, working range, rated lifting weight, and actual lifting weight.
It also issues an alarm and outputs a control signal when preset thresholds are reached—including eccentric-load detection that warns before an unstable or off-center container lift can occur. Combined with optional container-number recognition and weight logging, it supports safer, smarter yard operation for terminals handling mixed and unbalanced loads.
Modèles compatibles

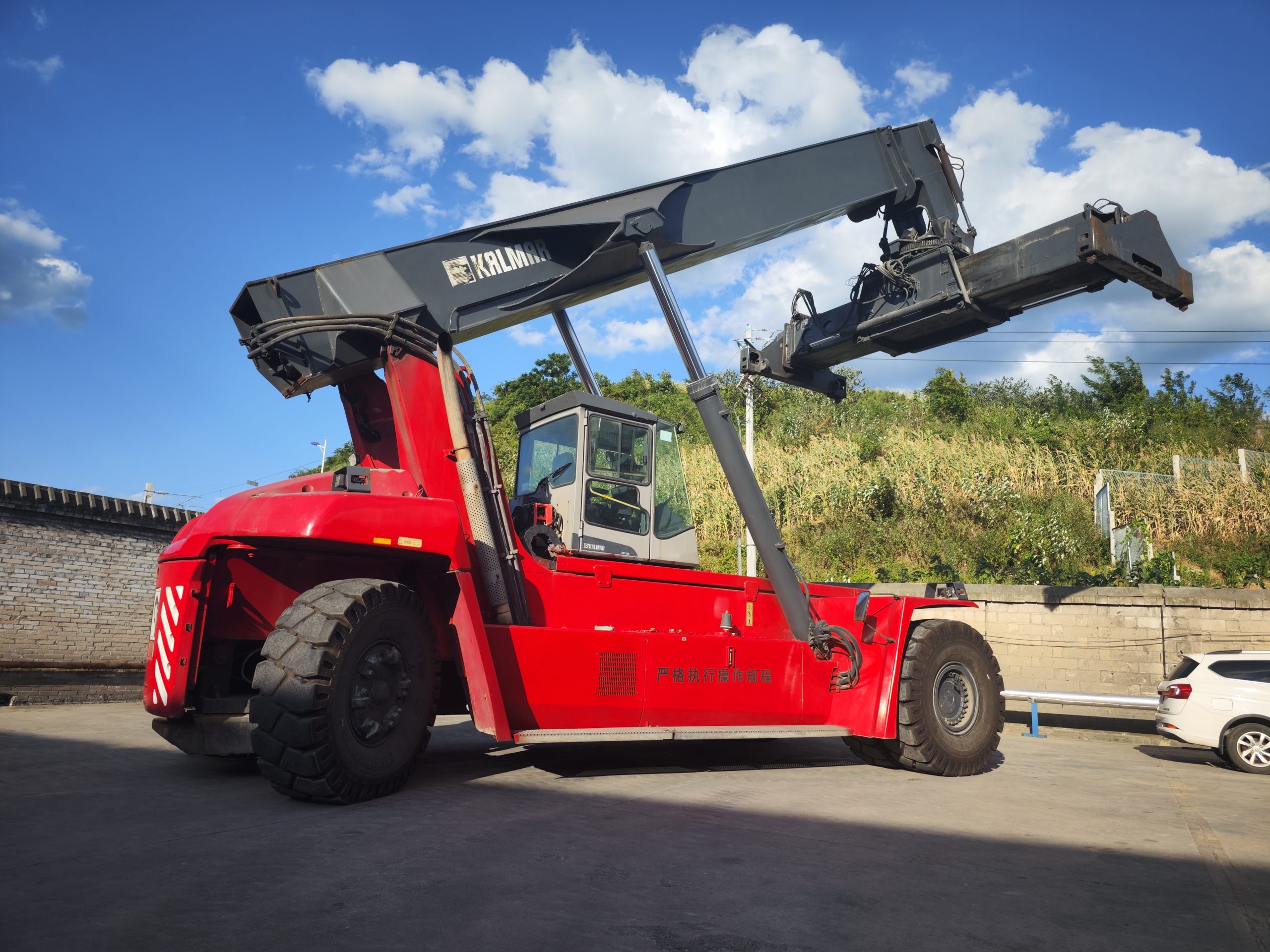

Container reach stackers and empty-container handlers with spreader lifting.
Caractéristiques principales

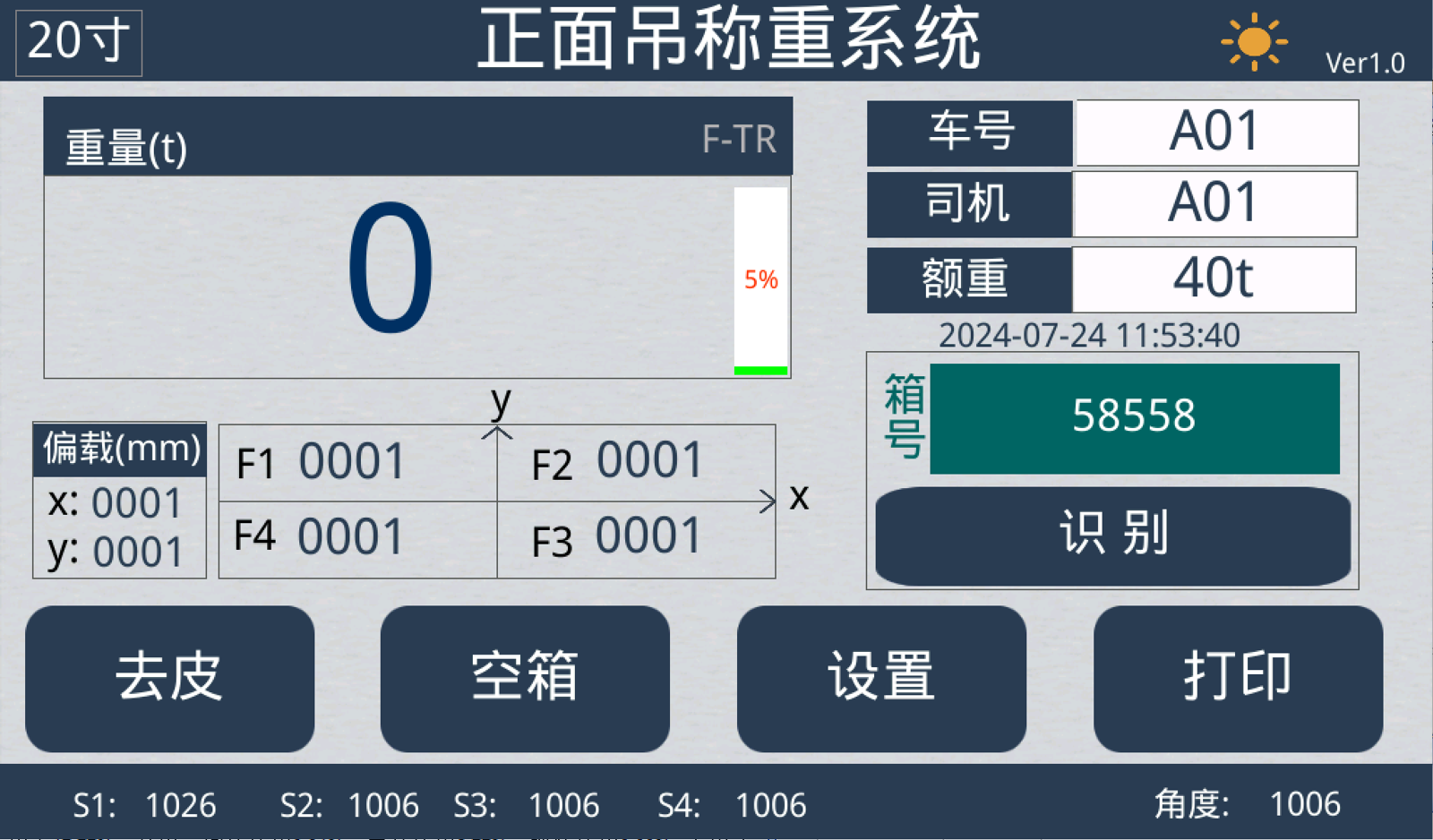

- Affichage du poids en temps réel
- Eccentric / bias-load prevention
- Radius and height display
- Avertissement concernant la taille et le poids
- Overload data record and control output
Paramètres du système
- Tension de fonctionnement : 12 à 36 V CC
- Température de fonctionnement : -20 °C à +70 °C
- Température de stockage : -20 °C à +70 °C
- Erreur système : ±3%
- Erreur d'affichage : ±5 %
- Capacité des contacts du relais : 220 V CA, 3 A
- Niveau de protection : IP65
Principaux composants
- Length & angle sensor
- Alarm light

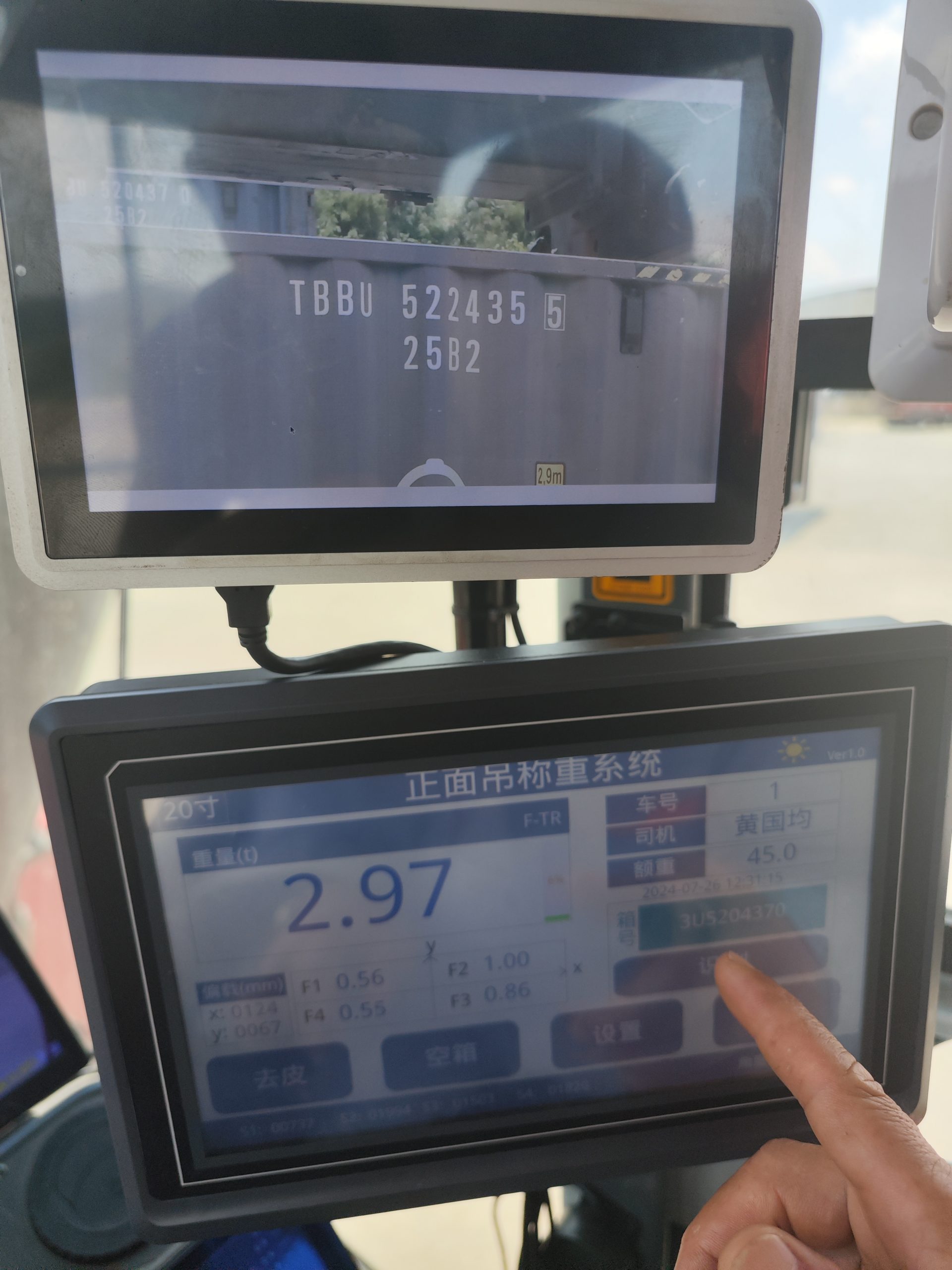

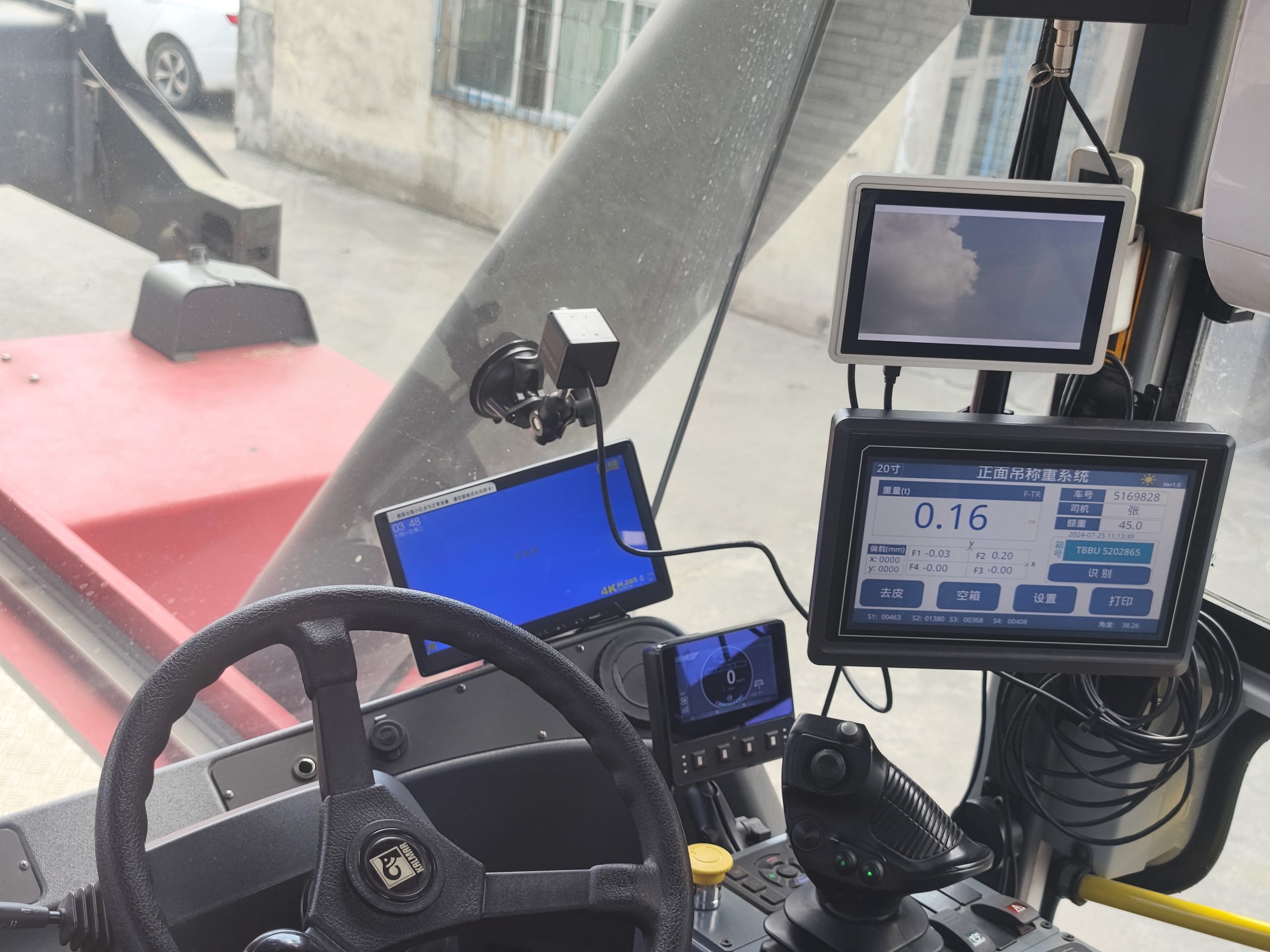

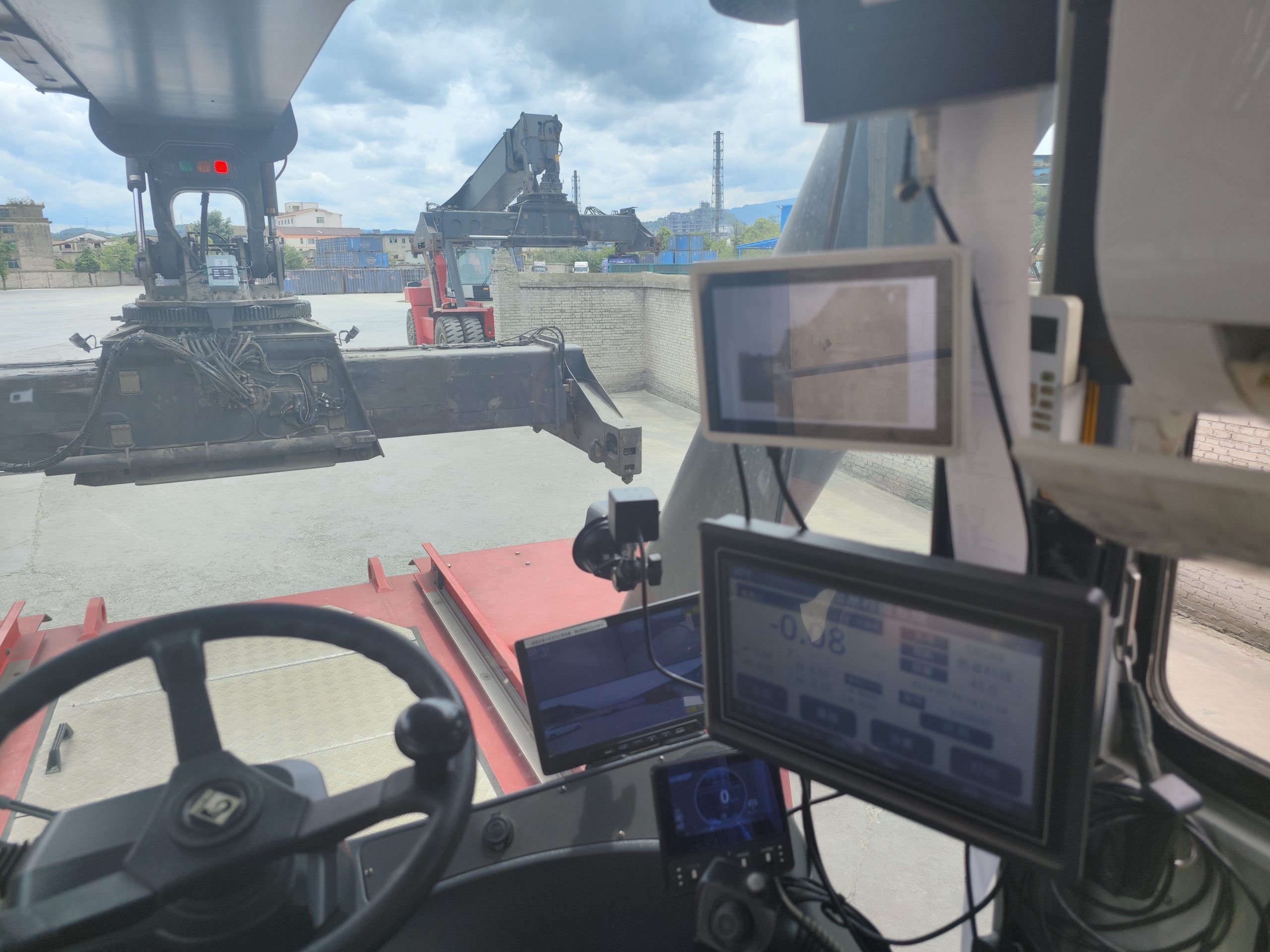

- Monitor (cabin display)

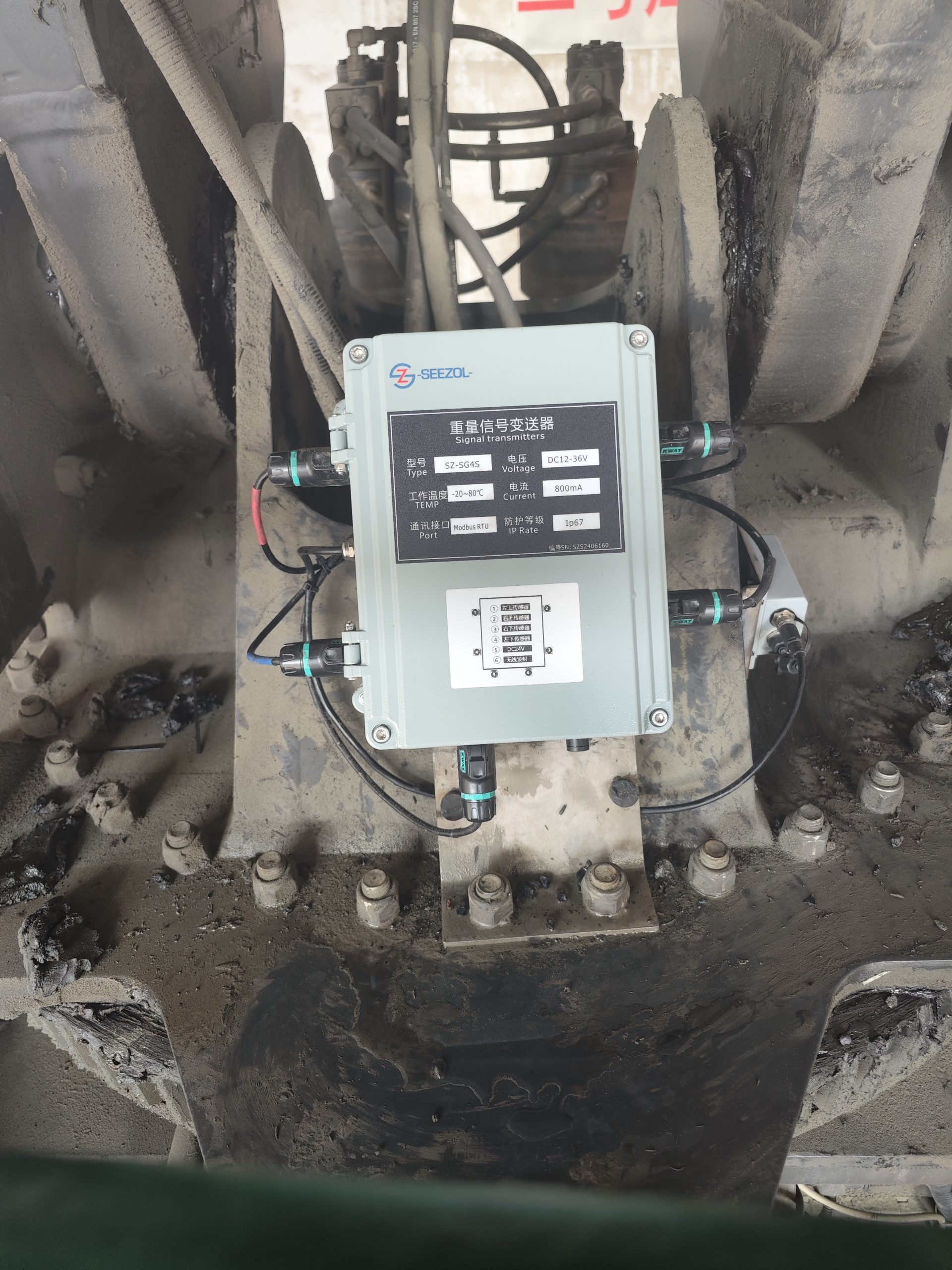

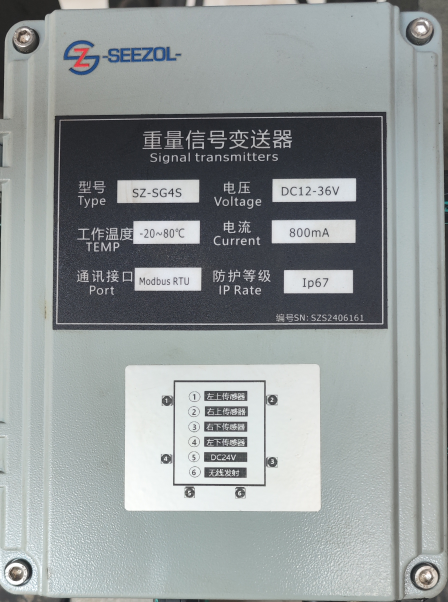

- Émetteur de signaux
- Capteur de pression
Exemple d'application
A mixed-cargo terminal adopted the SeeZol reachstacker indicator to flag off-center containers at the lift point, reducing spreader stress incidents and improving stack stability during high-density storage.
