SZ-RS01 Reachstackers LMI

产品概述

The SeeZol Reachstacker Load Indicator, also functioning as a reachstacker eccentricity-prevention system, provides the operator with effective operation information so the crane can be used effectively within its design parameters. With the help of various signal sensors, the force limiter provides real-time information on boom length, boom angle, working height, working range, rated lifting weight, and actual lifting weight.

It also issues an alarm and outputs a control signal when preset thresholds are reached—including eccentric-load detection that warns before an unstable or off-center container lift can occur. Combined with optional container-number recognition and weight logging, it supports safer, smarter yard operation for terminals handling mixed and unbalanced loads.

适用机型

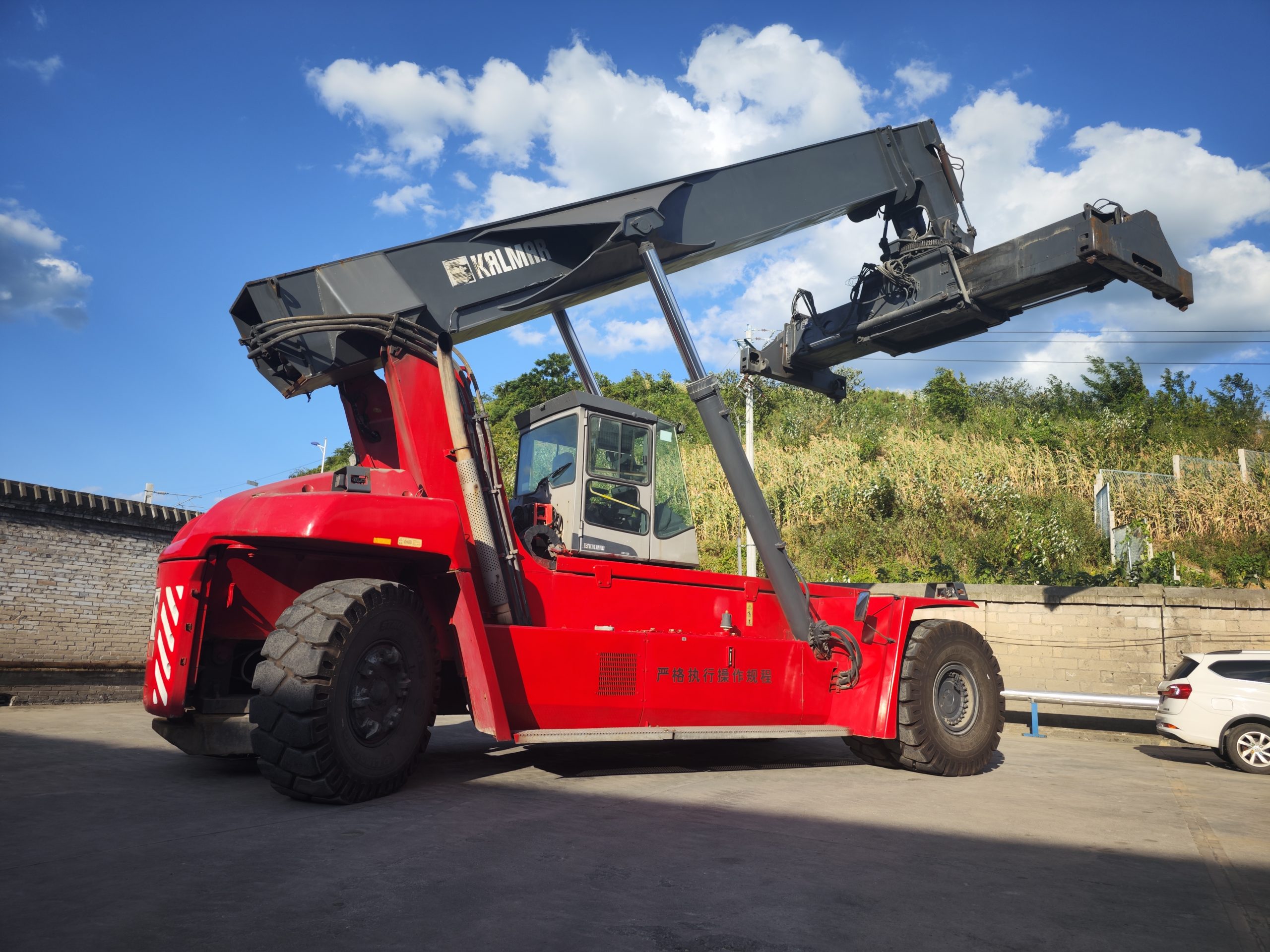

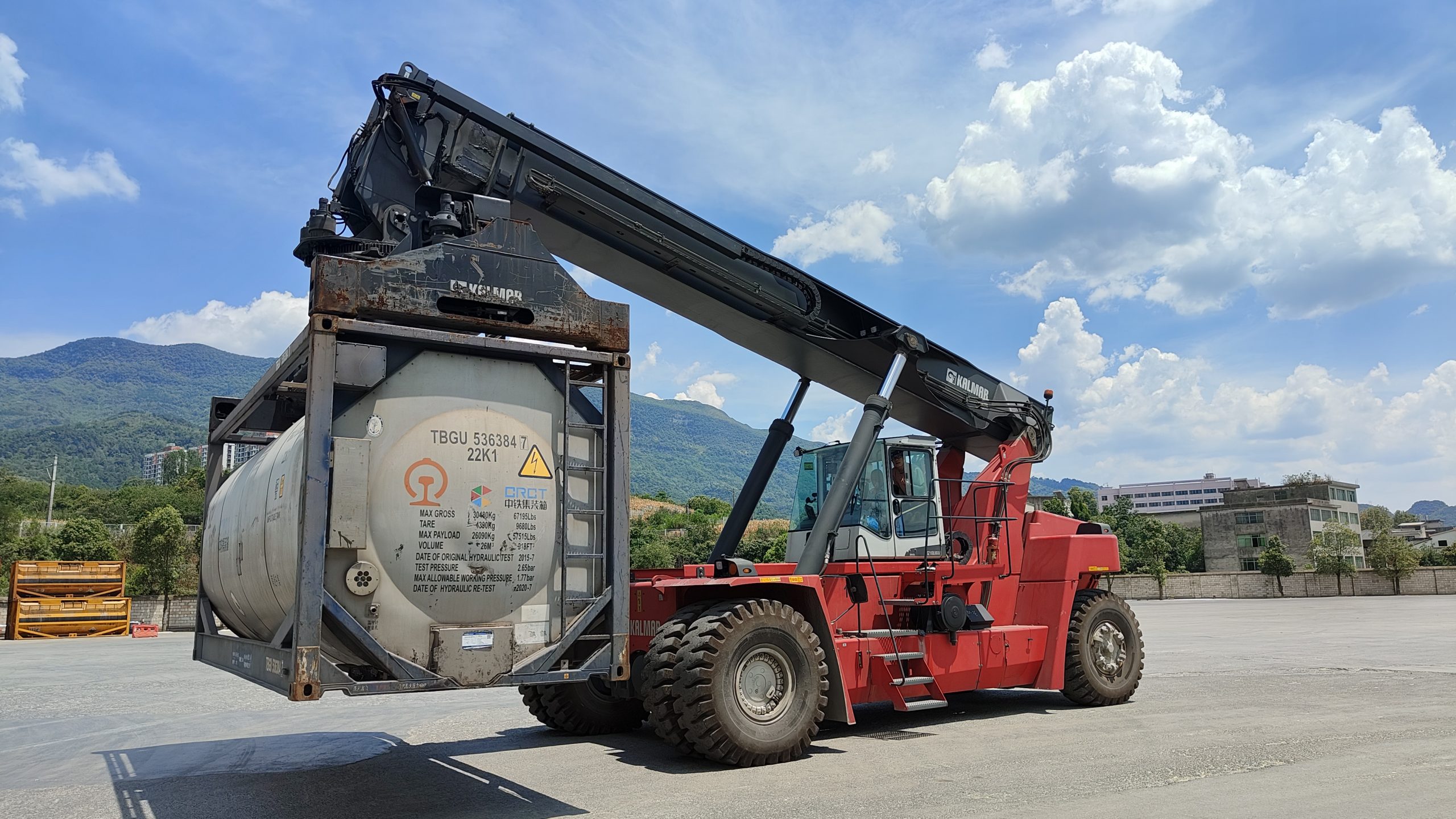

Container reach stackers and empty-container handlers with spreader lifting.

主要特点

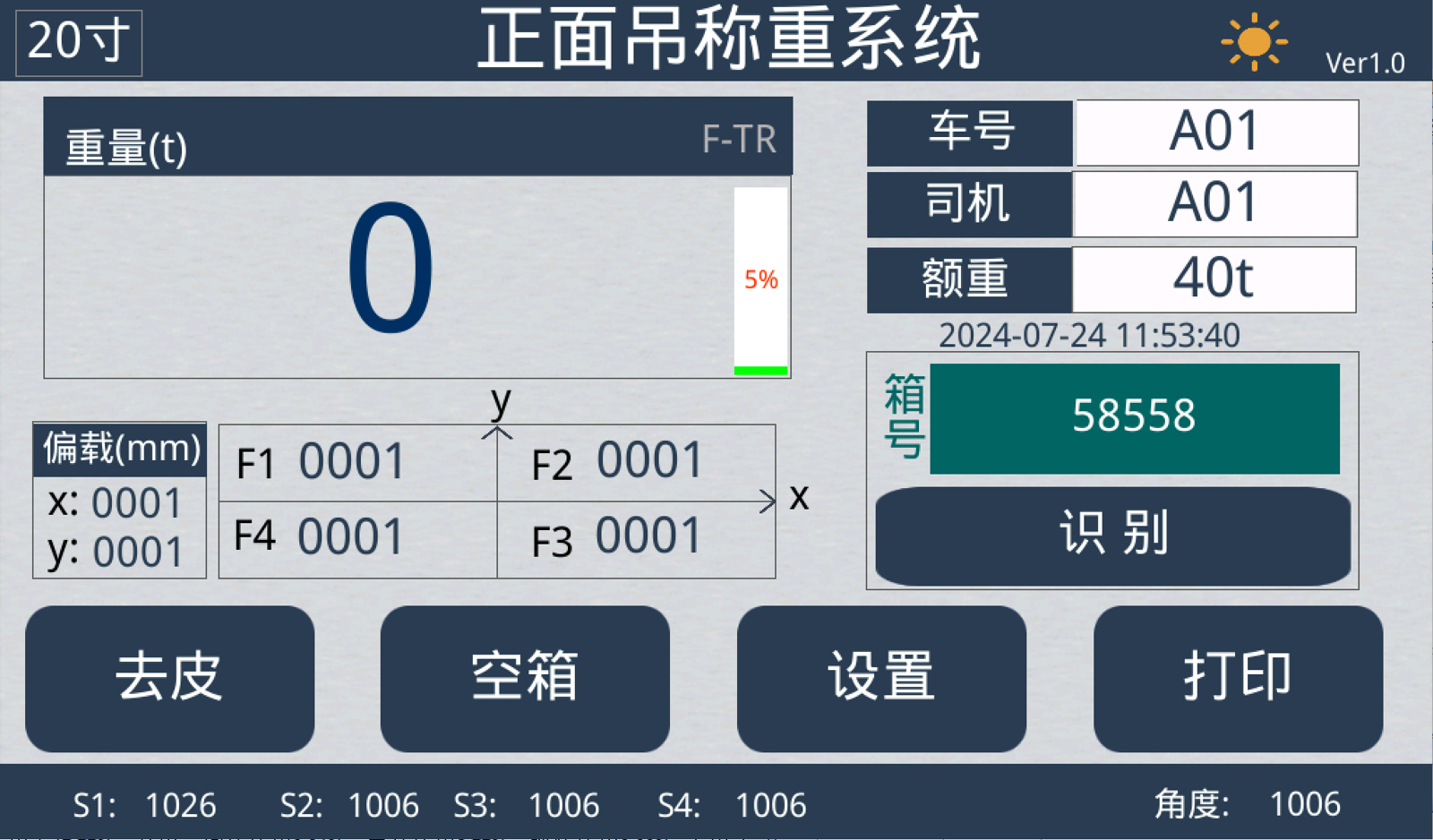

• 实时重量显示

• Eccentric / bias-load prevention

• Radius and height display

• 身高和体重提示

• Overload data record and control output

系统参数

• 工作电压：DC12–36V

• 工作温度：-20℃ ~ +70℃

• 储存温度：-20℃ ~ +70℃

• 系统错误：±3%

• 显示误差：±5%

• 继电器触点额定值：AC220V 3A

• 防护等级:IP65;

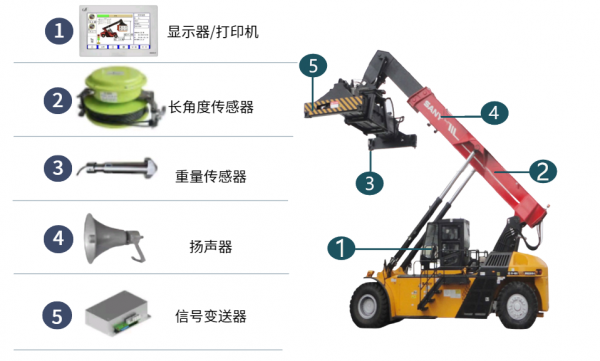

主要组件

• Length & angle sensor

• Alarm light

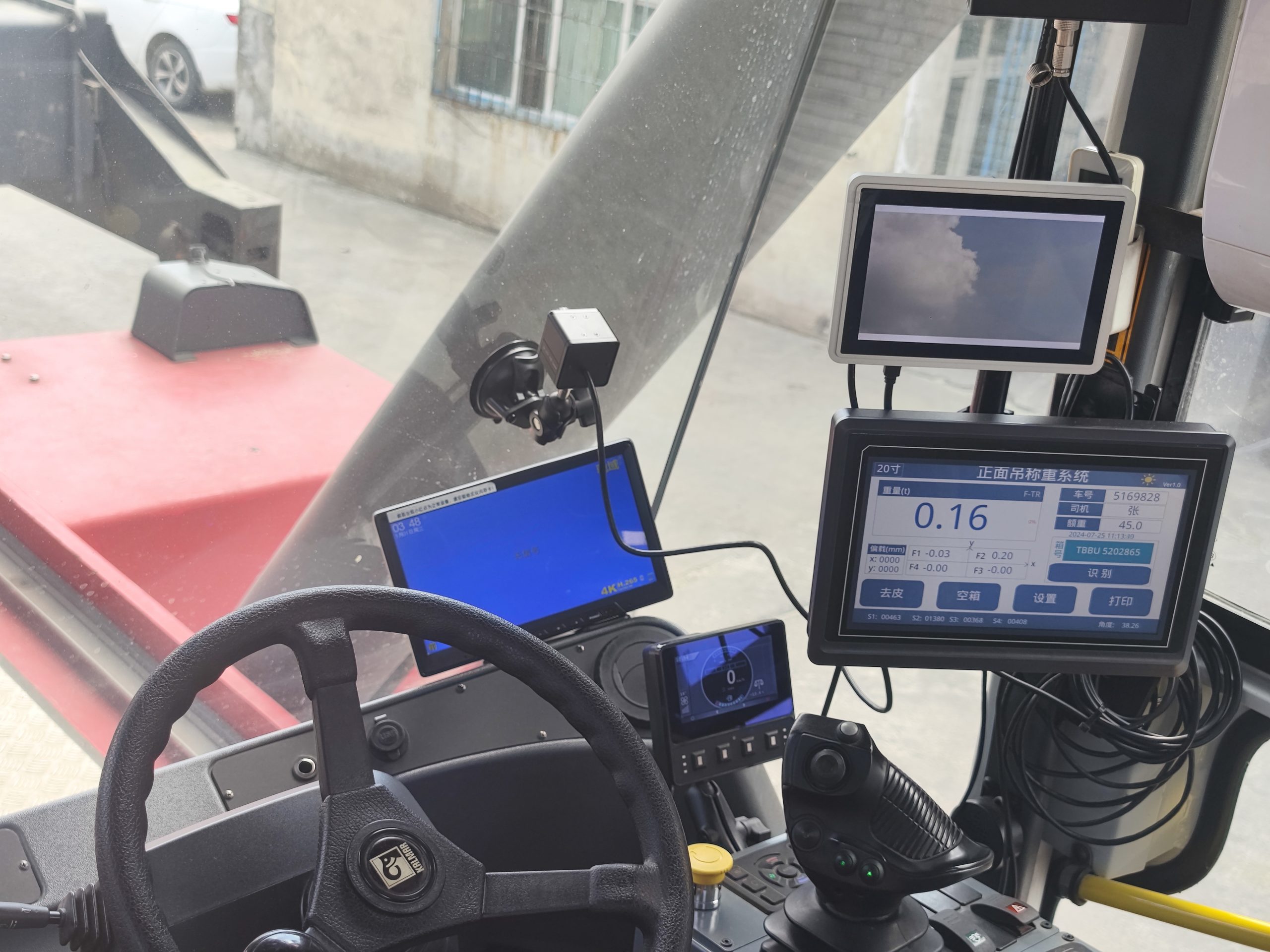

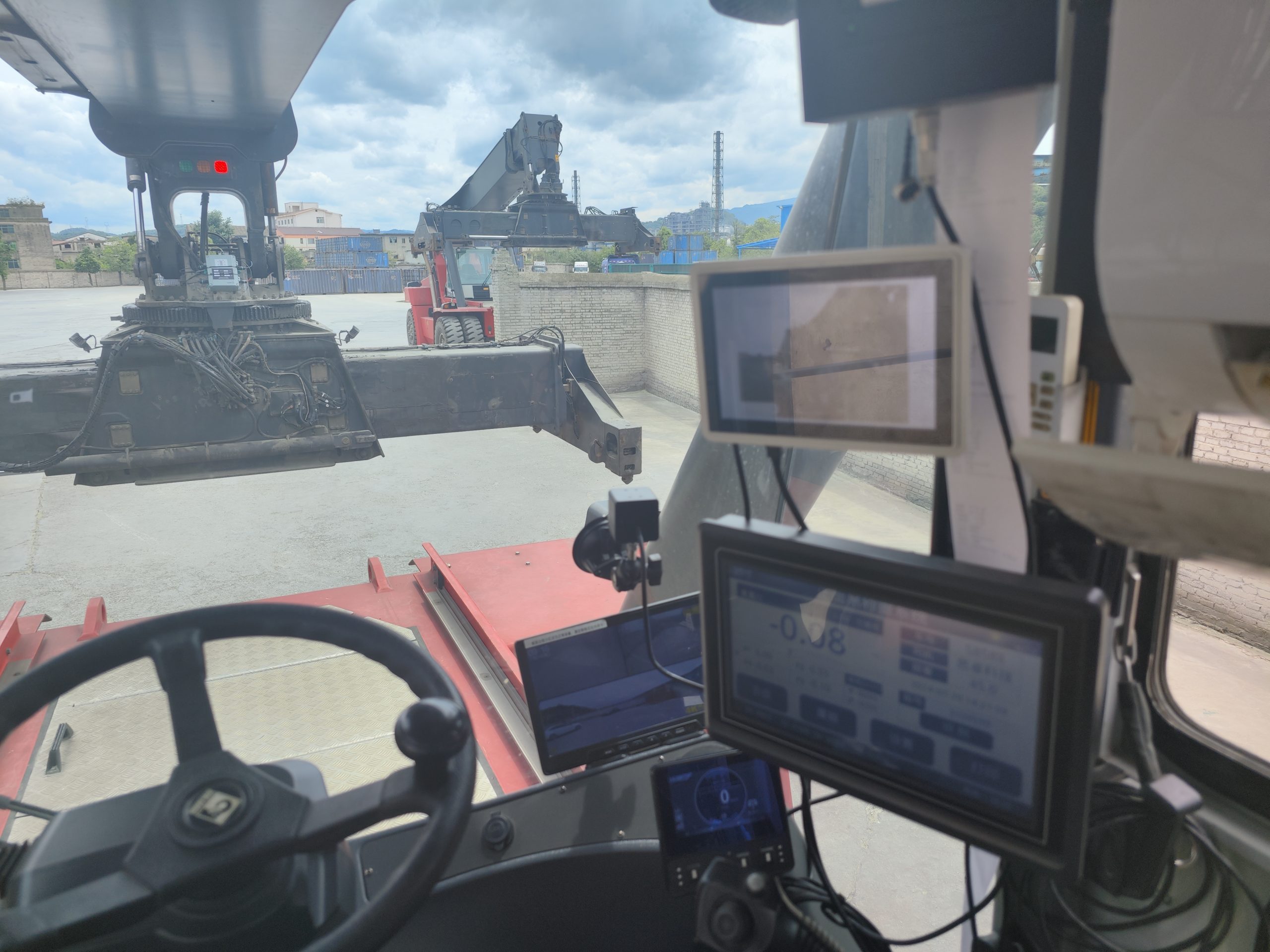

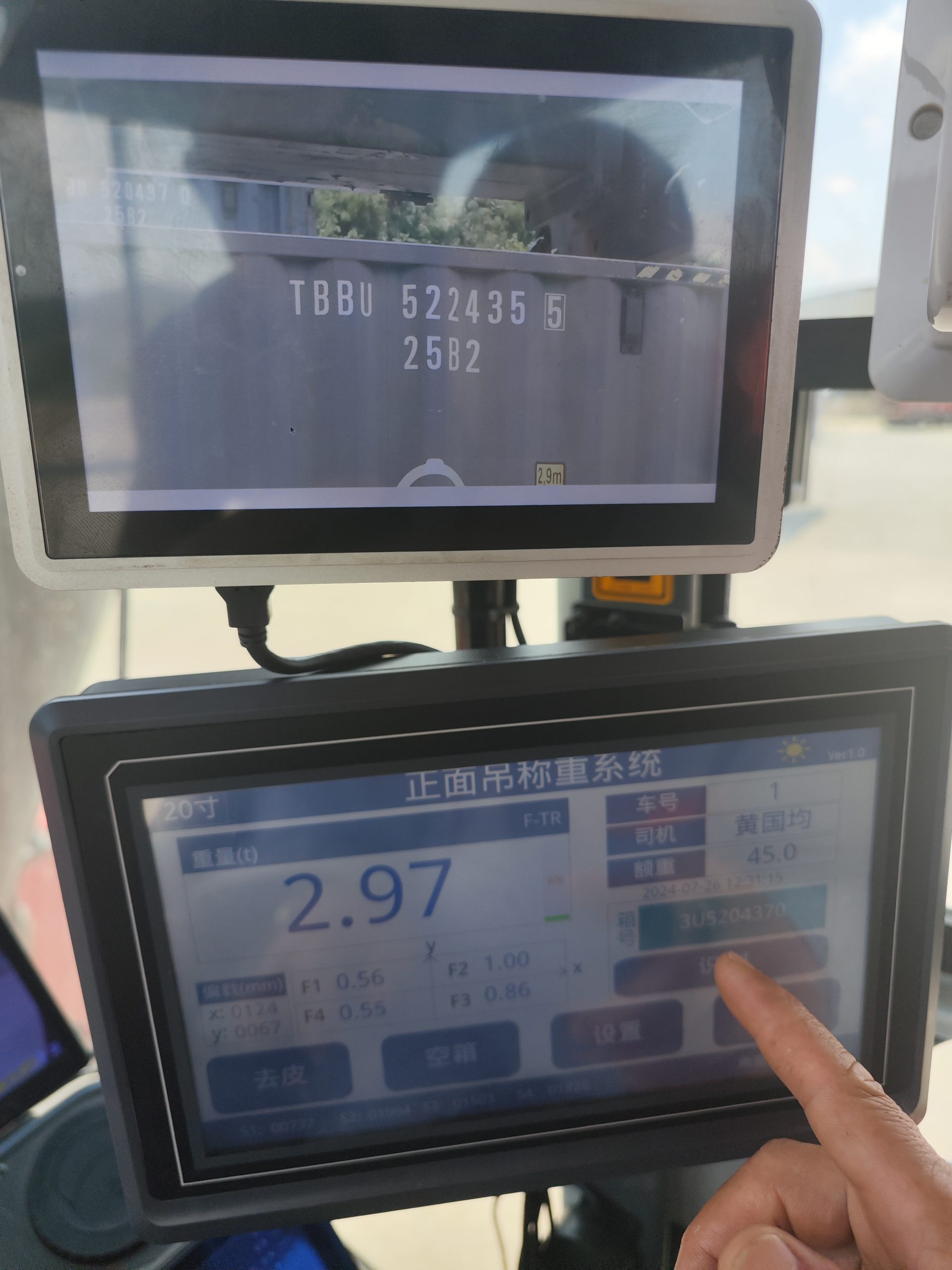

• Monitor (cabin display)

• 信号发射器

• 压力传感器

应用案例

A mixed-cargo terminal adopted the SeeZol reachstacker indicator to flag off-center containers at the lift point, reducing spreader stress incidents and improving stack stability during high-density storage.
