SZ-RS01 Reachstackers LMI
Descripción general del producto
The SeeZol Reachstacker Load Indicator, also functioning as a reachstacker eccentricity-prevention system, provides the operator with effective operation information so the crane can be used effectively within its design parameters. With the help of various signal sensors, the force limiter provides real-time information on boom length, boom angle, working height, working range, rated lifting weight, and actual lifting weight.

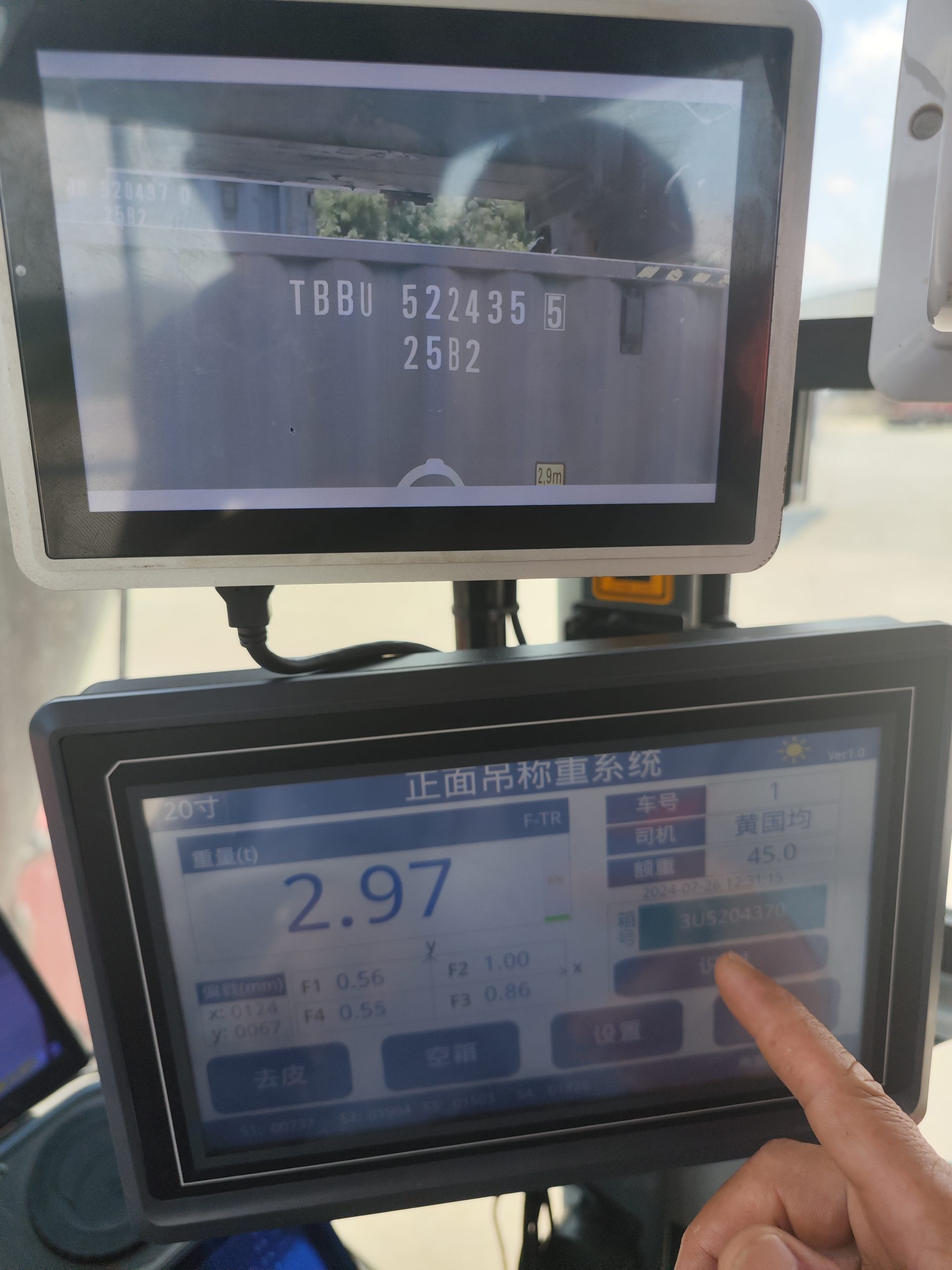

It also issues an alarm and outputs a control signal when preset thresholds are reached—including eccentric-load detection that warns before an unstable or off-center container lift can occur. Combined with optional container-number recognition and weight logging, it supports safer, smarter yard operation for terminals handling mixed and unbalanced loads.
Modelos compatibles

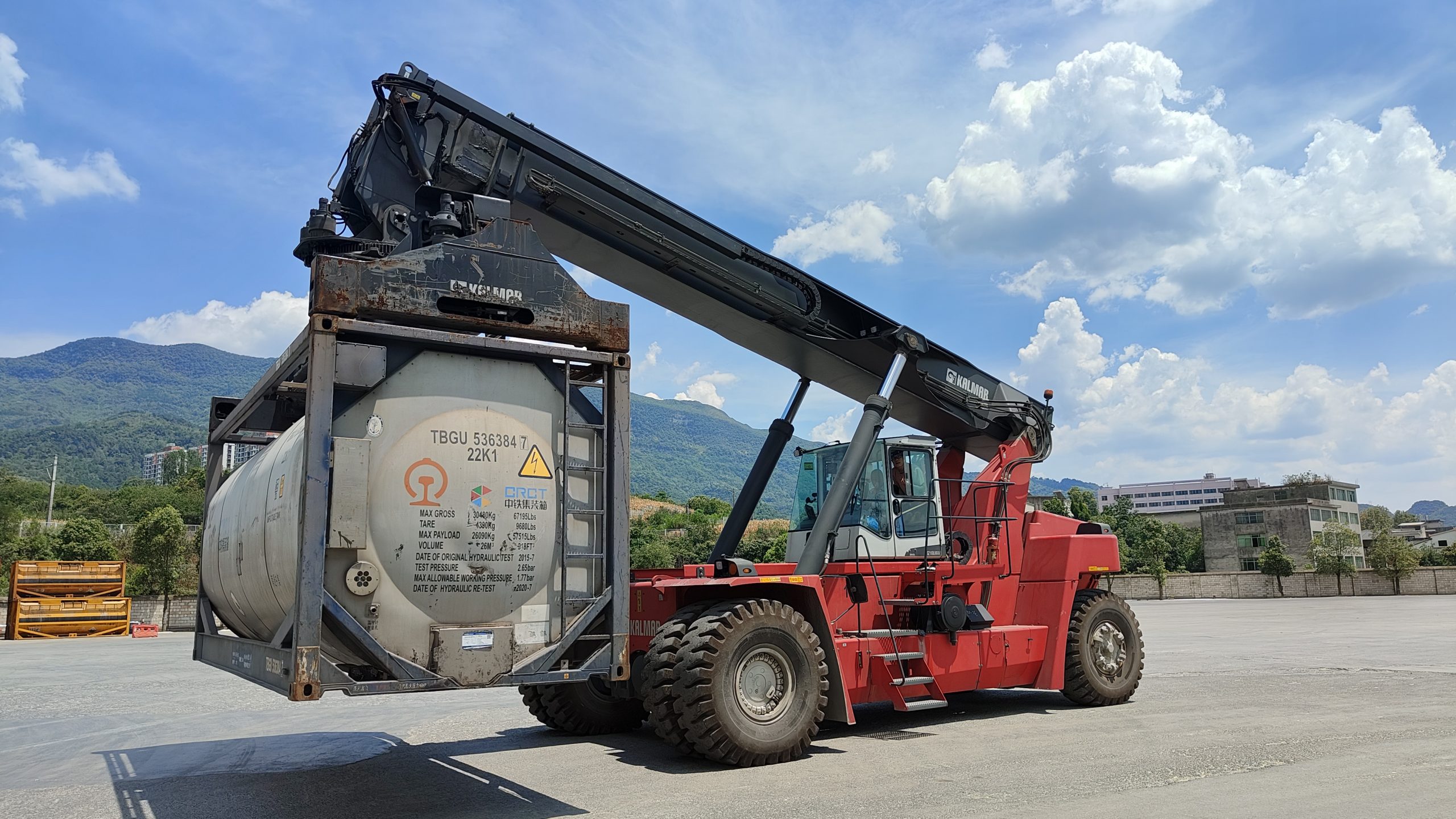

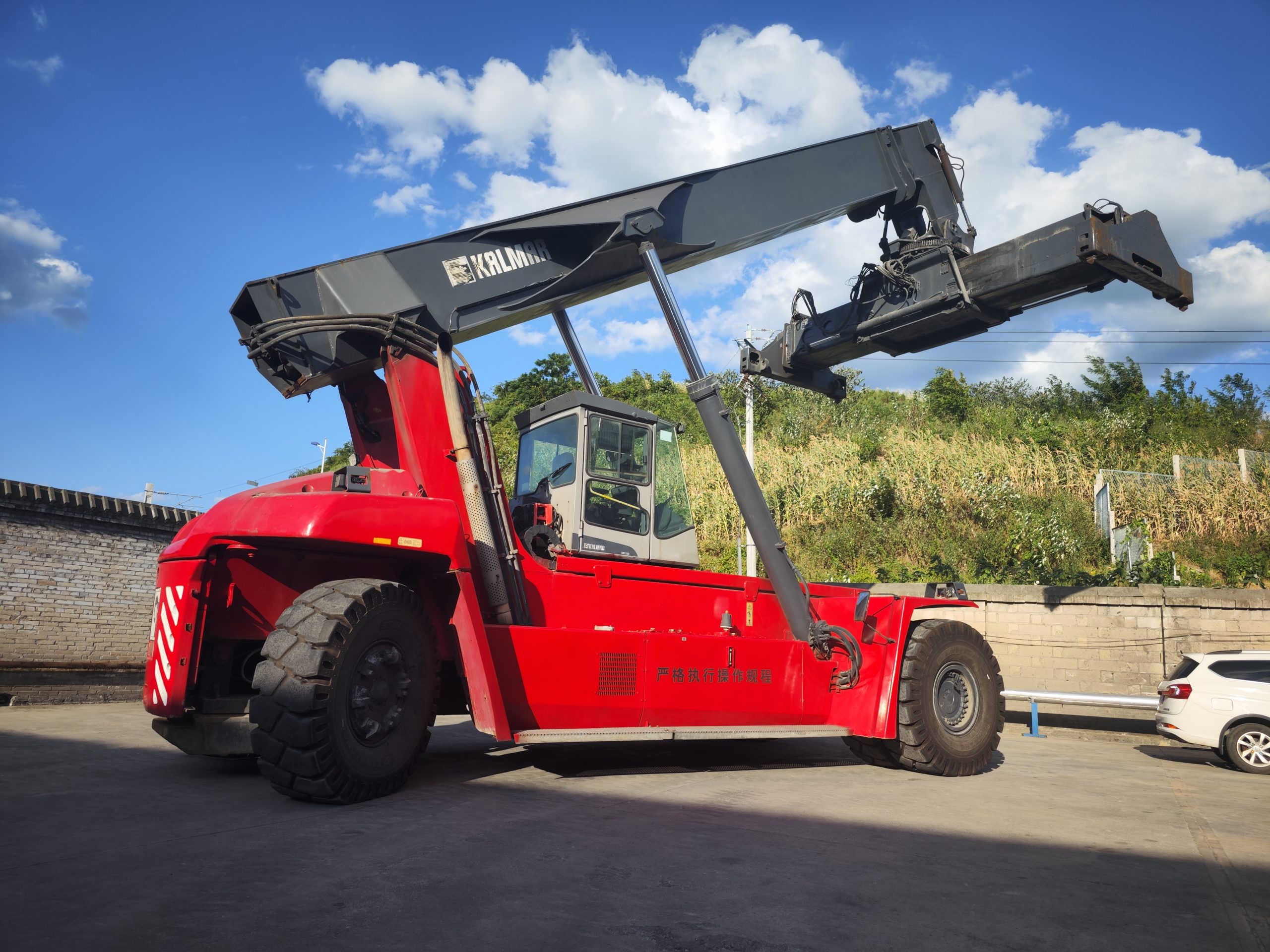

Container reach stackers and empty-container handlers with spreader lifting.
Características principales

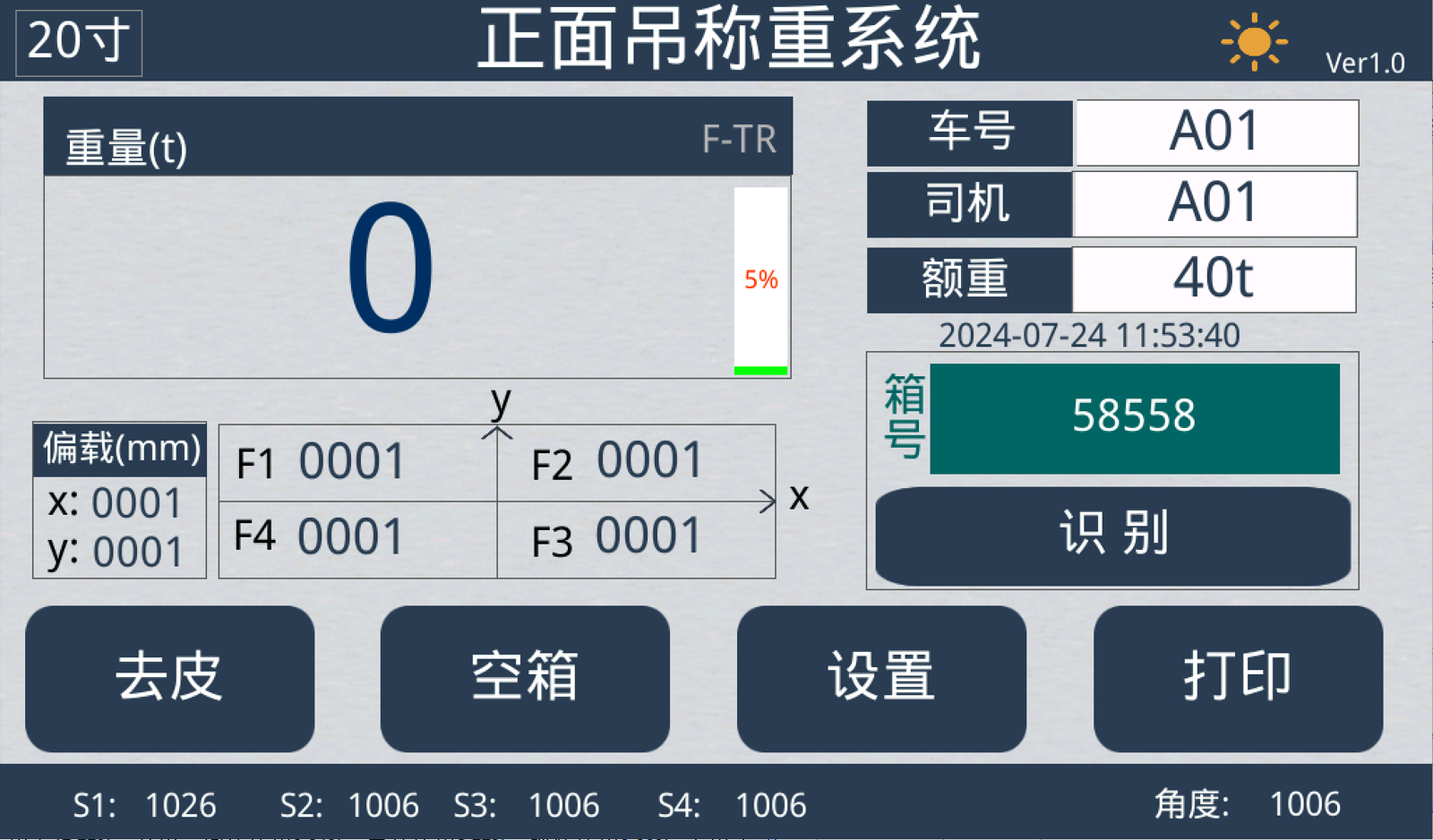

- Visualización del peso en tiempo real
- Eccentric / bias-load prevention
- Radius and height display
- Advertencia sobre la altura y el peso
- Overload data record and control output
Parámetros del sistema
- Tensión de funcionamiento: 12–36 V CC
- Temperatura de funcionamiento: -20 ℃ ~ +70 ℃
- Temperatura de almacenamiento: -20 ℃ ~ +70 ℃
- Error del sistema: ±3%
- Error de visualización: ±5%
- Capacidad de los contactos del relé: 220 V CA, 3 A
- Nivel de protección: IP65

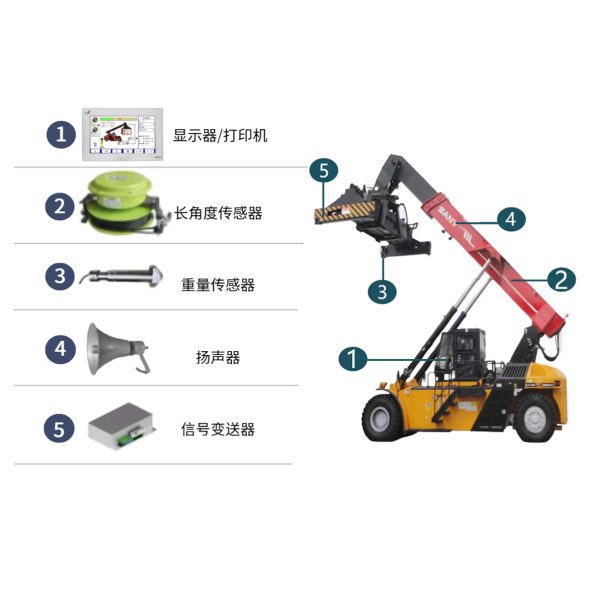

Componentes principales
- Length & angle sensor
- Alarm light

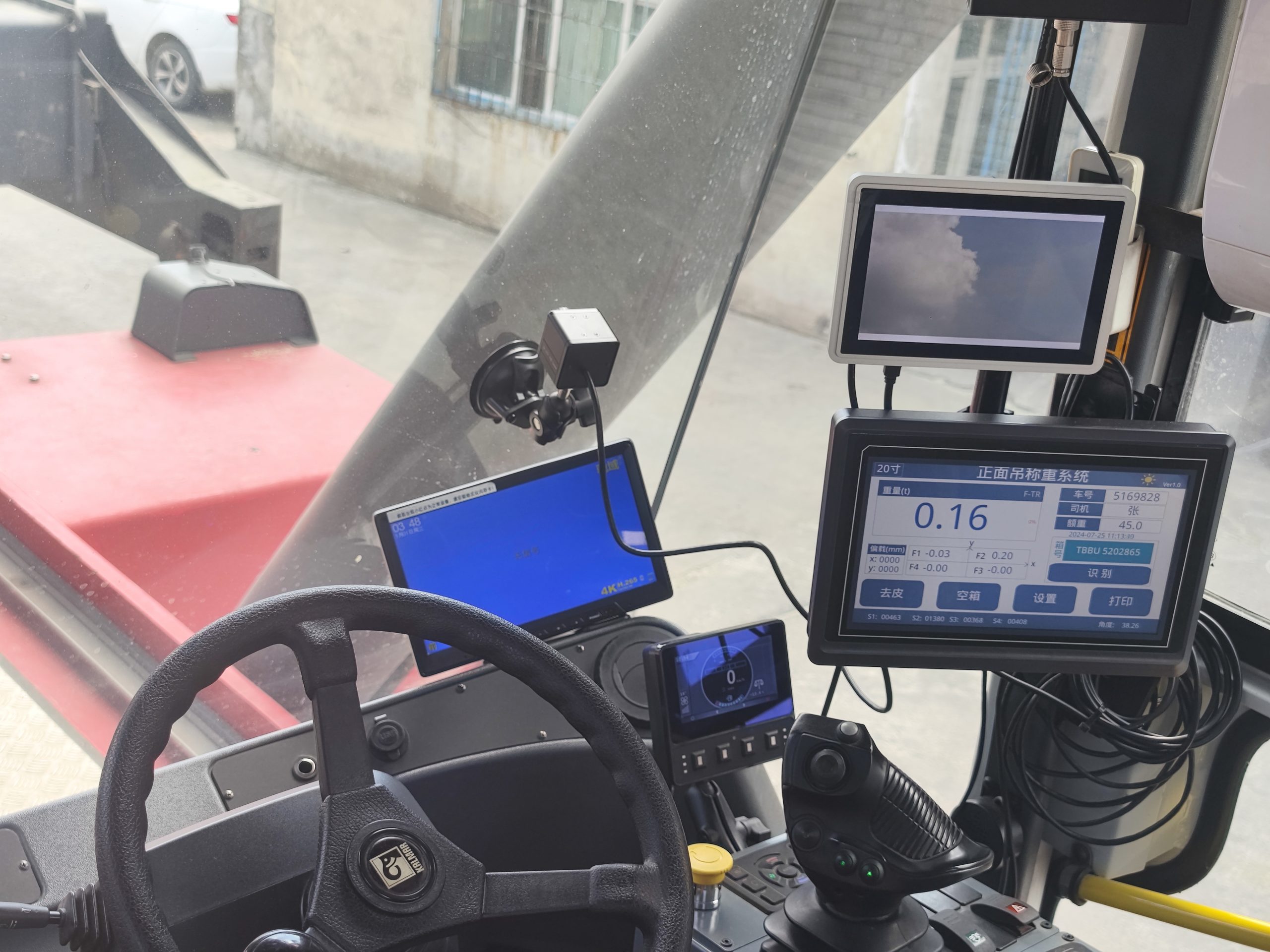

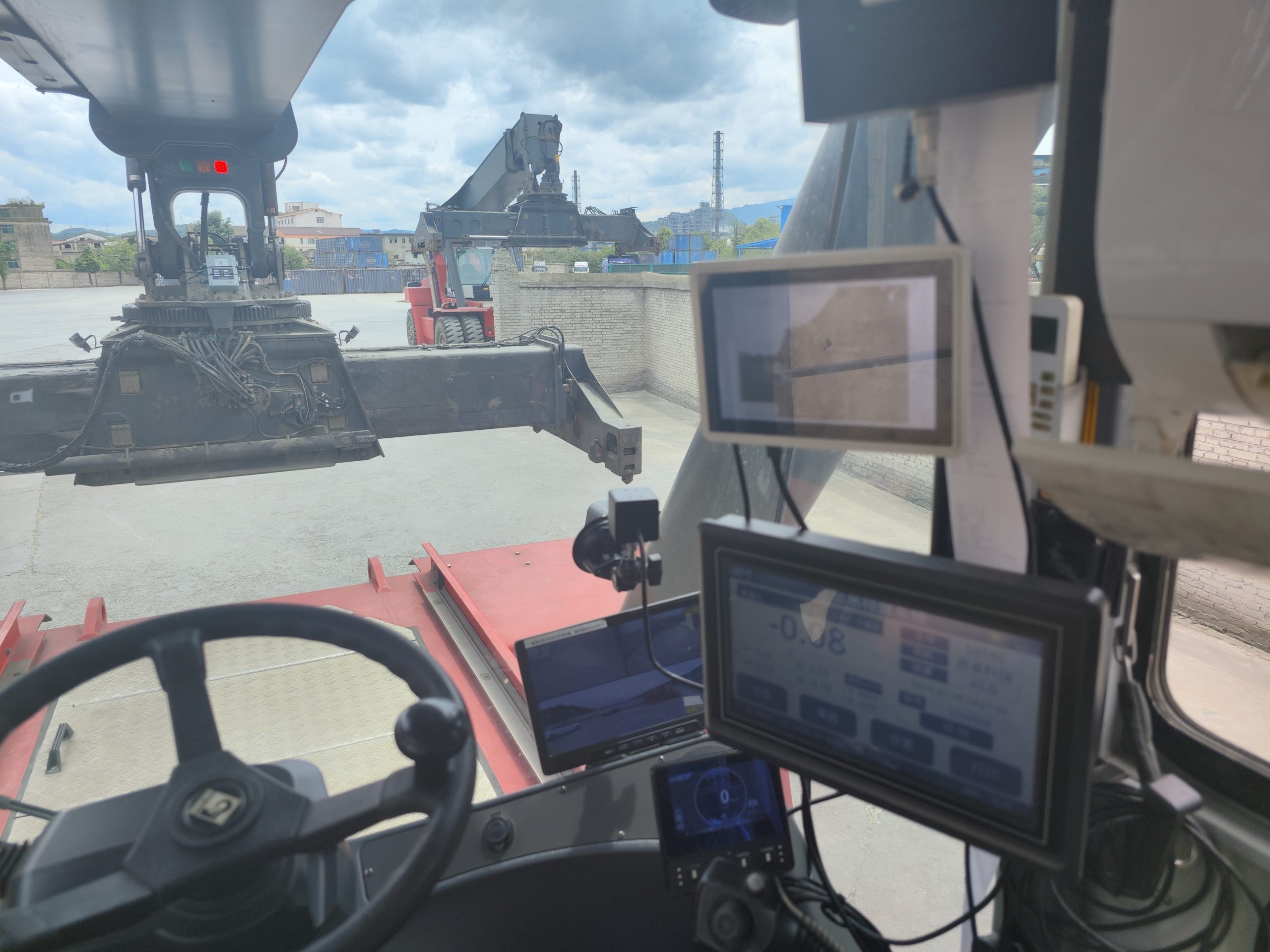

- Monitor (cabin display)

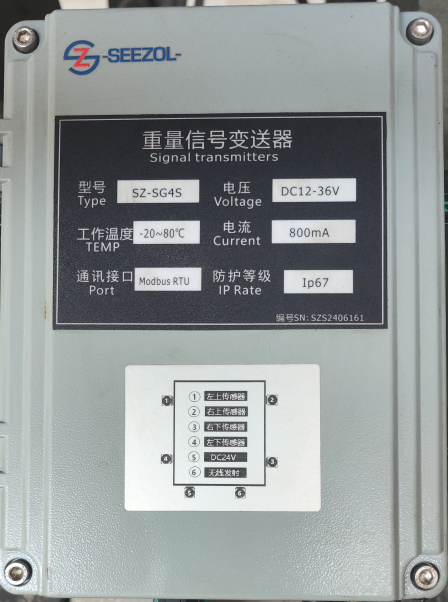

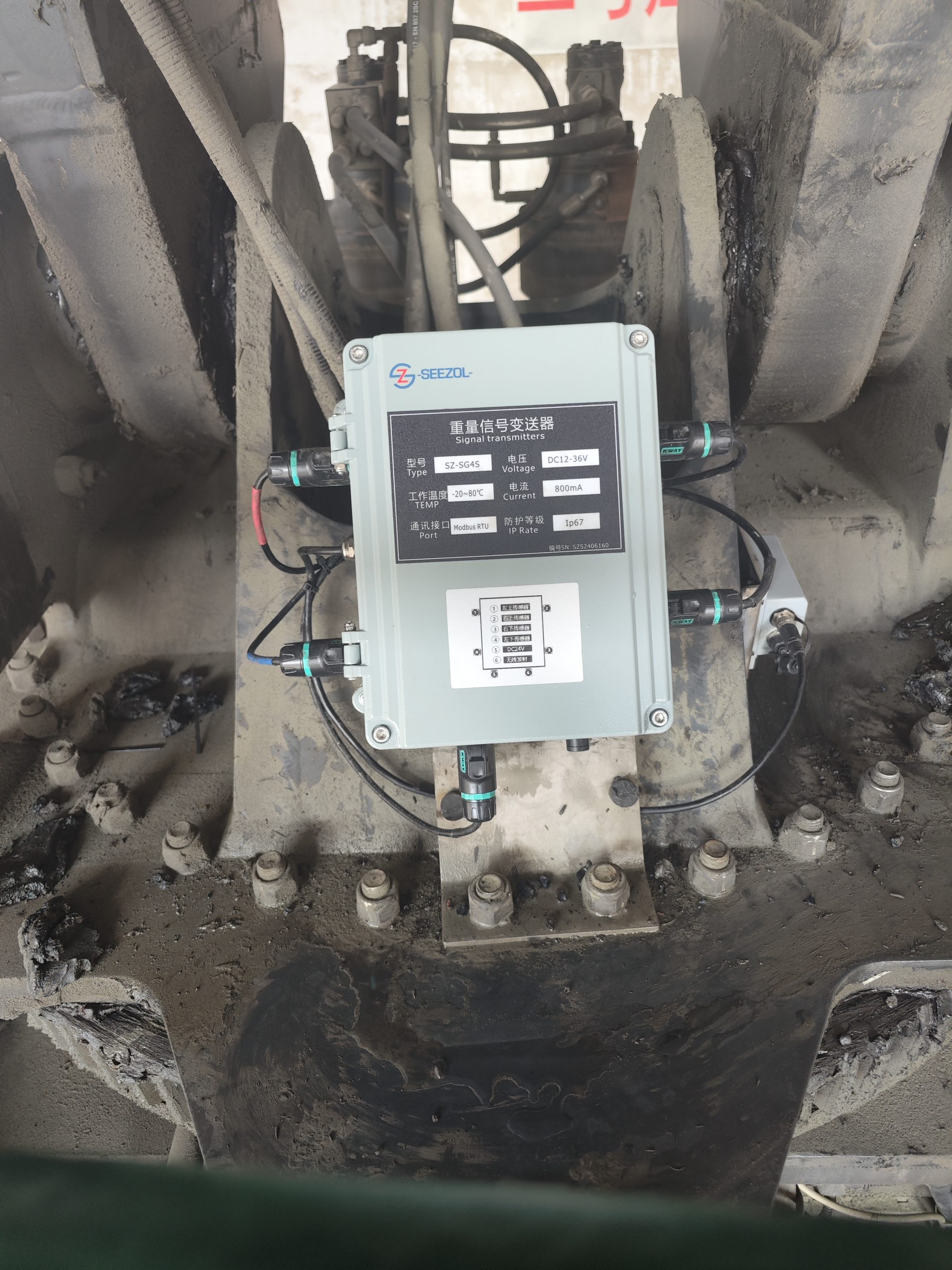

- Signal transmitter

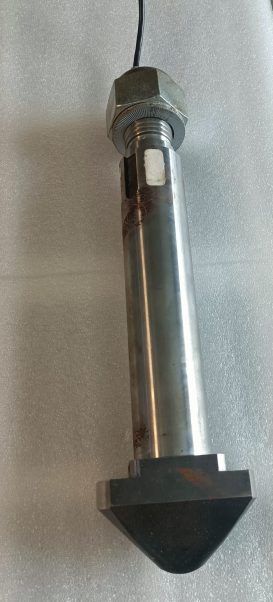

- Sensor de presión
Caso práctico
A mixed-cargo terminal adopted the SeeZol reachstacker indicator to flag off-center containers at the lift point, reducing spreader stress incidents and improving stack stability during high-density storage.
