SZ-RS01 Reachstackers LMI
Обзор продукта
The SeeZol Reachstacker Load Indicator, also functioning as a reachstacker eccentricity-prevention system, provides the operator with effective operation information so the crane can be used effectively within its design parameters. With the help of various signal sensors, the force limiter provides real-time information on boom length, boom angle, working height, working range, rated lifting weight, and actual lifting weight.

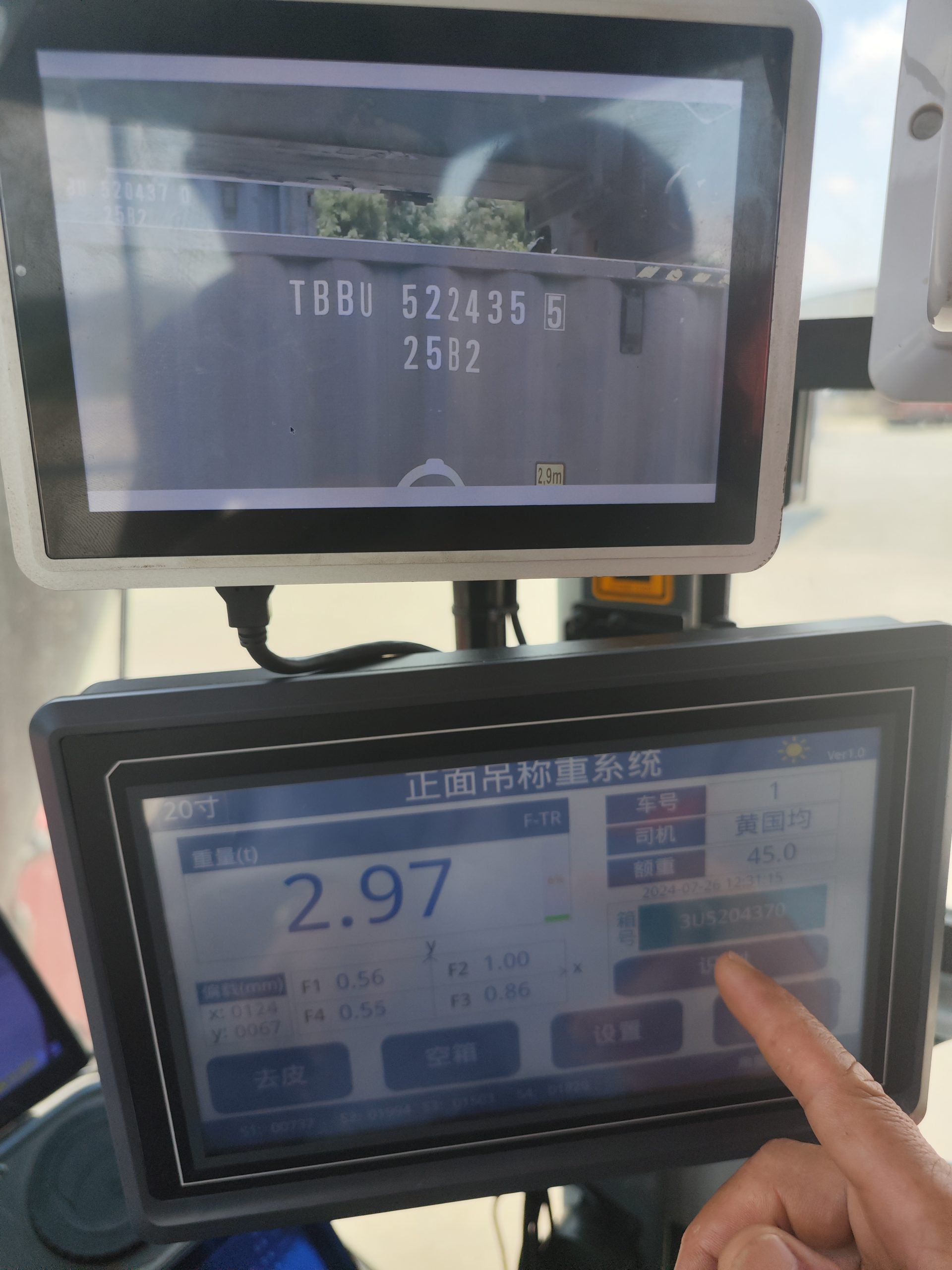

It also issues an alarm and outputs a control signal when preset thresholds are reached—including eccentric-load detection that warns before an unstable or off-center container lift can occur. Combined with optional container-number recognition and weight logging, it supports safer, smarter yard operation for terminals handling mixed and unbalanced loads.
Подходящие модели

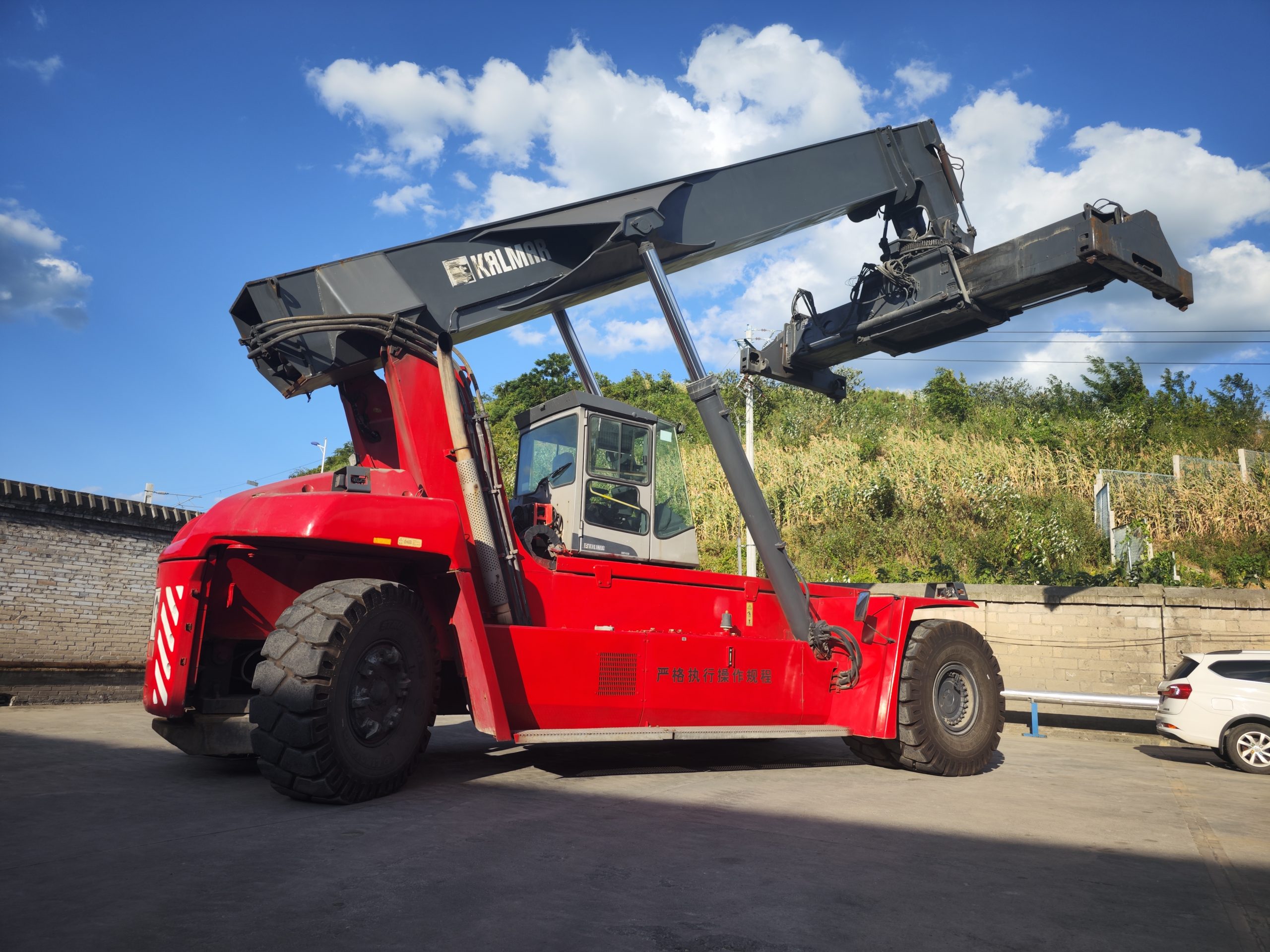

Container reach stackers and empty-container handlers with spreader lifting.
Основные особенности
- Дисплей веса в режиме реального времени
- Eccentric / bias-load prevention
- Radius and height display
- Предупреждение о росте и весе
- Overload data record and control output
Параметры системы
- Рабочее напряжение: 12–36 В постоянного тока
- Рабочая температура: от -20 ℃ до +70 ℃
- Температура хранения: от -20 ℃ до +70 ℃
- Системная ошибка: ±3%
- Погрешность отображения: ±5%
- Номинальная нагрузка релейного контакта: 220 В переменного тока, 3 А
- Уровень защиты: IP65;
Основные компоненты
- Length & angle sensor
- Alarm light

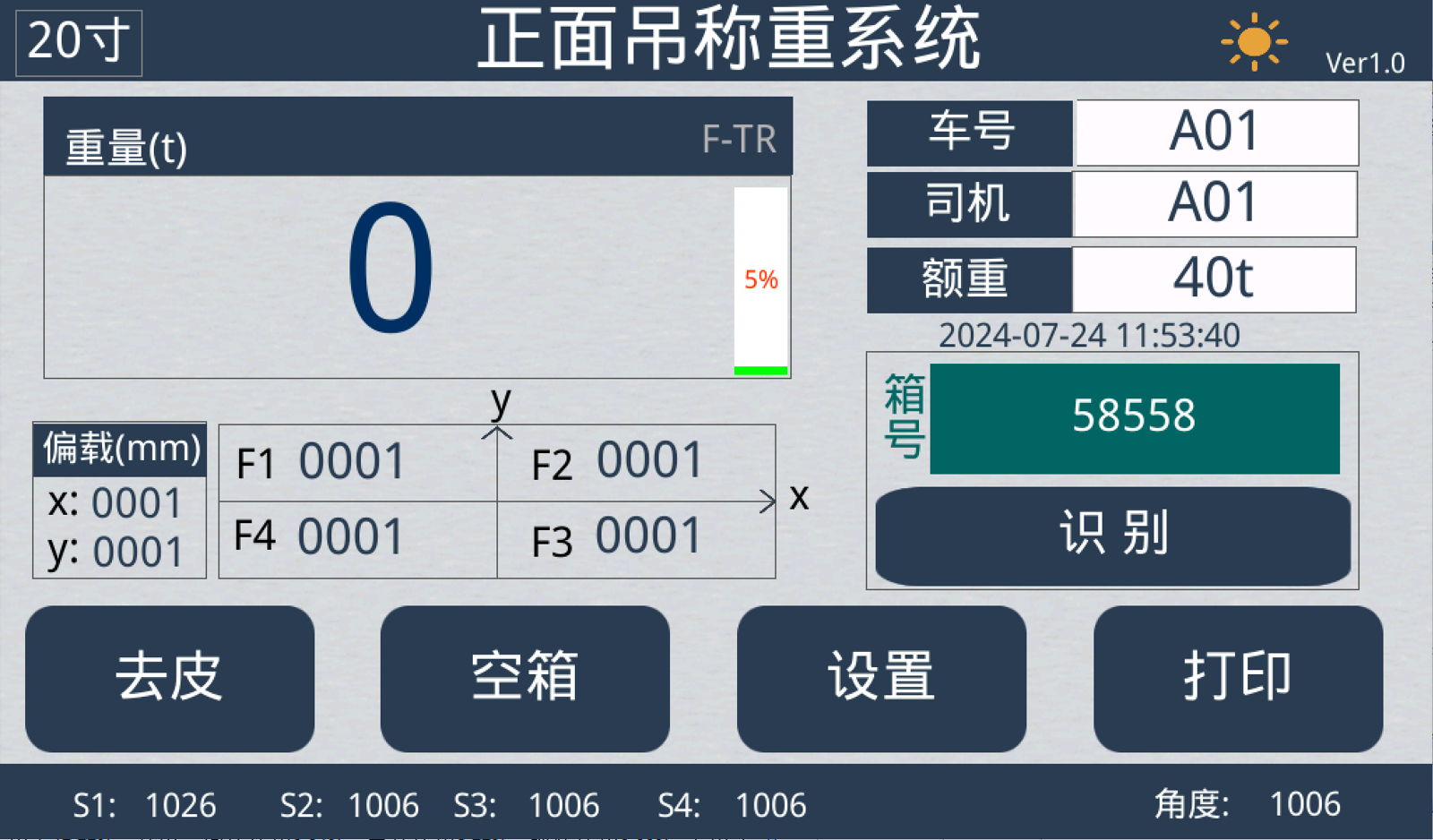

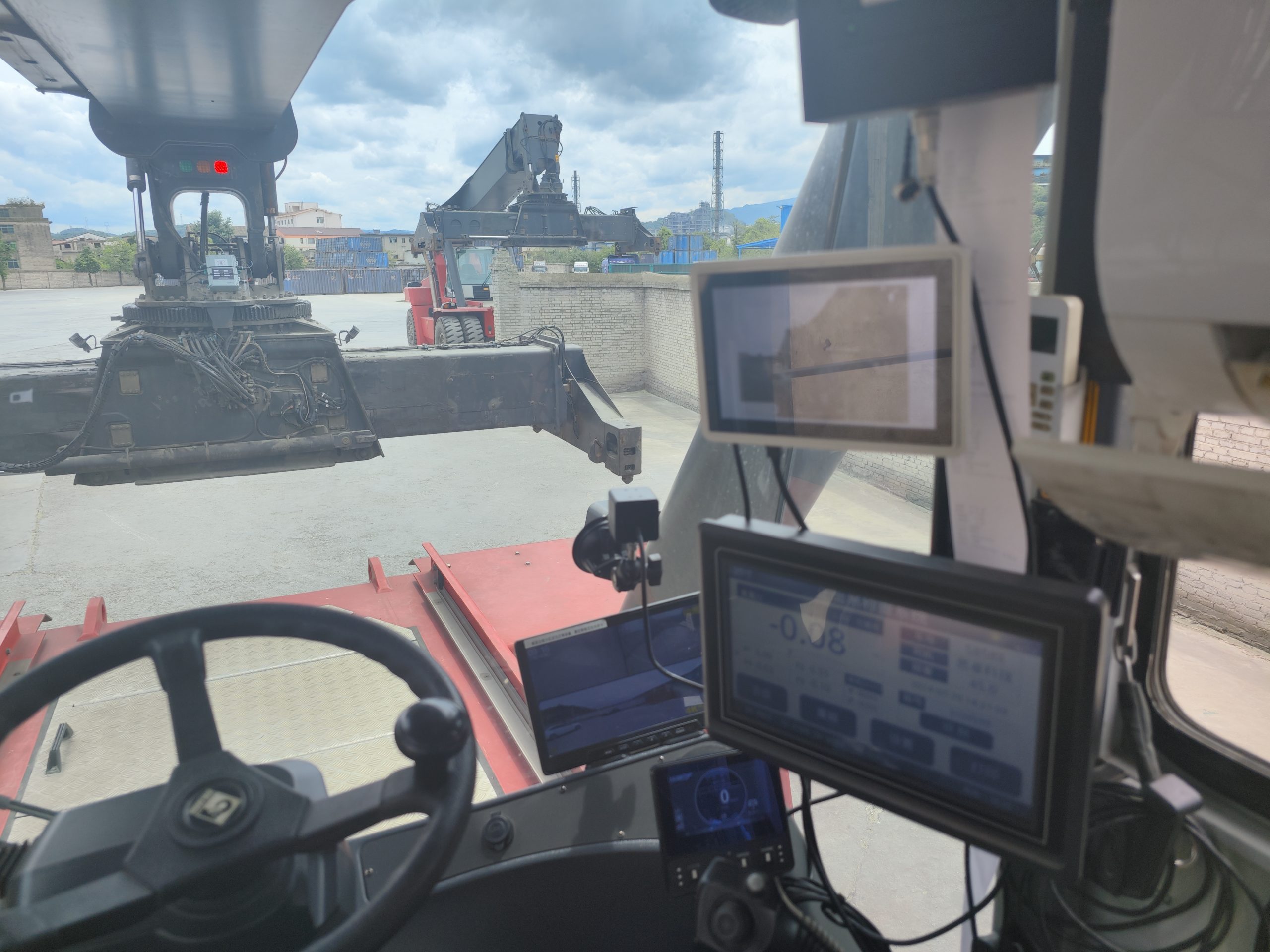

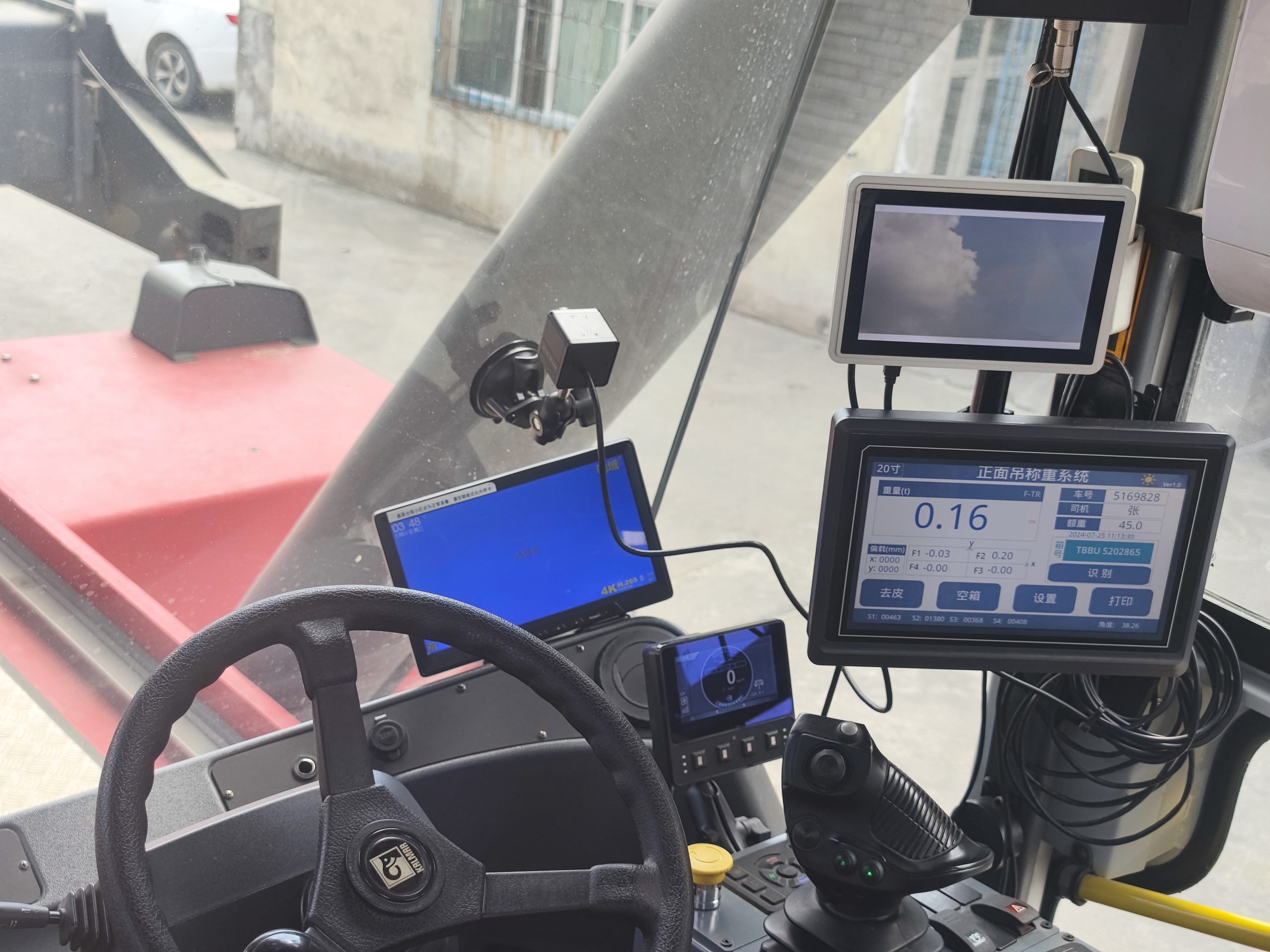

- Monitor (cabin display)

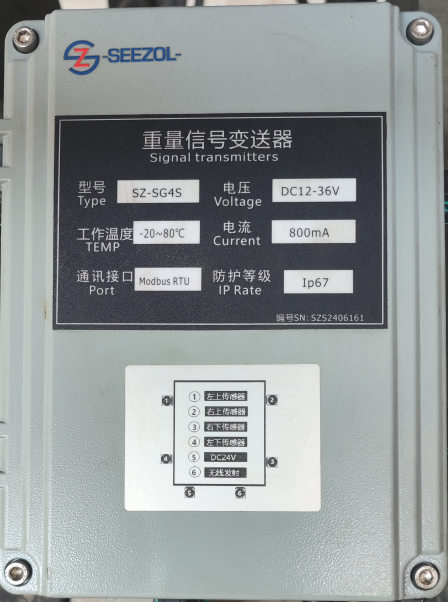

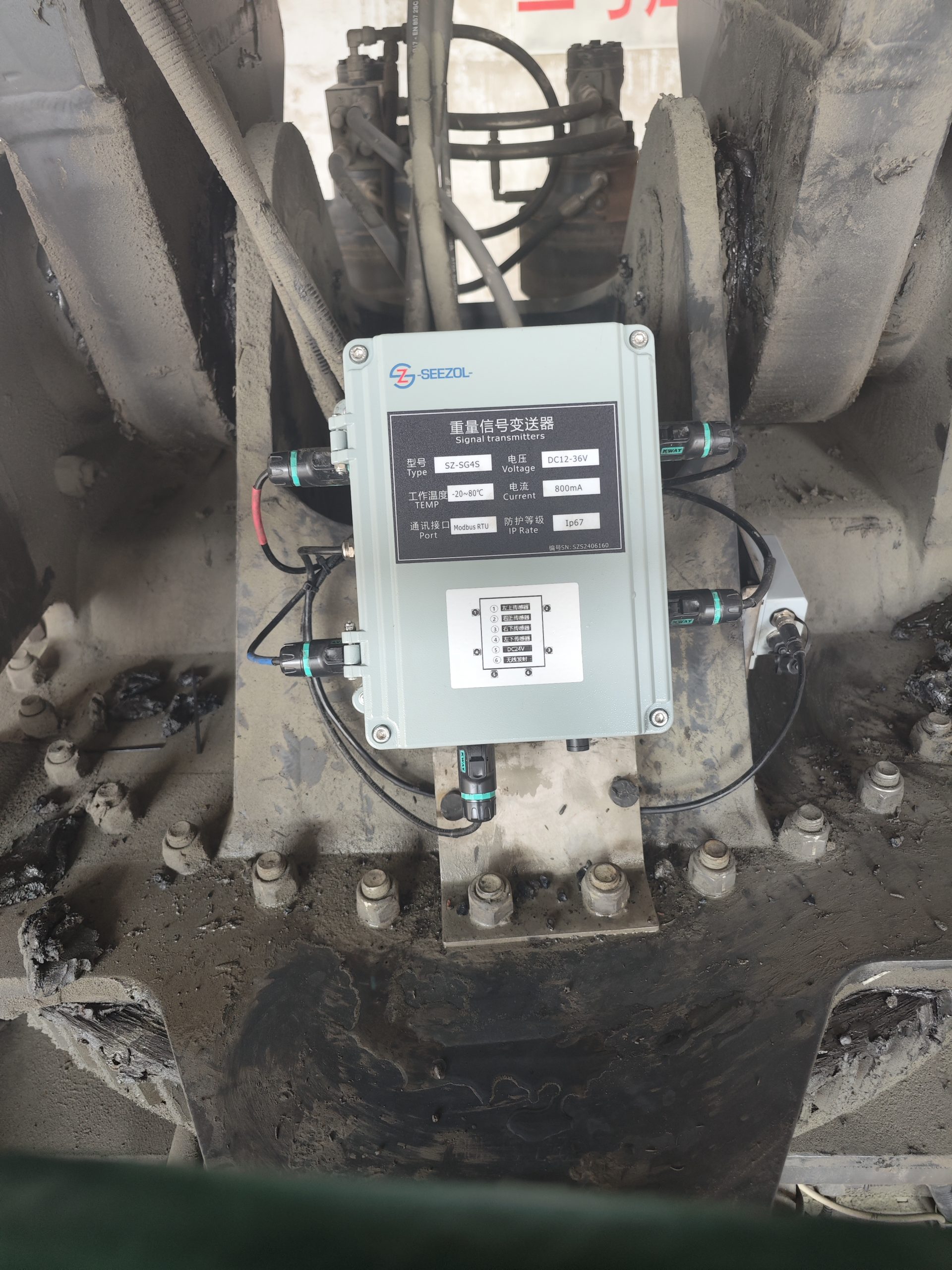

- Передатчик сигнала

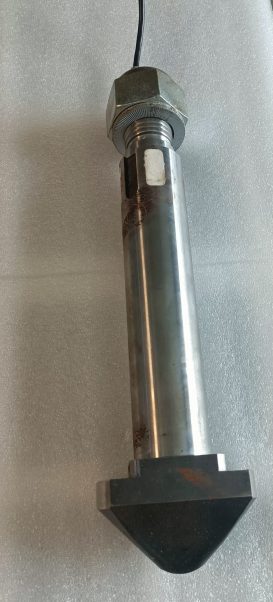

- Датчик давления
Пример применения

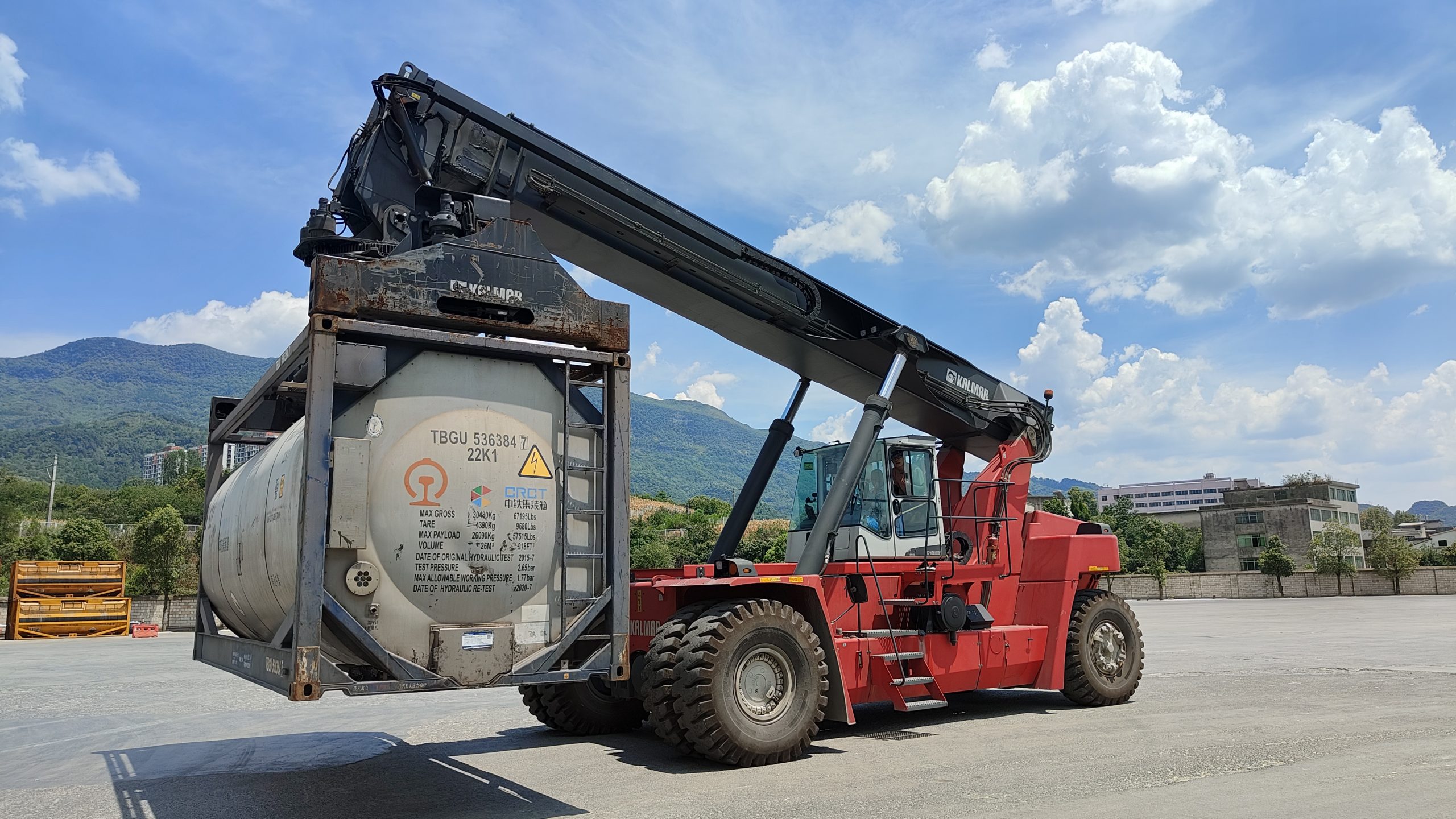

A mixed-cargo terminal adopted the SeeZol reachstacker indicator to flag off-center containers at the lift point, reducing spreader stress incidents and improving stack stability during high-density storage.
