SZ-AB100P Articulated Boom Crane LMI

Product Overview

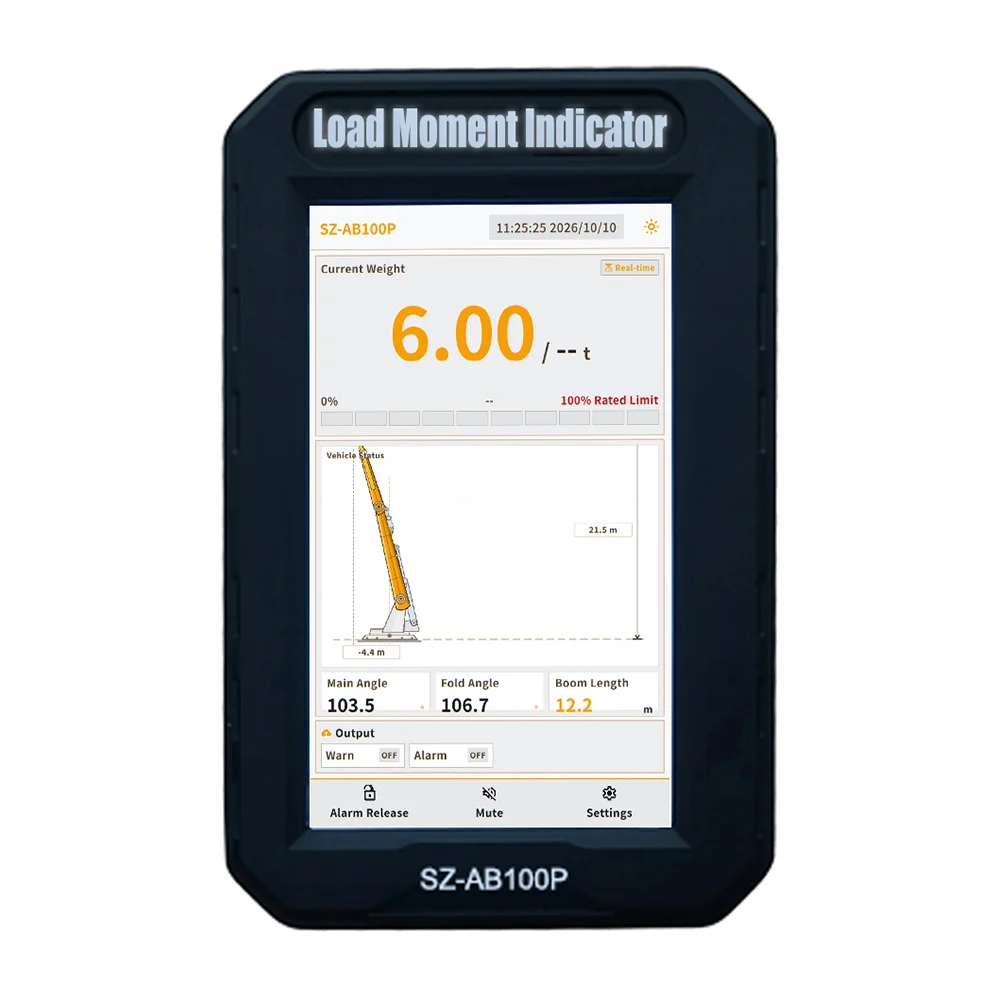

The SeeZol SZ-AB100P Articulated Boom Crane Load Moment Indicator (LMI) is an intelligent safety monitoring instrument that integrates measurement, control and micro-computer technology. It reflects boom angle, boom length, lifting weight and overload status on the cab display in real time, keeping the folding-boom crane within its safe operating envelope. Compared with the SZ-AB100, the SZ-AB100P features optimized software—revised angle calibration and weight-input methods—for higher data accuracy and stability. When the crane approaches or exceeds the allowable limit, the system triggers audible/visual alarms and sends relay outputs to cut dangerous motions (e.g. hoisting).

Applicable Models

● Articulated boom trucks / Truck-mounted folding boom cranes
● Lifting equipment featuring a folding boom that requires monitoring of the dual angles (main boom and folding boom) and boom length

Key Features

● Real-time display of current load / maximum allowable load at current position (dual-value display)
● Real-time load percentage bar graph (yellow by default; turns red when thresholds are exceeded)
● 2D vehicle attitude display showing height, working radius, boom/articulated arm angles, and boom length
● Audible and visual alarms + three-color indicator light + relay control output (cuts off hazardous movements when thresholds are exceeded)
● Alarm data logging (trigger/clear times, severity level, source, and values); data exportable via USB drive
● Day/night display mode switching
● System language in Chinese and English (other languages ​​customizable)
● Independently configurable percentage thresholds for pre-alarms and alarms

System Parameters

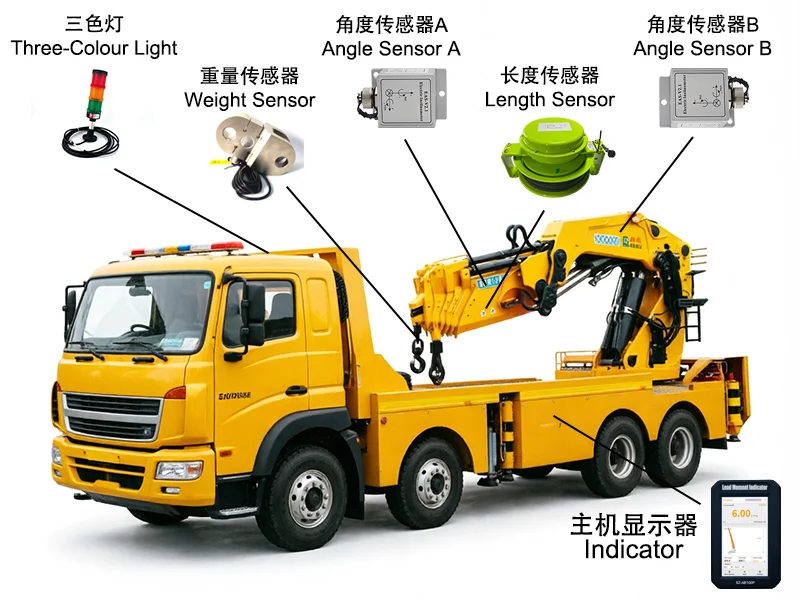

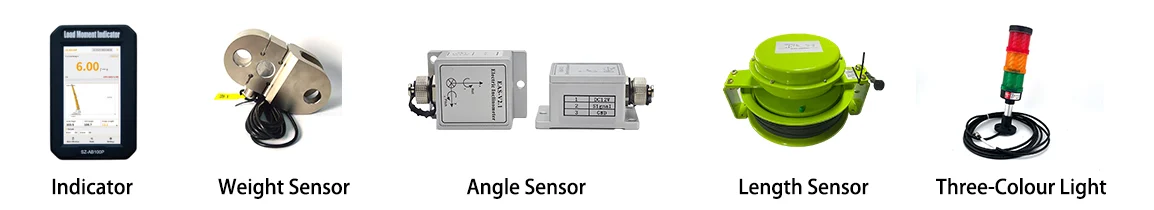

Main Components

• Indicator

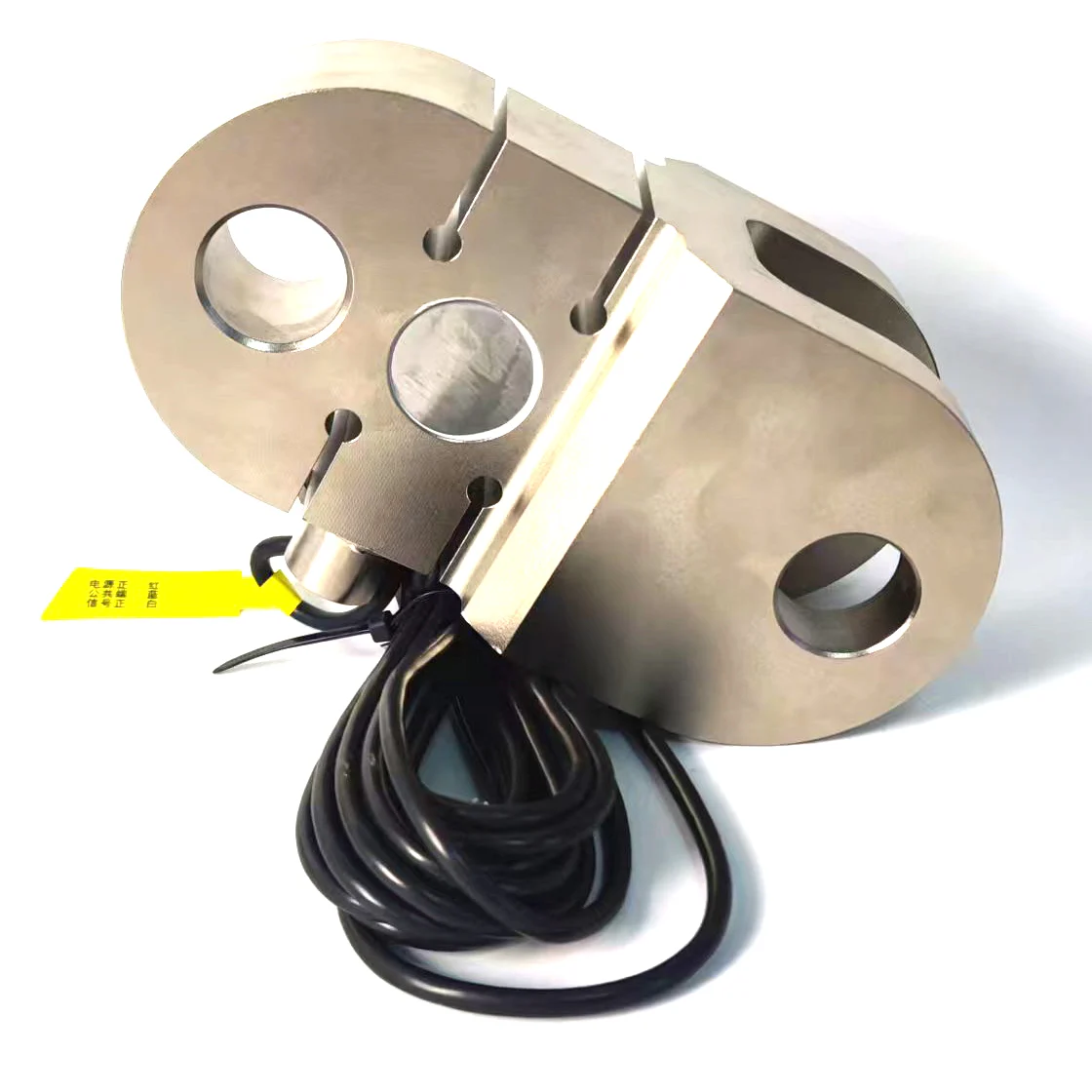

• Weight Sensor
• Angle Sensor
• Length Sensor
• Three-Colour Light

Application Case

A forestry operator deployed SeeZol articulated-boom LMIs on truck-mounted cranes, preventing overload during log handling where boom geometry changes constantly.
