SZ-TS01 Trigger Switch
Product Overview
The SeeZol magnetic proximity trigger sensor uses magnetic field changes to detect the proximity of an object (especially magnetic or conductive materials) and automatically triggers a switch signal. Its core advantage lies in non-contact detection, making it adaptable to harsh environments such as dust and moisture. It is widely used in industrial automation and safety systems.
Key Features
- Non-contact detection, no wear, long life (over 10 million operations)
- Unaffected by dust, oil, and light; adapts to harsh conditions
- Fast response (milliseconds), suitable for high-speed moving objects
- Detects magnetic and non-magnetic metals (some models detect non-metals with a magnet)
Parameters
- Sensing distance: 25 – 120 mm
- Adjustment range: 25 – 120 mm
- Response time: 125 µs
- Switching frequency: 3300 Hz
- Output types: NPN normally open / light on, PNP normally closed / dark on
- Operating voltage: 10 – 30V DC
- Protection rating: IP67
- Temperature range: -40℃ ~ +70℃
Function

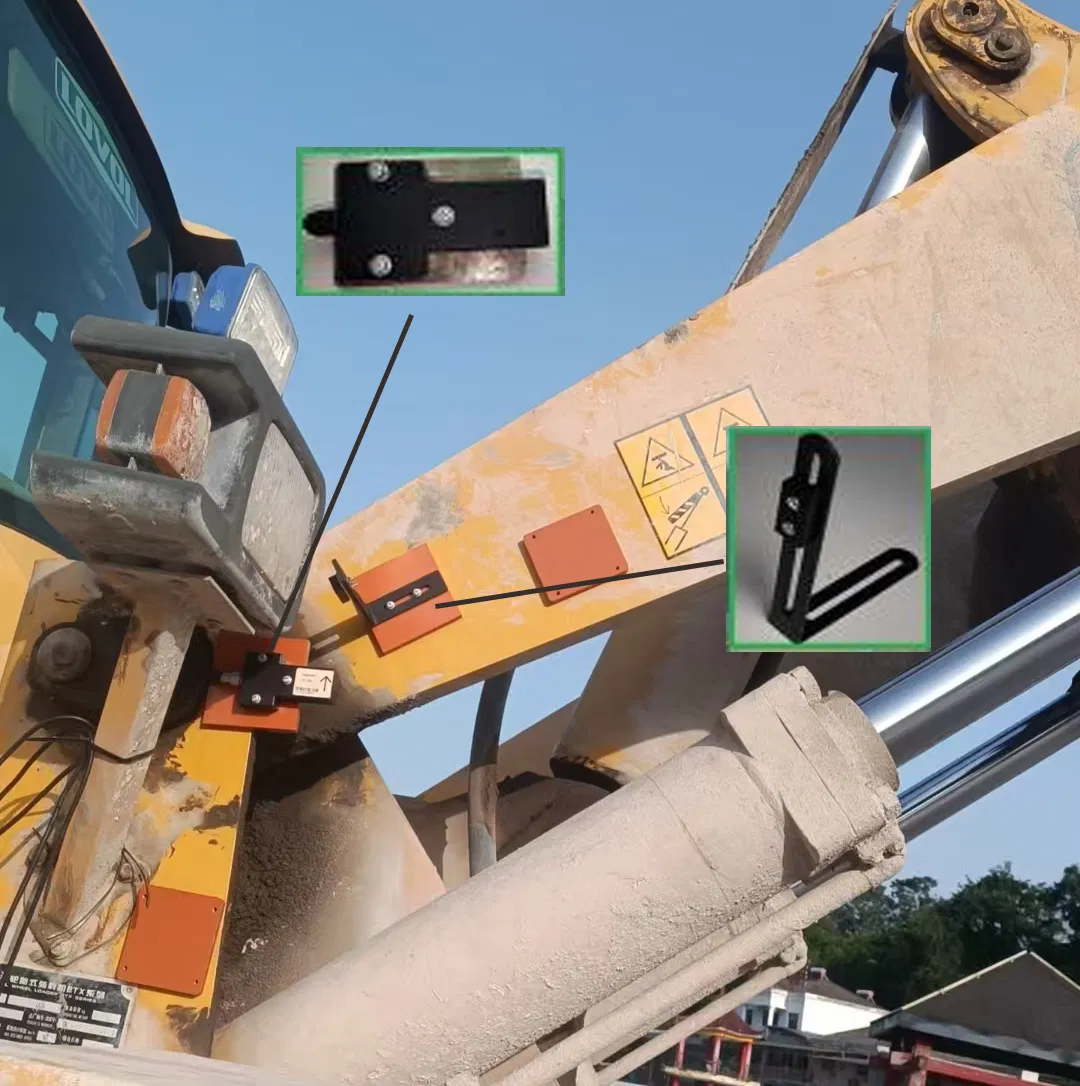

Triggers weight-data recording based on lift / hopper position in weighing scales and load indicators.
Cases

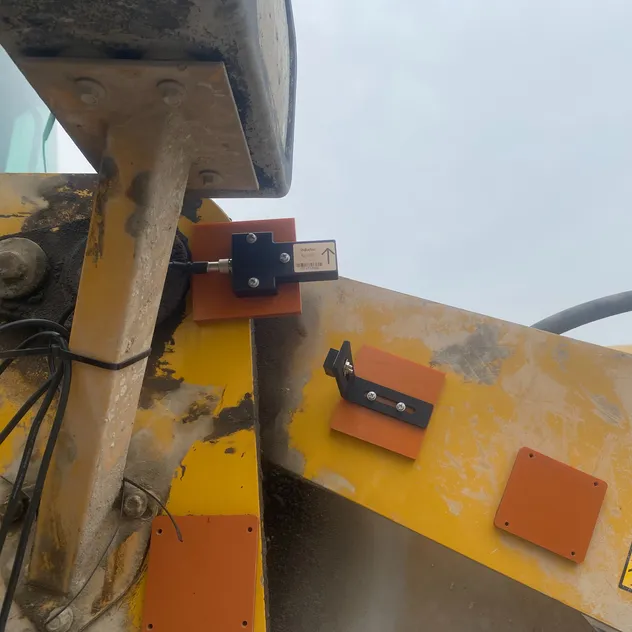

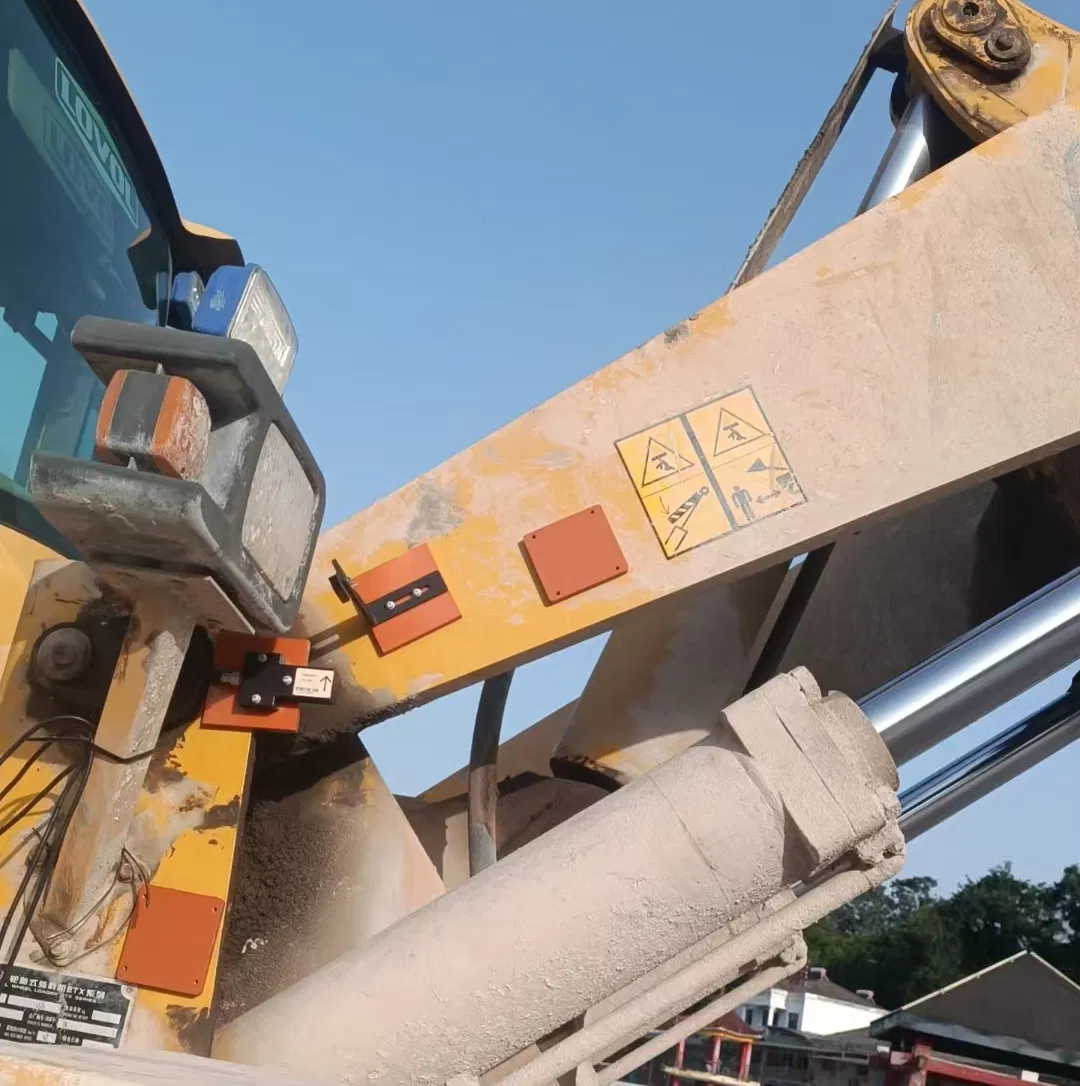

Supplied as OEM trigger sensors for weighing scales and load indicators.
