Product introduction

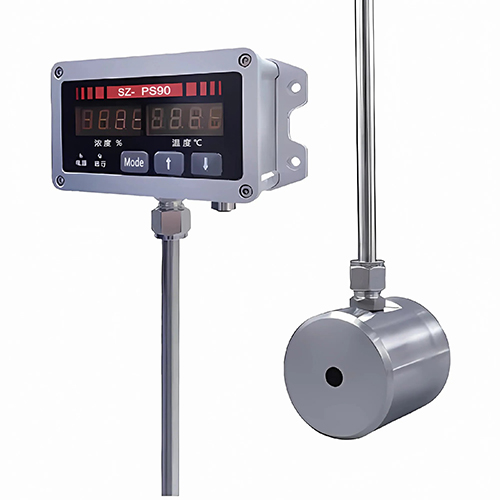

SZ-PS series immersed liquid concentrationsensor is a high precision optical instrumentbased on the principle of light refraction andtotal reflection to measure liquid concentration,suitable for the temperature below 0°~80° C ofall kinds of solution concentration detection.Usually installed in containers, pools, tanks andother open applications. Product integratedmeasurement, display and switching controlsignal output, easy to install, easy to maintain.

Parameters

Key Technical Features

1.Real-time and Continuous Monitoring

Installed directly in process lines (e.g., pipelines, reactors) without manual sampling, enabling 24/7 continuous monitoring with sub-second response.

2.High Precision and Stability

Incorporates technologies like temperature compensation and automatic calibration (e.g., periodic standard solution injection) to reduce environmental interference (temperature, pressure, impurities).

3.Intelligence and Integration

Built-in microprocessors support data storage, trend analysis, and seamless integration with PLC/DCS systems via 4-20mA current signals or RS485 interfaces for automated control.

4.Durable Design

Probe materials are typically stainless steel, titanium alloy, or PTFE, offering strong corrosion resistance for high-temperature, high-pressure, and highly corrosive environments (e.g., chemical reactions, wastewater treatment).

Typical Application Scenarios
